Body - Convertible Top Cover Snap is Broken

03-014

February 7, 2006

Applies To:
2000-06 S2000 - ALL

Convertible Top Cover Snap Is Broken

(Supersedes 03-014, dated June 1, 2004, to update the information marked with the black bars and asterisks)

SYMPTOM

One or more of the snaps that secure the convertible top cover are broken.

PROBABLE CAUSE

*Mismanufactured male pins can damage the female snap fingers when attaching the convertible top cover to the vehicle.*

CORRECTIVE ACTION

*Replace all of the male pins with updated pins. Inspect the female snaps on the convertible top cover. If necessary, replace the female snaps with new snaps.

Instruct customers that, when they are attaching the convertible top cover to the vehicle, they should press on both sides of the snap to attach it to the pin. Do not push or pull the snap button when installing the snap.*

PARTS INFORMATION

Short Snap (Female):

P/N 90316-52A-000, H/C 6245336

Long Snap (Female):

P/N 9031 8-52A-000, H/C 6385769

*Male Pin:

P/N 90317-52A-003, H/C 6245344*

REQUIRED MATERIALS

Hondalock 2 (one bottle repairs 100 vehicles):

P/N 08713-0002, H/C 2963833

*TOOL INFORMATION

KTC Trim Tool Set: T/N SOJATP2014

To order, call the Honda Tool and Equipment Program.*

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Operation Number: 814136

Flat Rate Time: 0.7 hour

Failed Part: P/N 90316-52A-000
H/C 6245336

Defect Code: 01801

Symptom Code: 00101

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

Pin Replacement

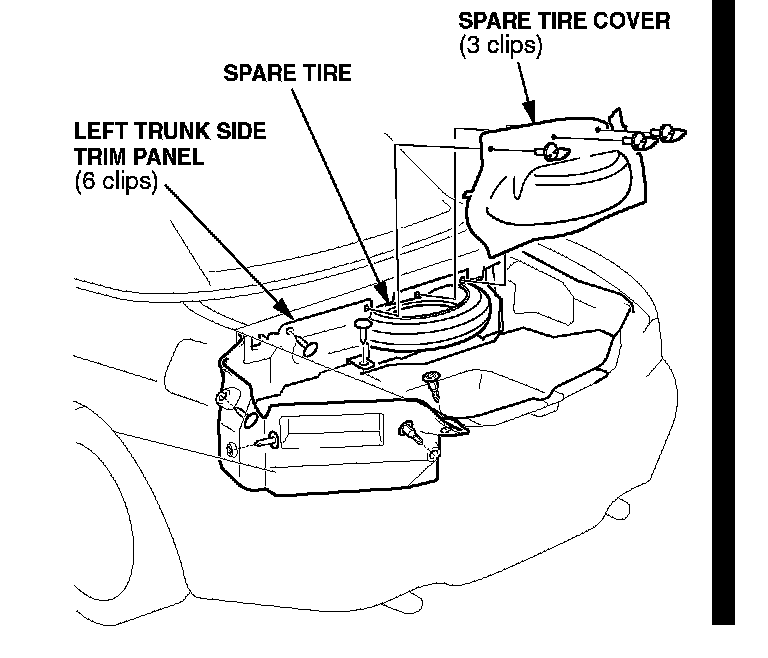

1. Empty the trunk. Remove the spare tire cover, the left side trunk side trim panel, and the spare tire.





2. Reach forward and up through the trunk, to the back side of the roll bar upper trim. Remove the nuts holding the male pins, and replace the male pins on the trim.

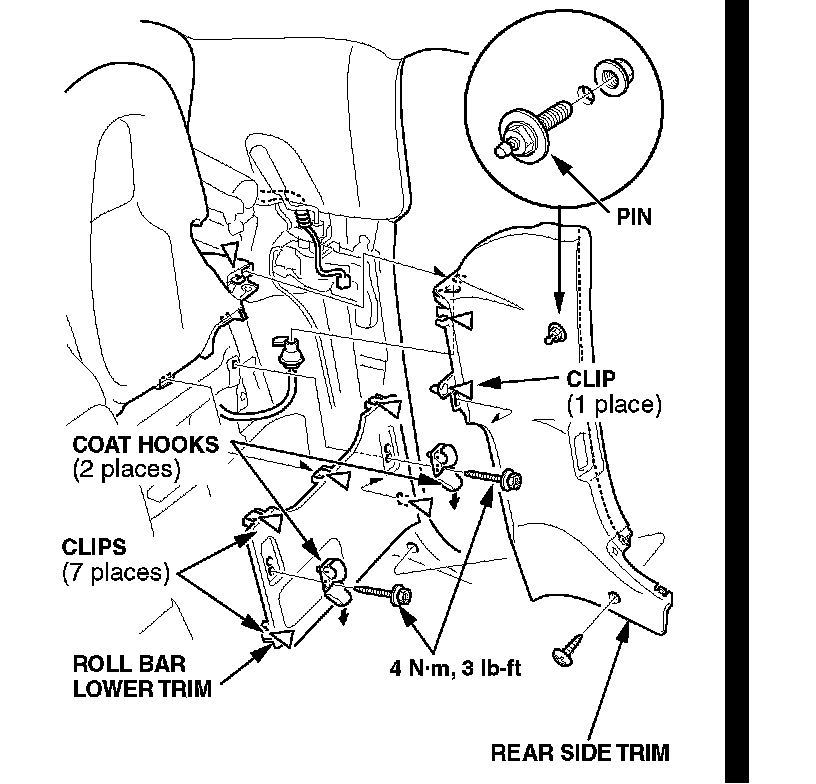

3. Remove the four screws securing the coat hooks then remove the roll bar lower trim from behind both seats.

4. Remove the lower screw from each rear side trim piece next to the seats and, using a puller, remove the clip.

5. Remove both rear side trim pieces. Replace the single male pin on each rear side trim piece.

6. Reinstall all parts in the reverse order of removal.

Snap Replacement

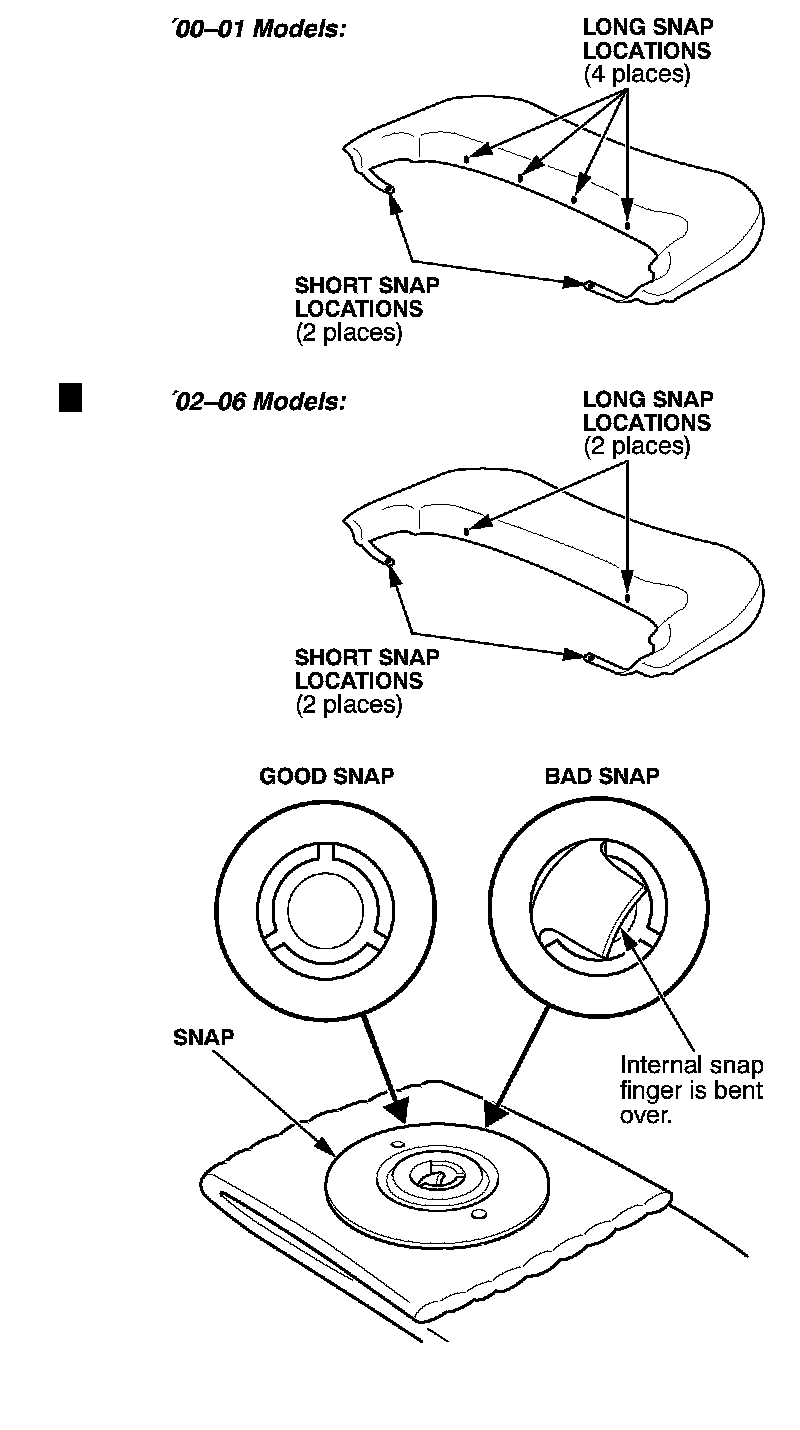

1. Inspect the inside of each snap to determine which ones need replacing.





2. Use snap-ring pliers to remove the damaged snap(s) from the convertible top cover.

3. Apply Hondalock 2 to the threads, and then install the new snap(s) to the convertible top cover.





4. Inform the customer of the proper way to use the snaps.
