P2185

DTC P2185: ECT Sensor 2 Circuit High Voltage (2005 model)

1. Turn the ignition switch ON (II).
2. Check the ECT SENSOR 2 in the DATA LIST with the HDS.

Is about -40 °F (-40 °C) or less or 4.90 V or higher indicated?

YES - Go to step 3.

NO - Intermittent failure system is OK at this time. Check for poor connections or loose terminals at the ECT sensor 2 and the ECM/PCM.

3. Turn the ignition switch OFF.
4. Disconnect the ECT sensor 2 2P connector.




5. Connect the ECT sensor 2 2P connector terminals No.1 and No.2 with a jumper wire.
6. Turn the ignition switch ON (II).
7. Check the ECT SENSOR 2 in the DATA LIST with the HDS.

Is about -40 °F (-40 °C) or less, or 4.90 V or higher indicated?

YES - Go to step 8.

NO - Go to step 18.

8. Turn the ignition switch OFF.
9. Remove the jumper wire from the ECT sensor 2 2P connector.
10. Turn the ignition switch ON (II).

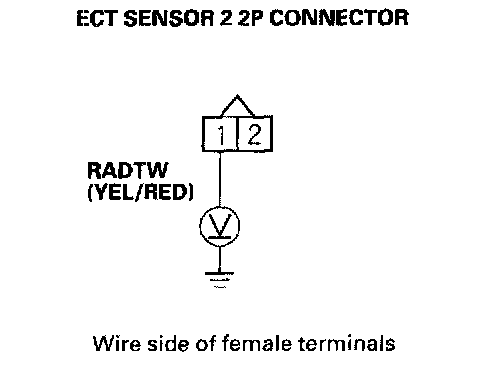

11. Measure voltage between the ECT sensor 2 2P connector terminal No.1 and body ground.

Is there about 5 V?

YES - Go to step 12.

NO - Go to step 17.

12. Turn the ignition switch OFF.
13. Jump the SCS line with the HDS.
14. Disconnect ECM/PCM connector E (31P).

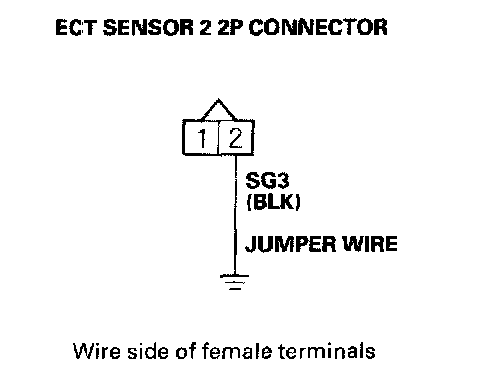

15. Connect the ECT sensor 2 2P connector terminal No.2 to body ground with a jumper wire.

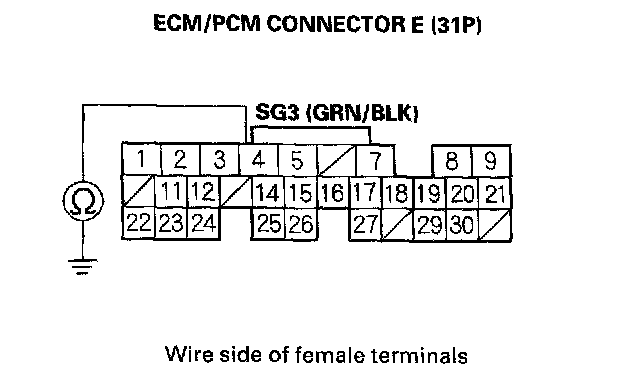

16. Check for continuity between ECM/PCM connector terminal E4 and body ground.

Is there continuity?

YES - Go to step 25.

NO - Repair open in the wire between the ECM/PCM (E4) and ECT sensor 2, then go to step 20.

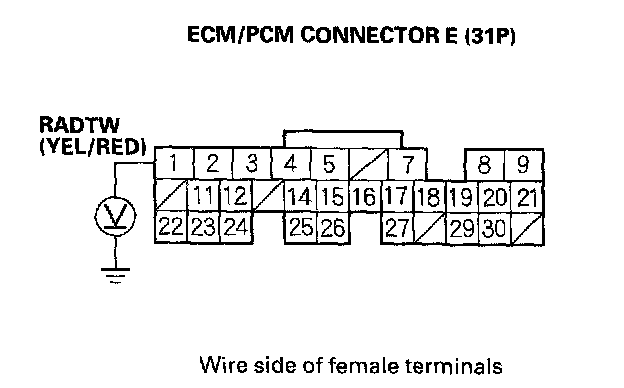

17. Measure voltage between ECM/PCM connector terminal E1 and body ground.

Is there about 5 V?

YES - Repair open in the wire between the ECM/PCM (E1) and the ECT sensor 2, then go to step 20.

NO - Go to step 25.

18. Turn the ignition switch OFF.
19. Replace the ECT sensor 2.
20. Reconnect all connectors.
21. Turn the ignition switch ON (II).
22. Reset the ECM/PCM with the HDS.
23. Do the ECM/PCM idle learn procedure. Programming and Relearning
24. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P2185 is indicated, check for poor connections or loose terminals at the ECT sensor 2 and the ECM/PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - Troubleshooting is complete.

25. Update the ECM/PCM if it does not have the latest software, or substitute a known-good ECM/PCM.
26. Check for Temporary DTCs or DTCs with the HDS

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P2185 is indicated, check for poor connections or loose terminals at the ECT sensor 2 and the ECM/PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted, replace the original ECM/PCM.
