Grille: Service and Repair
Front Grille ReplacementSpecial Tools Required
KTC trim tool set SOJATP2014
2-door
NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Remove the front bumper

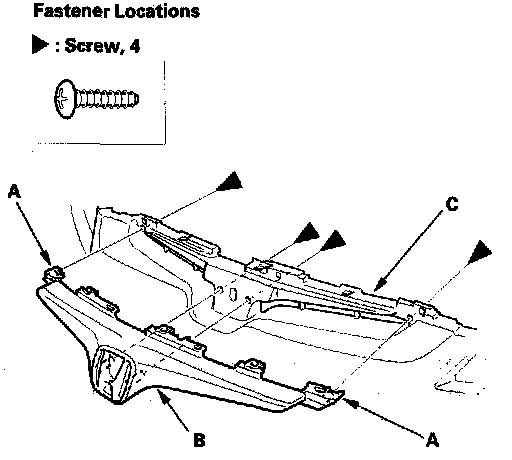

2. '03-05 models: Remove the screws and release the hooks (A), and remove the front grille (B) from the front bumper (C) by pulling it out. Take care not to scratch the front bumper.

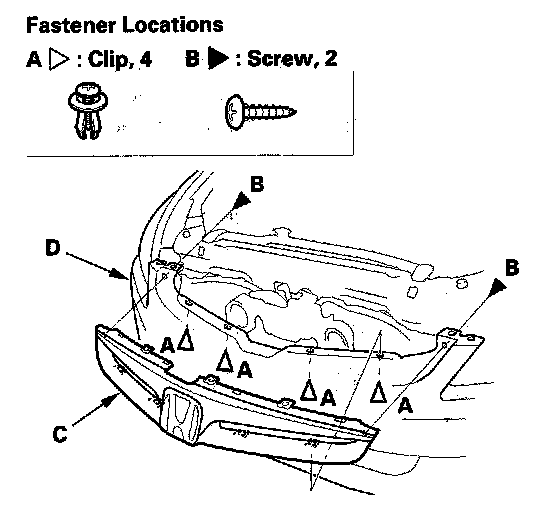

3. '06 model: Remove the clips (A) and screws (B), and remove the front grille (C) from the front bumper (D) by pulling it out. Take care not to scratch the front bumper.
4. Install the grille in the reverse order of removal.
Special Tools Required
KTC trim tool set SOJATP2014
4-door
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the front bulkhead cover and front grille.

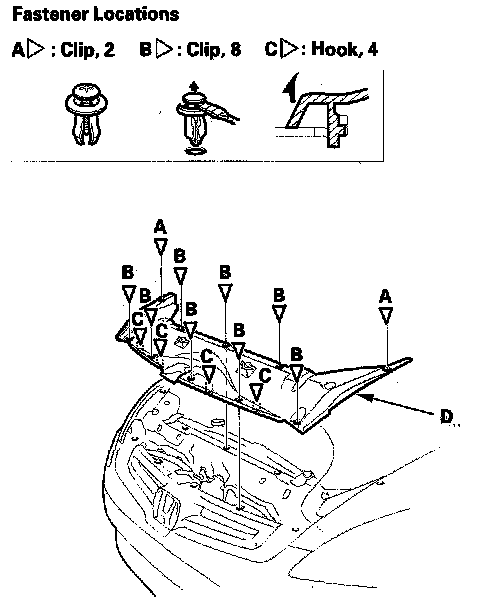

1. Remove the clips (A, B) and detach the hooks (C), then remove the front bulkhead cover (D).

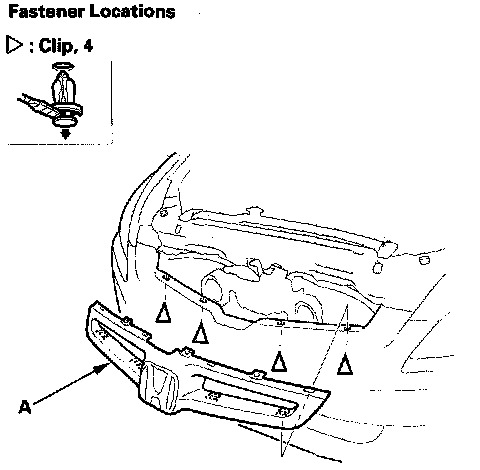

2. '03-05 models: Remove the clips, then remove the front grille (A). Take care not to drop the clips inside the front bumper.

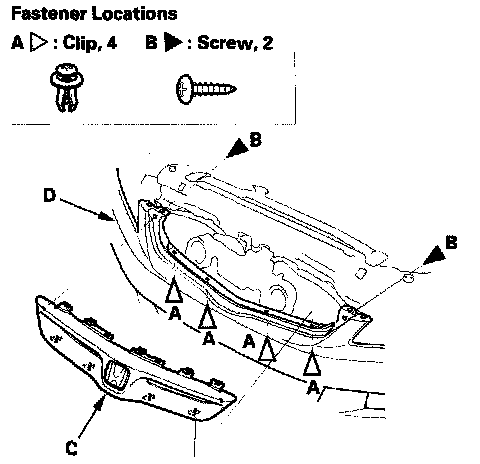

3. '06 model: Remove the clips (A) and screws (B), then remove the front grille (C). Take care not to drop the clips and screws inside the front bumper (D).

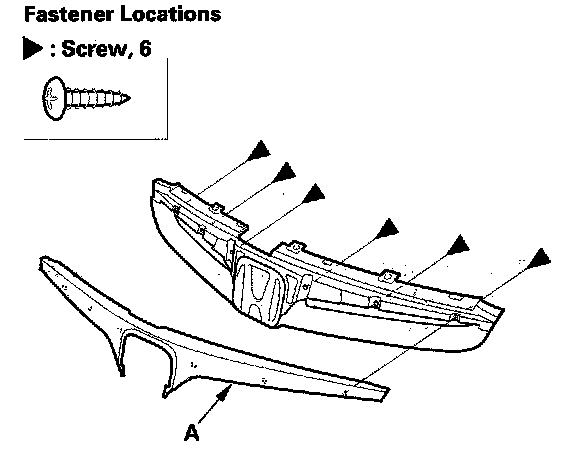

4. '06 model: If necessary, remove the screws, then remove the upper grille molding (A) from the front grille.
5. Install the front grille in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new ones.
- Push the front hook portions into place securely.
