Symptom Related Diagnostic Procedures

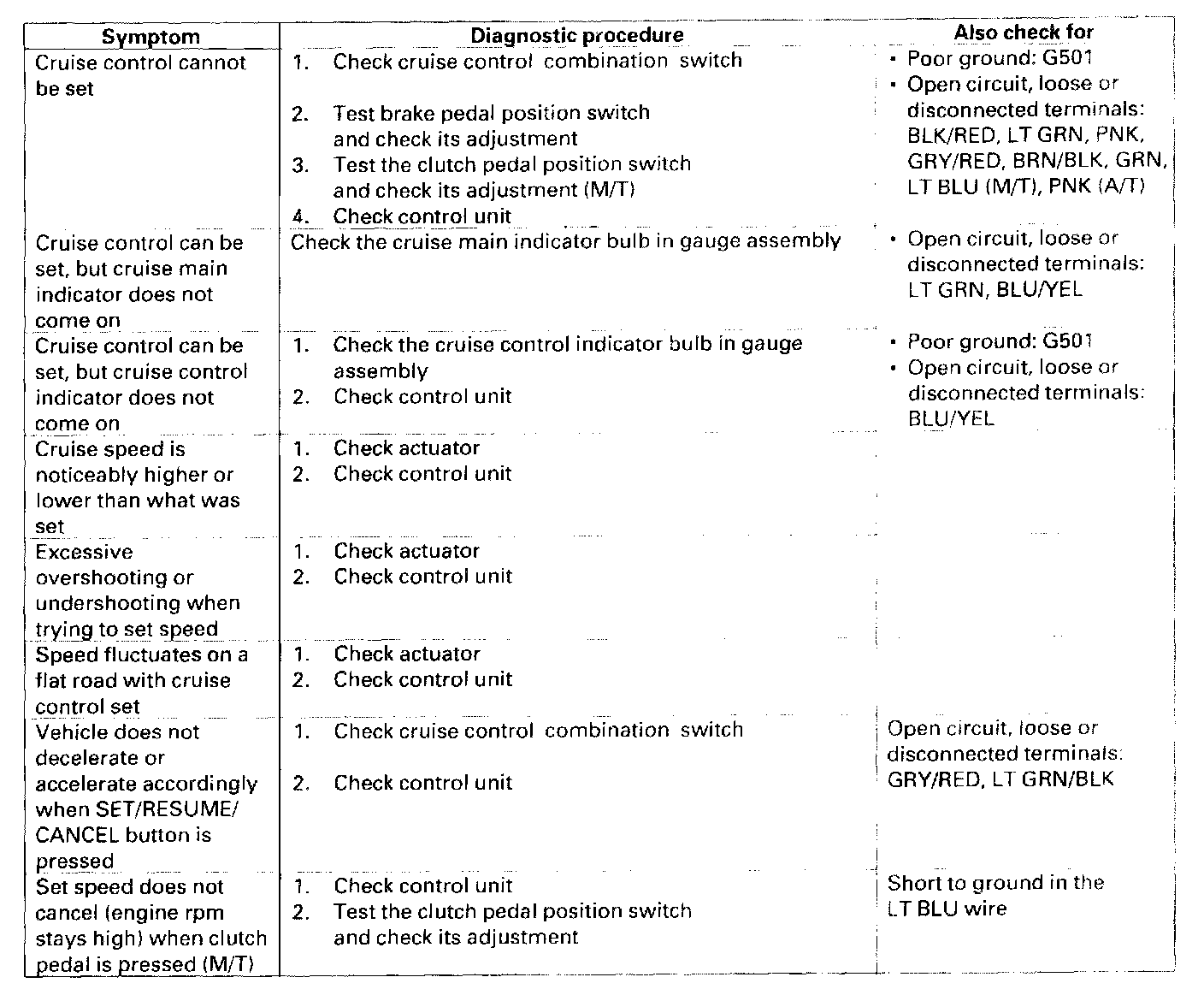

Symptom Troubleshooting Index

NOTE:
- The numbers in the table show the troubleshooting sequence.
- Before troubleshooting.
- check the No 18 (15 A) fuse in the under-hood fuse relay box, and the No.13 (20 A) fuse in the under-dash fuse relay box.
- check that the horn sounds.
- check the speedometer to see if it works properly.
