Home >> Honda >> 2005 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Relay

Daytime Running Lamp Relay

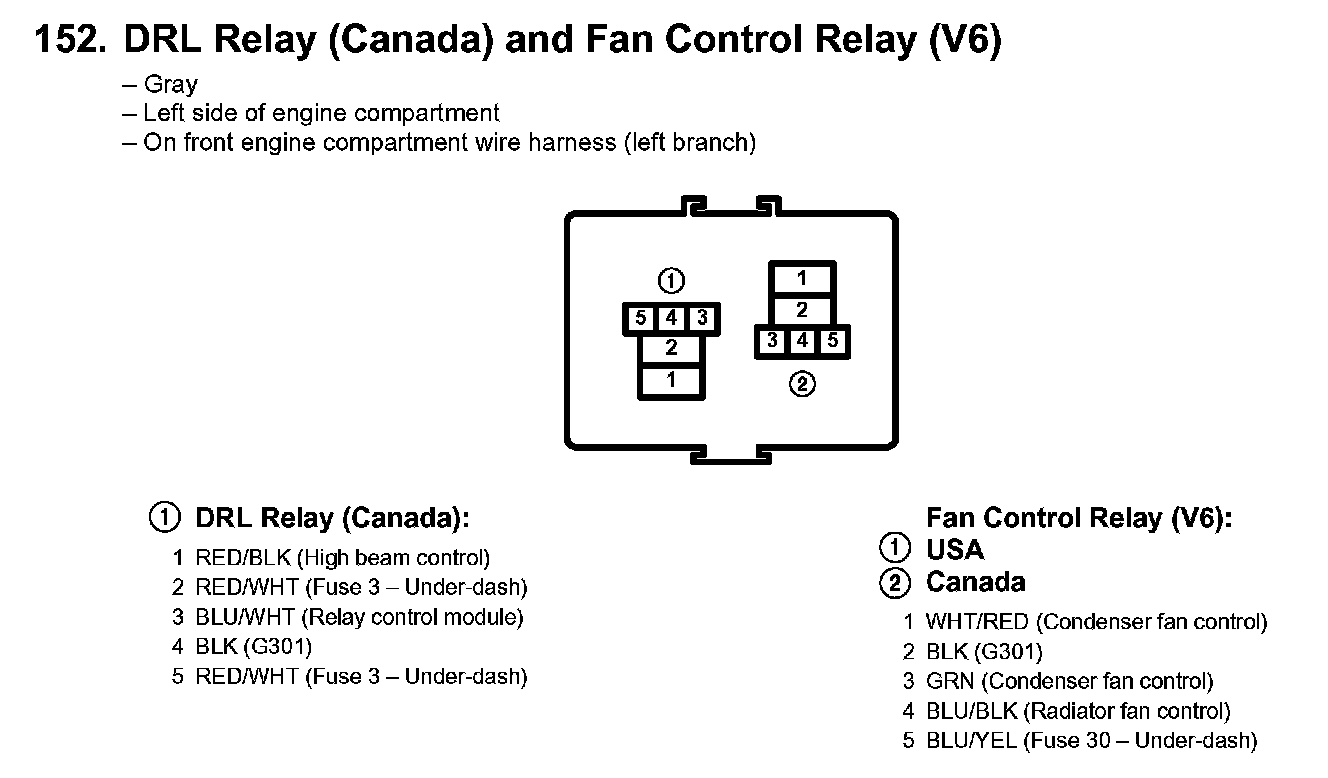

152. DRL Relay (Canada) And Fan Control Relay (V6):
