Front Door Window Motor
Front Door Window Motor
165. Power Window Motor; Driver's:

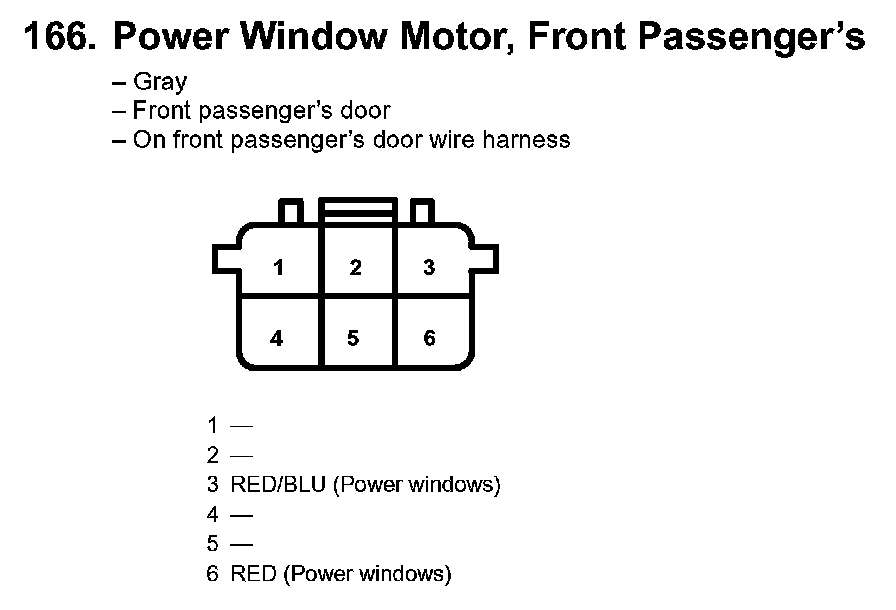

166. Power Window Motor, Front Passenger's:
