Home
>>
Honda
>>
2005
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

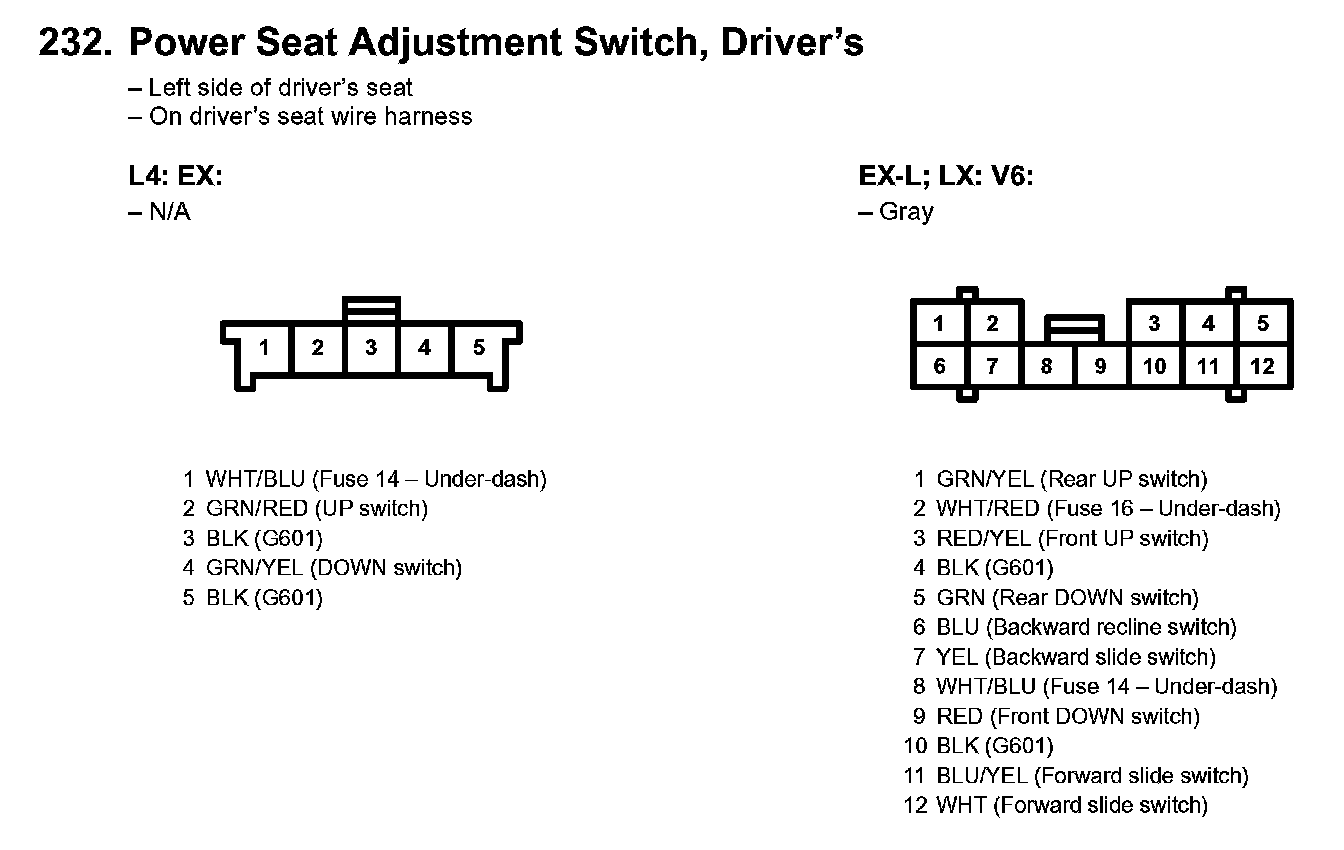

232. Power Seat Adjustment Switch, Driver's:
