Rear Door Window Motor
Rear Door Window Motor
167. Power Window Motor, Left Rear (4-door):

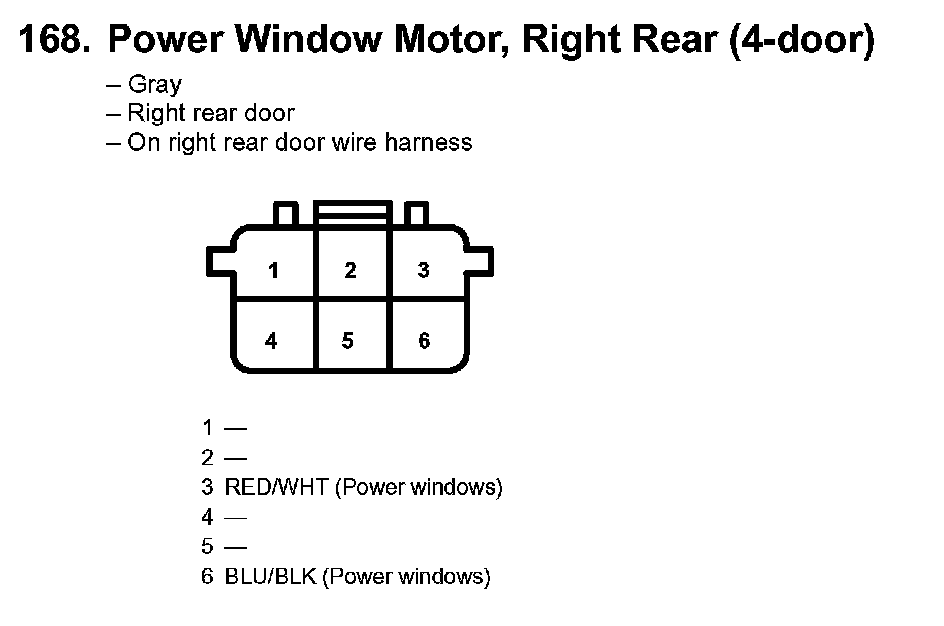

168. Power Window Motor, Right Rear (4-door):
