Seat Belt Tensioner
Seat Belt Tensioner
143. Seat Belt Tensioner, Driver's:

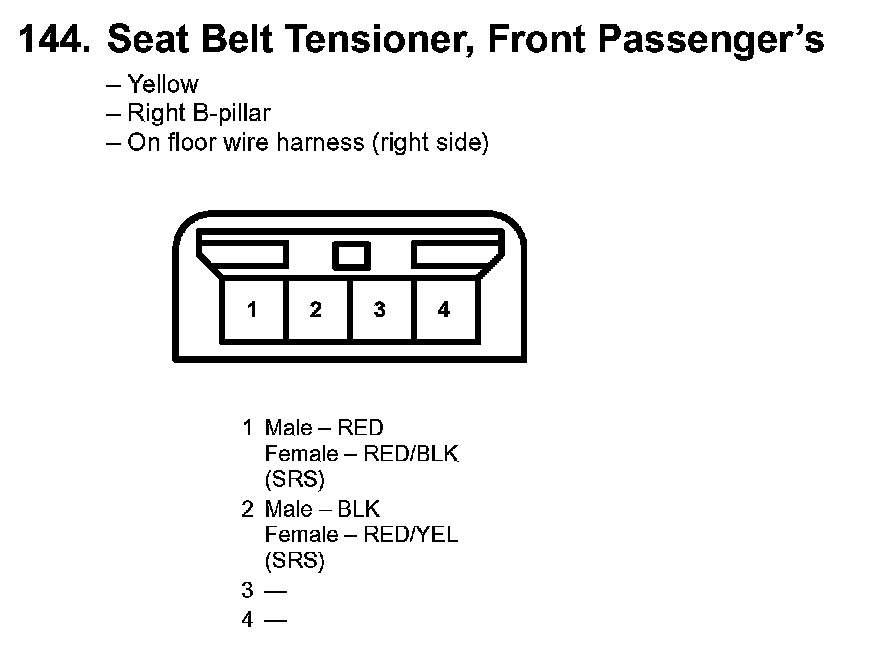

144. Seat Belt Tensioner, Front Passenger's:
