Home >> Honda >> 2005 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Interlock Solenoid

Shift Interlock Solenoid

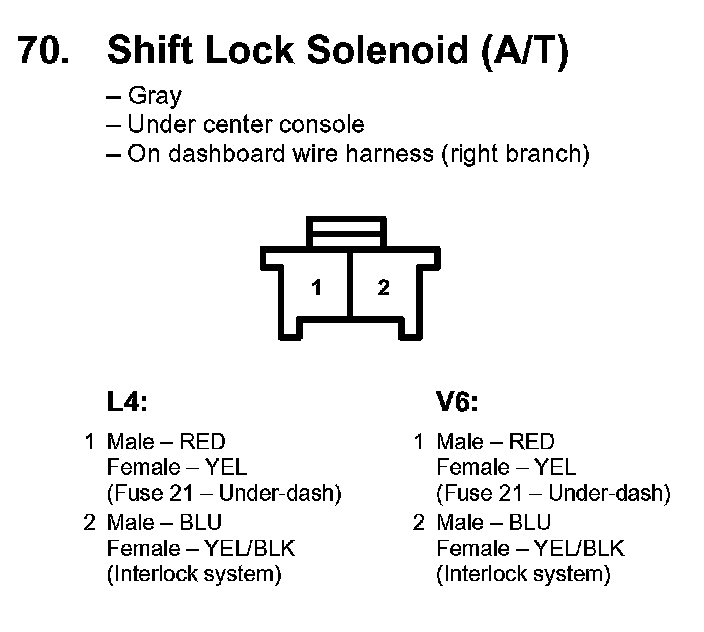

70. Shift Lock Solenoid (A/T):
