Home >> Honda >> 2005 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module

Sunroof / Moonroof Module

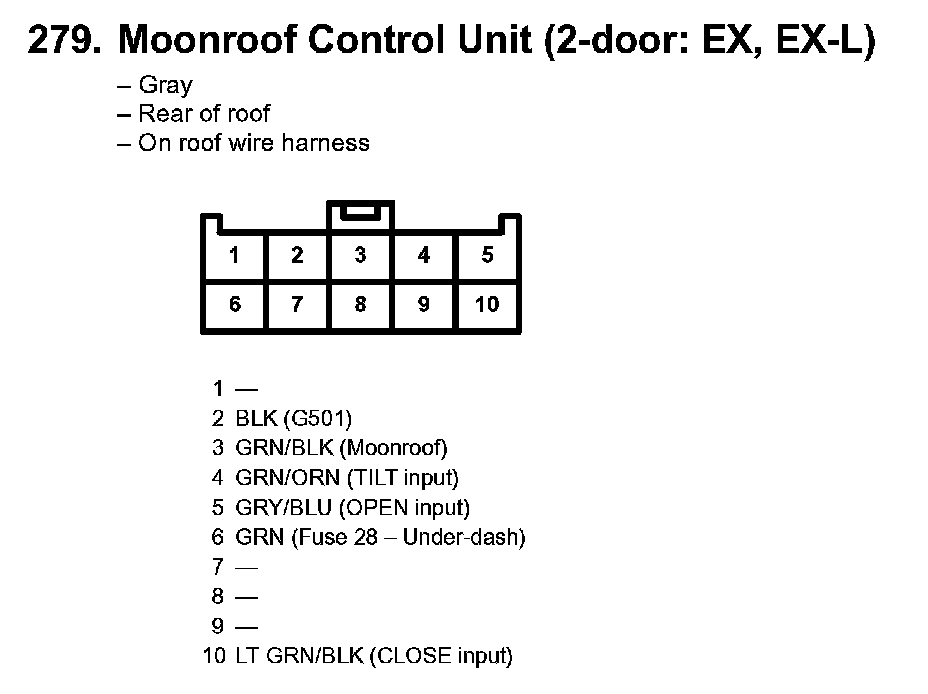

279. Moonroof Control Unit (2-door: EX, EX-L):
