Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

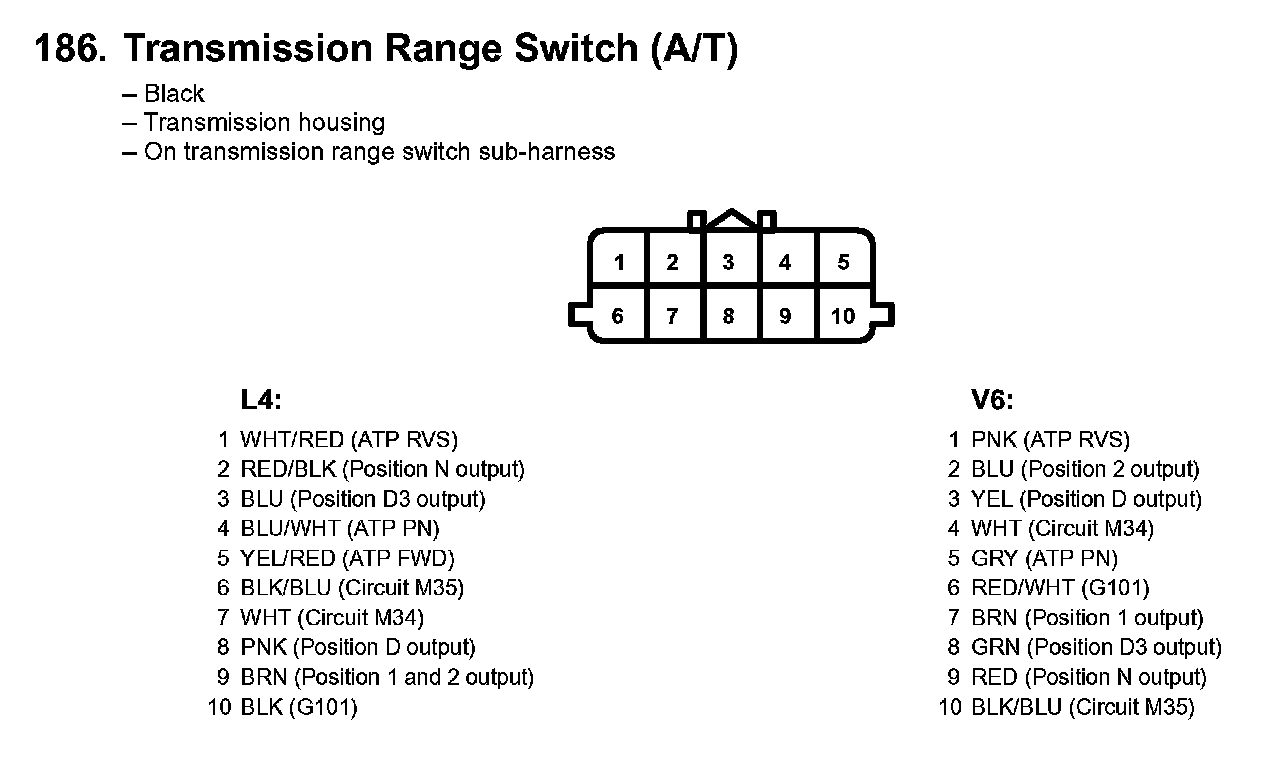

186. Transmission Range Switch (A/T):
