Wheel Speed Sensor
Wheel Speed Sensor

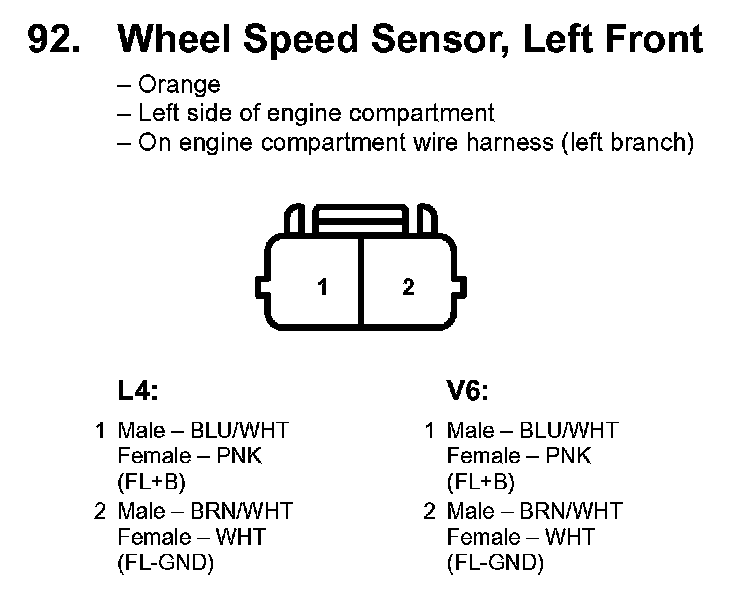

92. Wheel Speed Sensor, Left Front:
93. Wheel Speed Sensor, Left Rear:

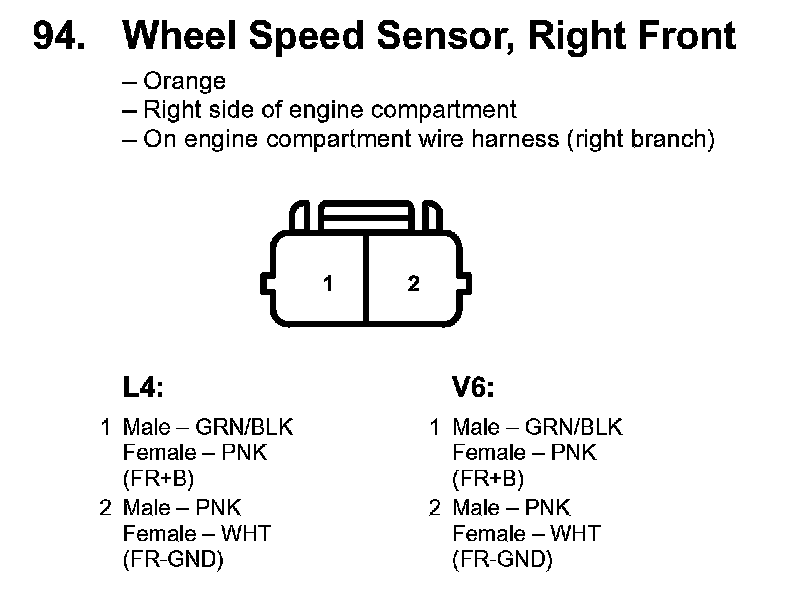

94. Wheel Speed Sensor, Right Front:
95. Wheel Speed Sensor, Right Rear:
