Home >> Honda >> 2005 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Floor Wire Harness (Left Side) (2-Door)

Floor Wire Harness (Left Side) (2-Door)

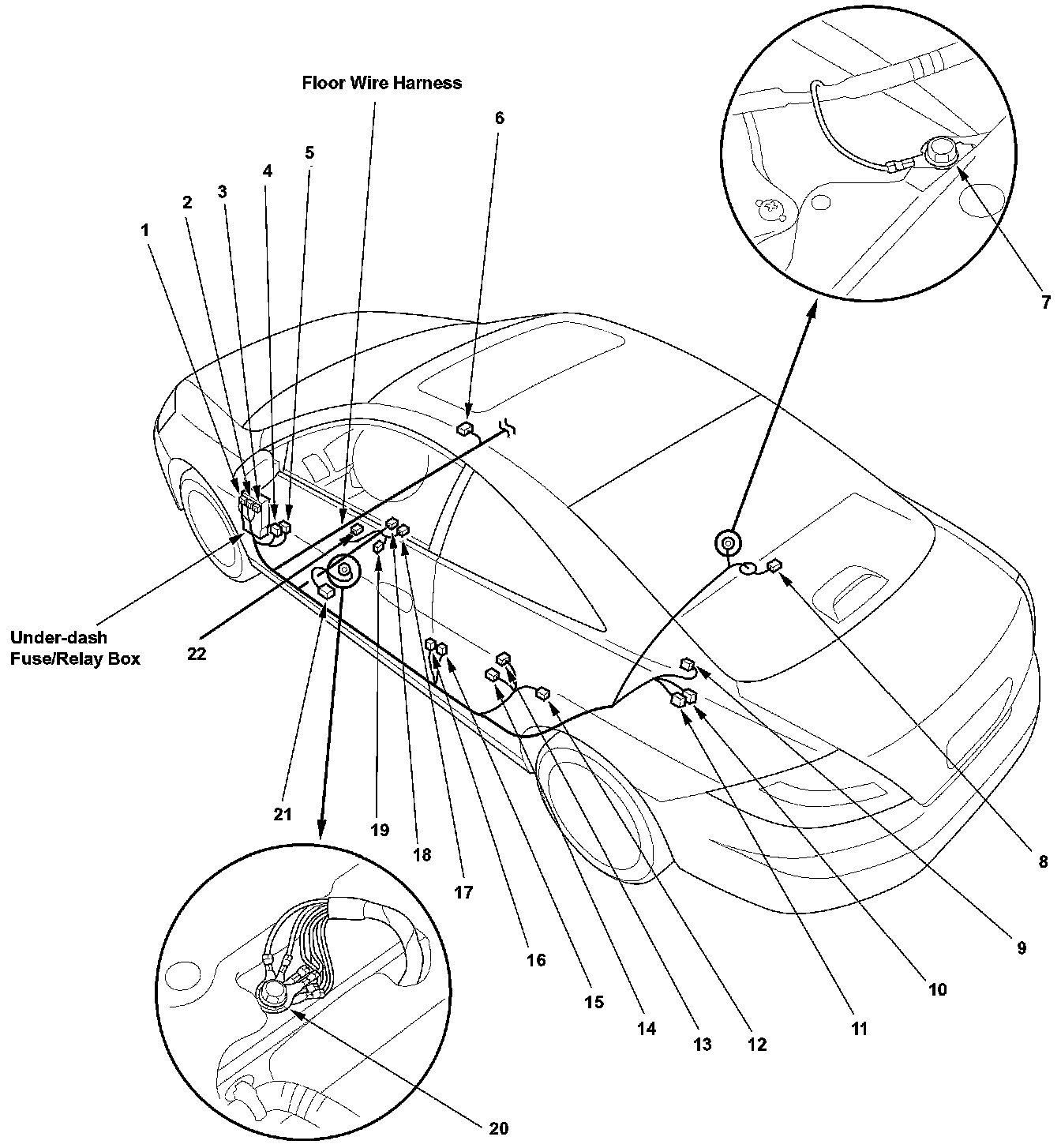

Harness Location View:

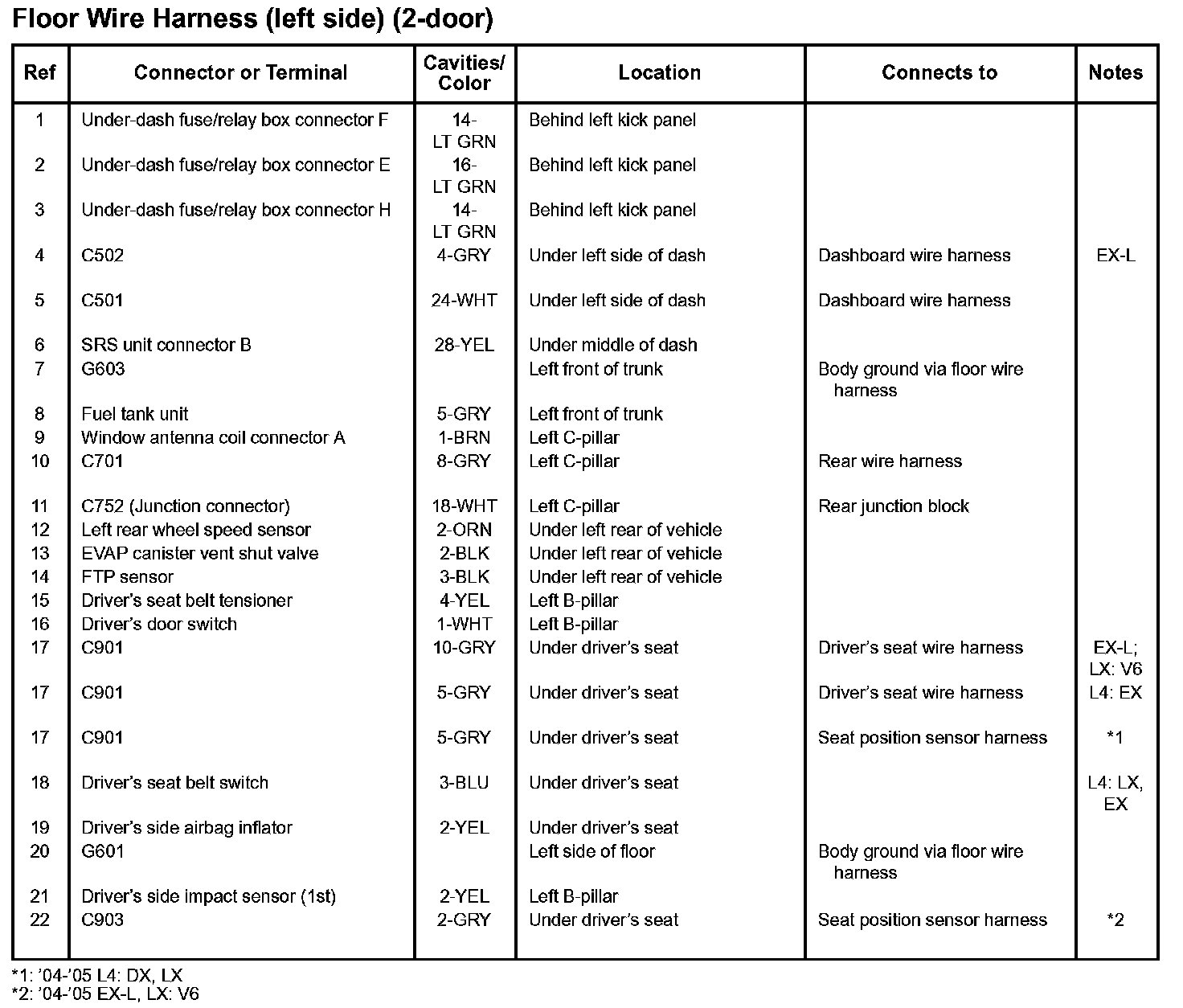

Floor Wire Harness (left Side) (2-door):
