Rear Wire Harness (4-Door)
Rear Wire Harness (4-Door)

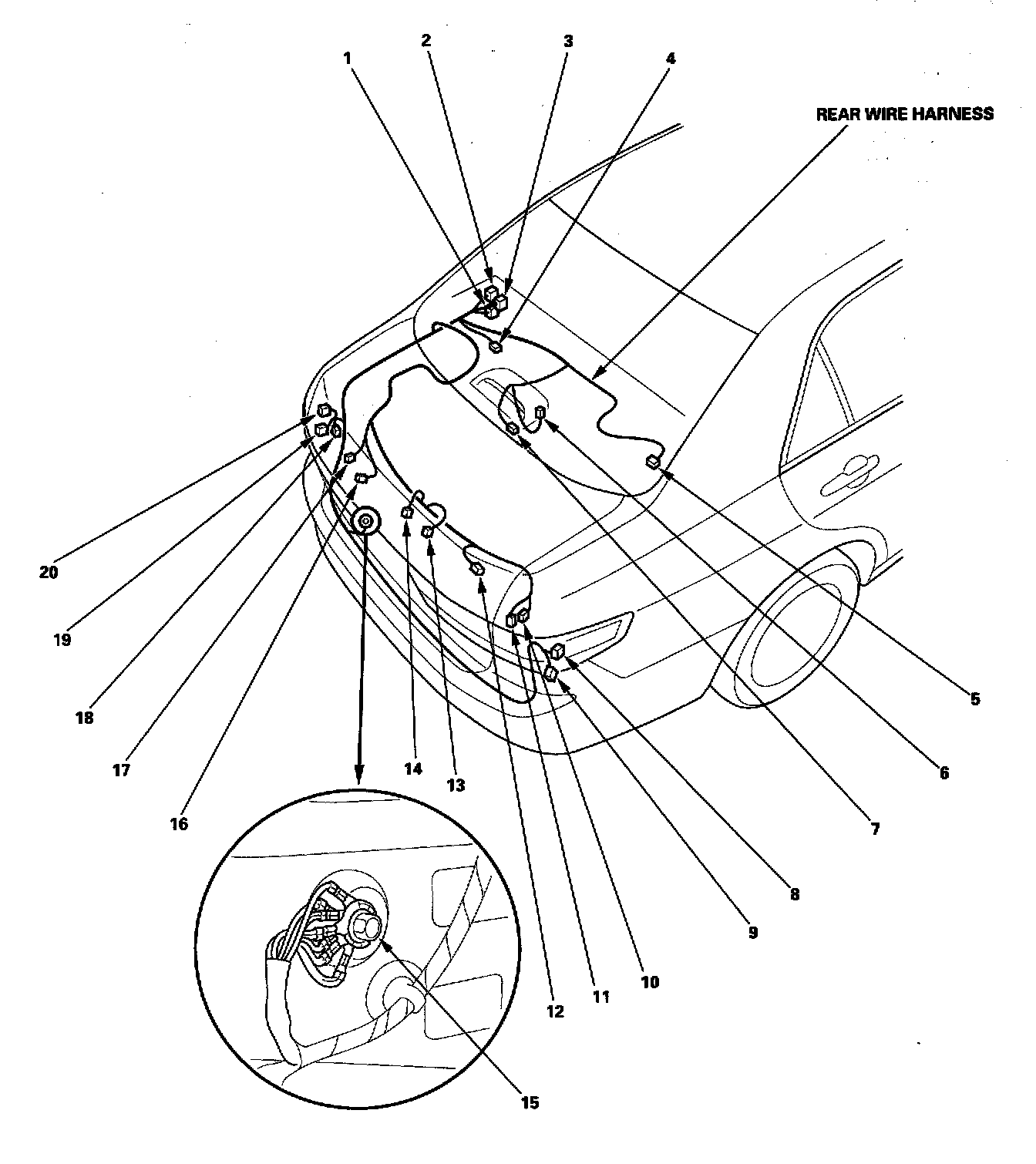

Harness Location View:
Rear Wire Harness(4 - Door):
Harness Location View:

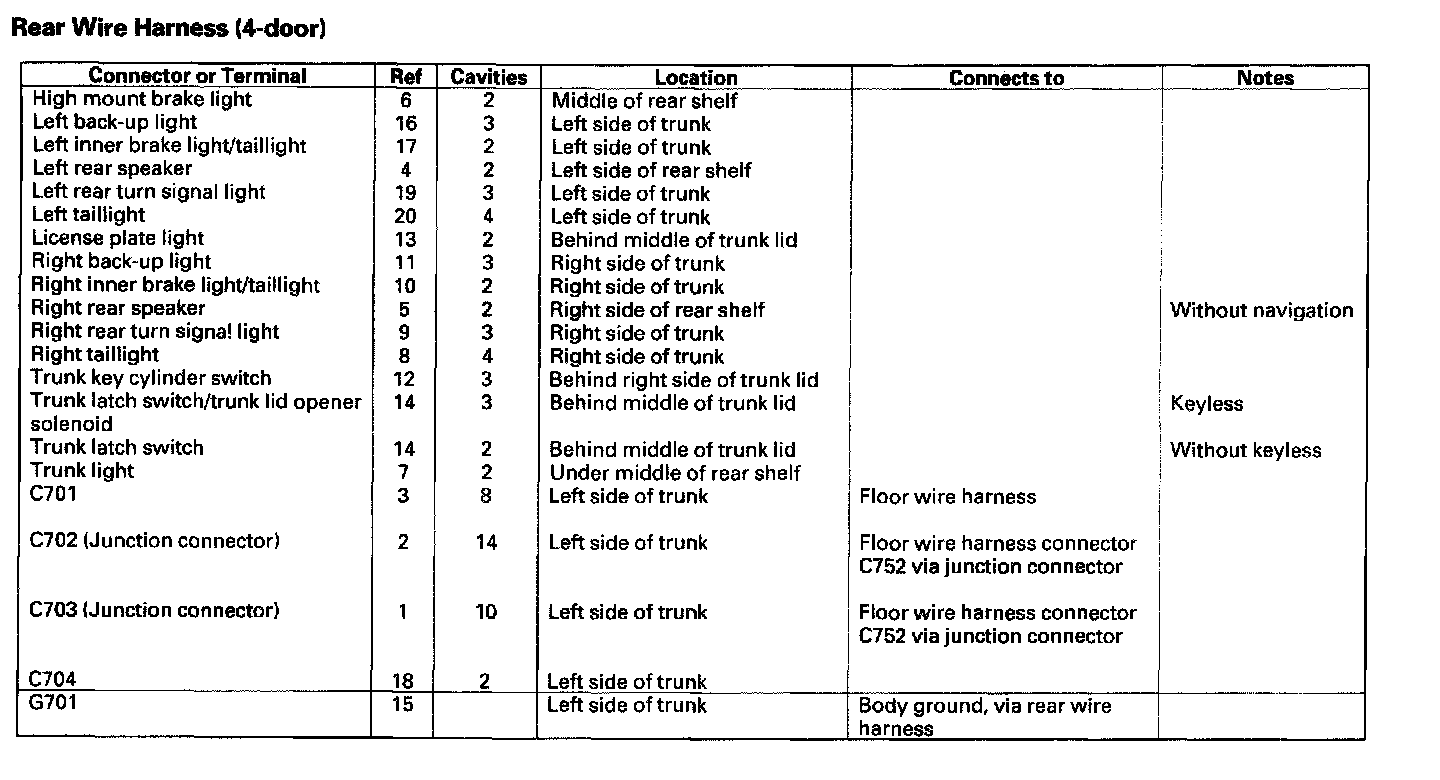

Rear Wire Harness (4-door):
