Condenser Fan: Locations

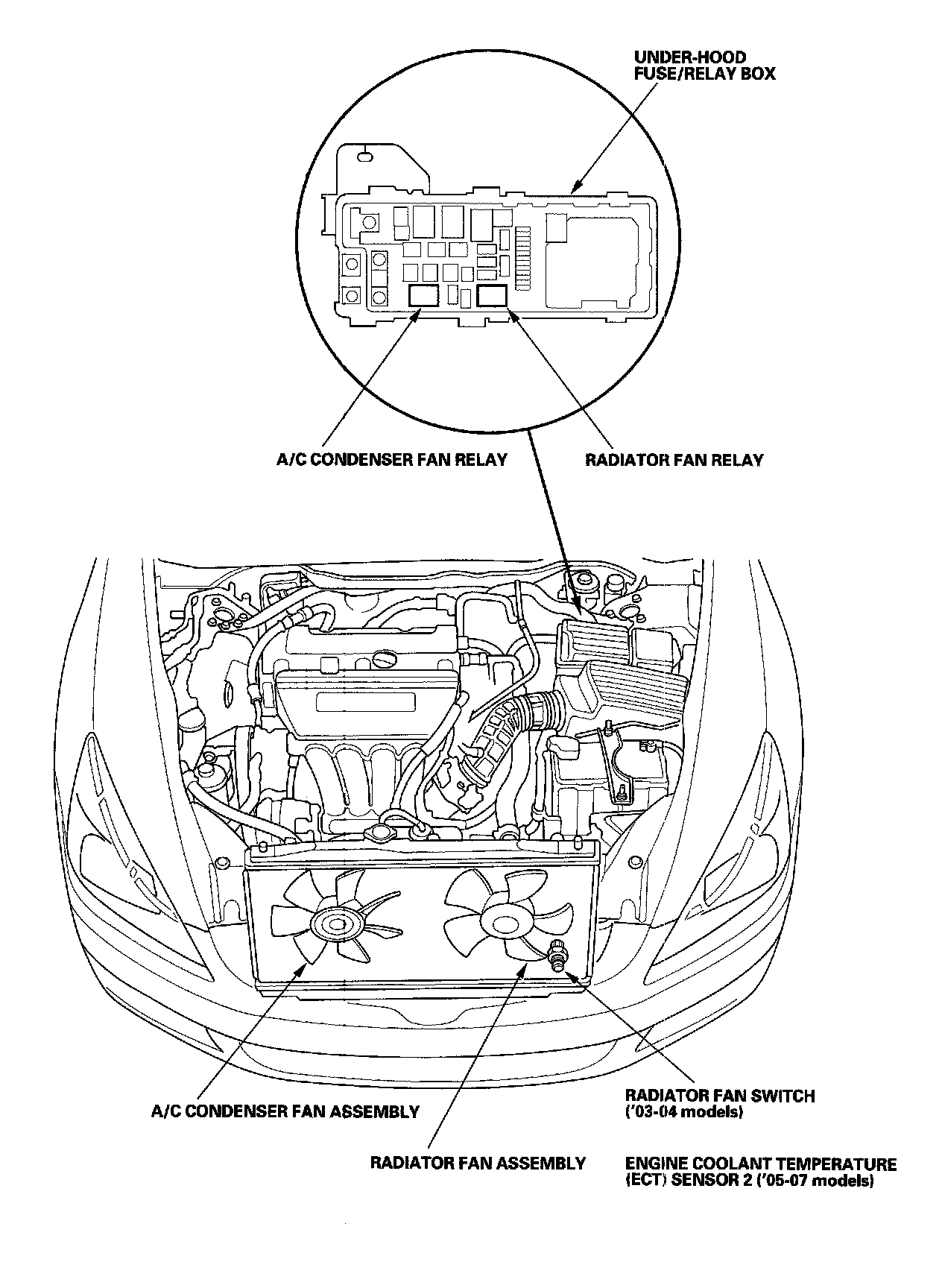

Component Location Index - Fan Controls:



Relay And Control Unit Locations - Engine Compartment:
