Evaporator Temperature Sensor / Switch: Testing and Inspection

Evaporator Temperature Sensor Test

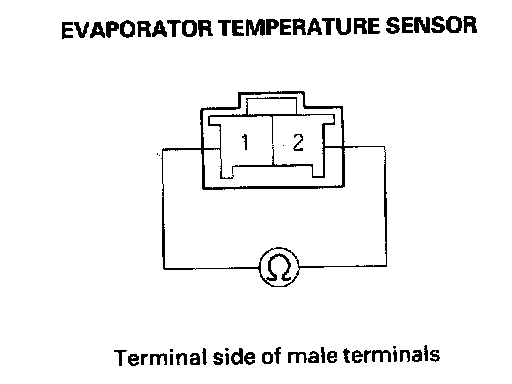

1. Dip the sensor in ice water (32 °F) (0 °C) and measure the resistance between its terminals.
2. Then pour warm water on the sensor, and check for a change in resistance.

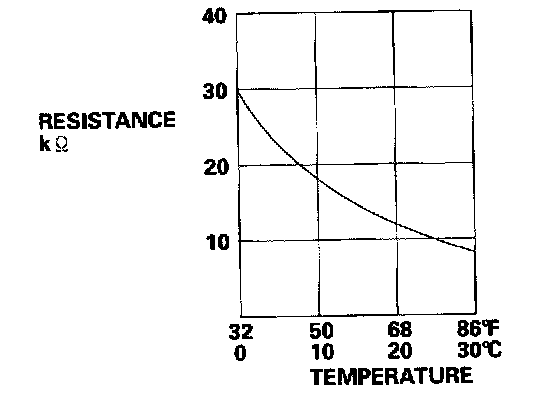

3. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.
