Power Transistor HVAC: Locations

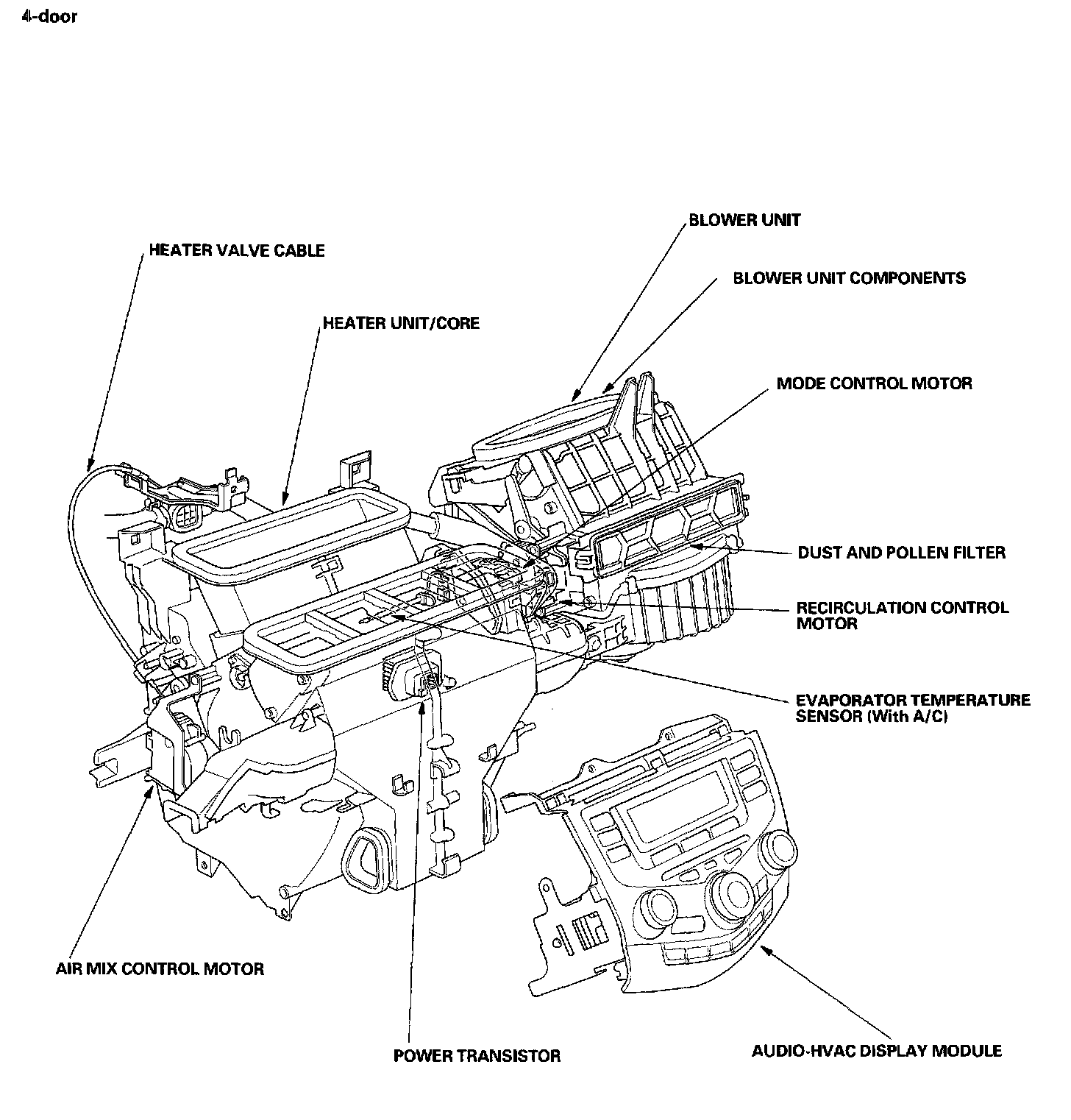

Heating/Air Conditioning Component Location Index (4-door):

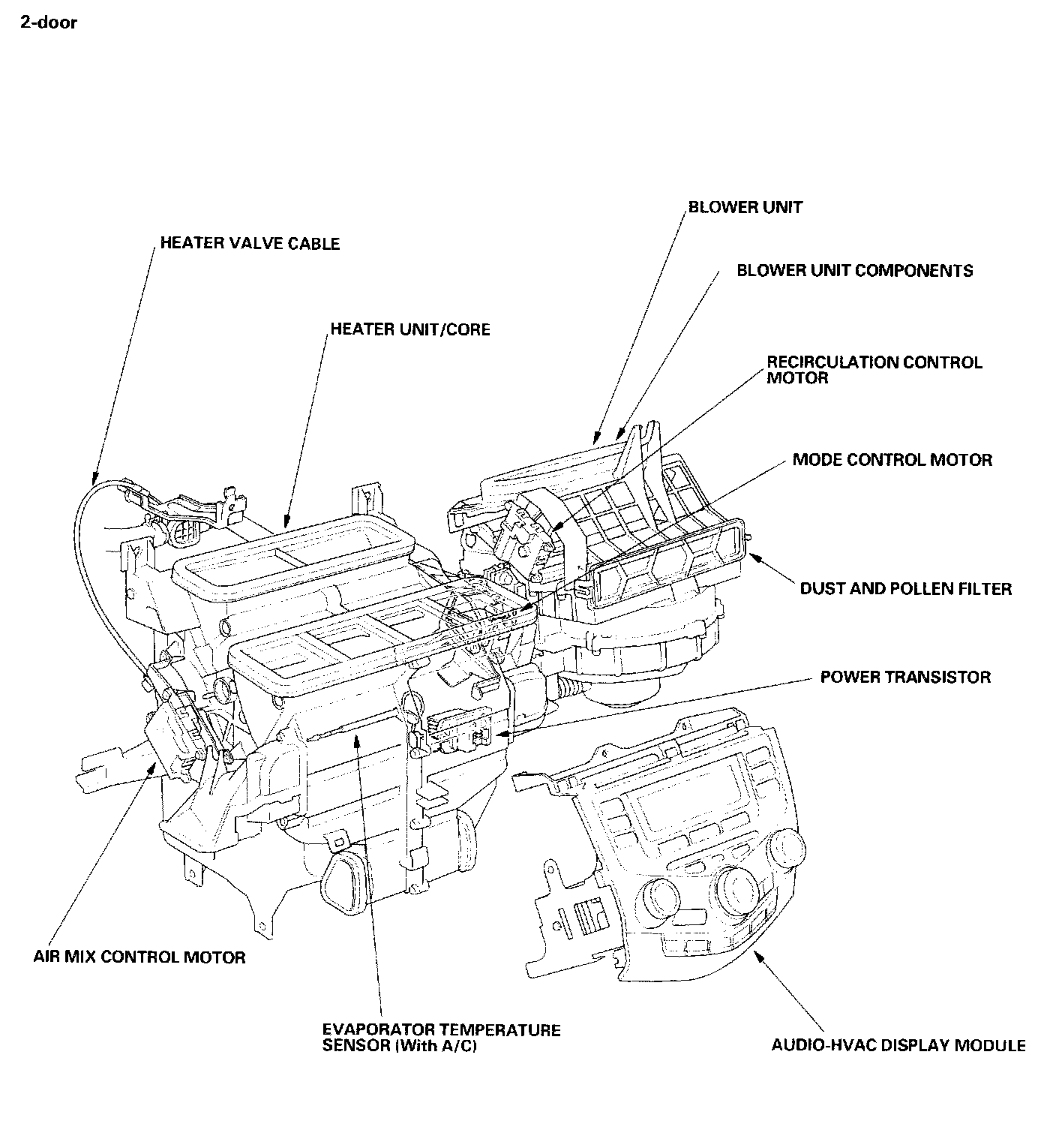

Heating/Air Conditioning Component Location Index (2-door):
