Outside Temperature Display: Diagrams

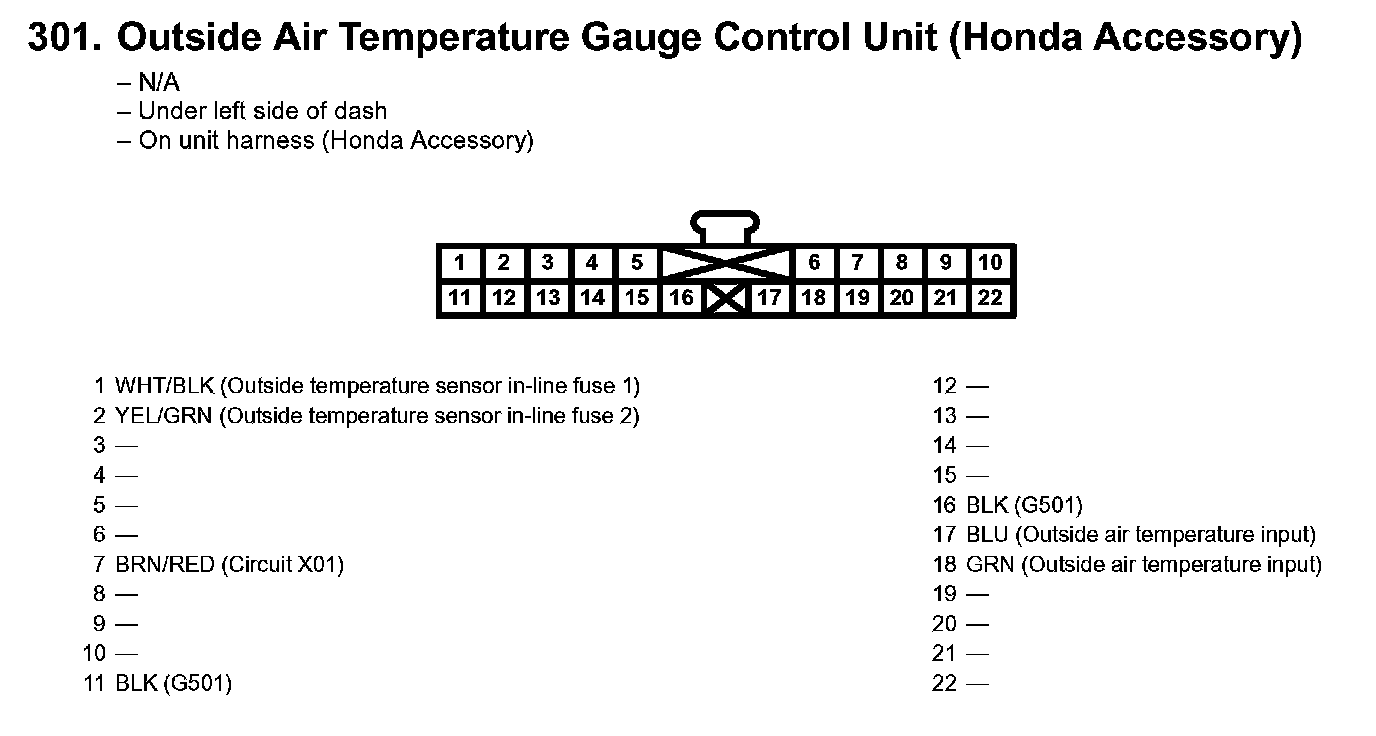

301. Outside Air Temperature Gauge Control Unit (Honda Accessory):
