Electrical Diagrams

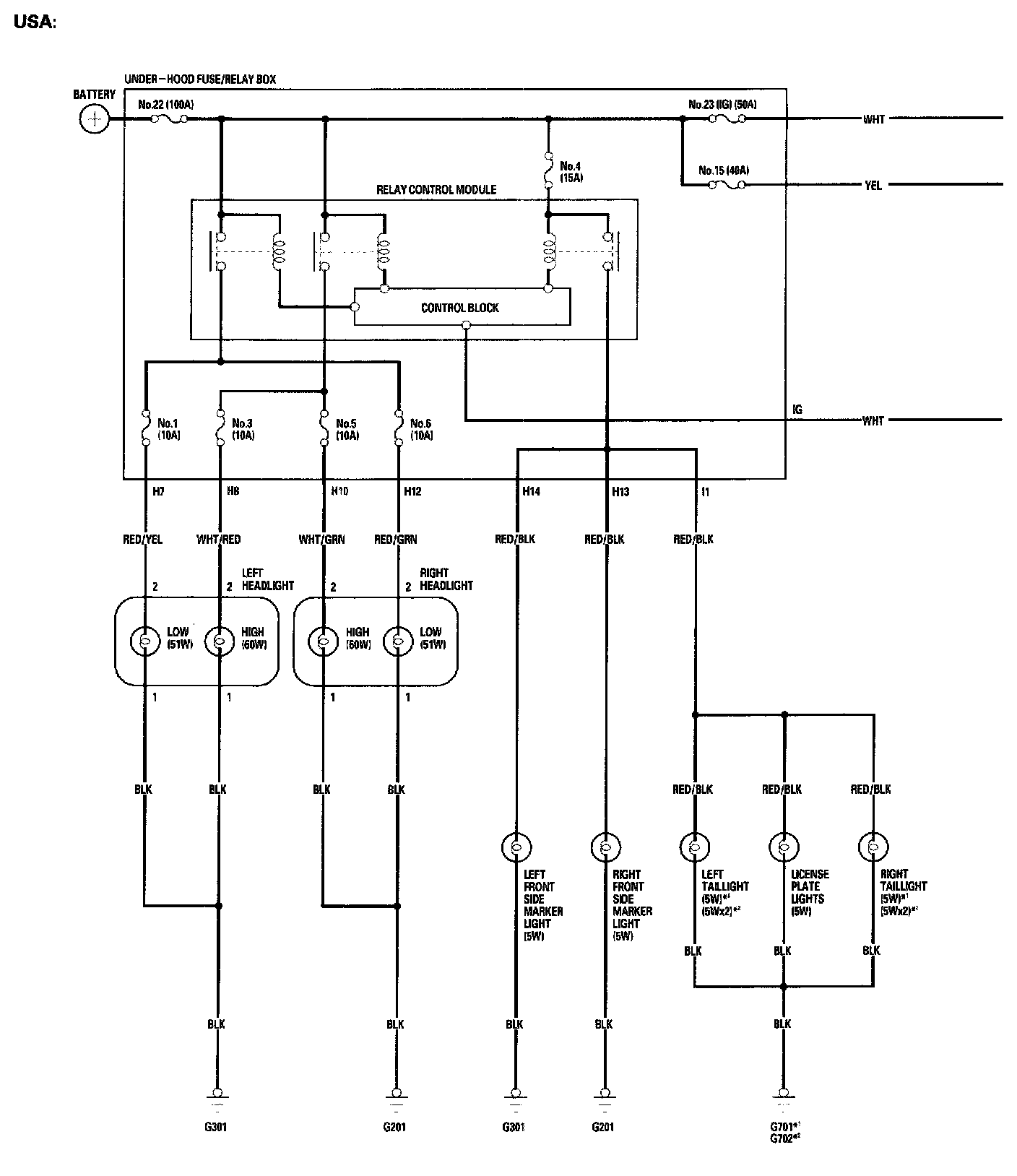

Exterior Lights - Circuit Diagram - USA Part 1:



Exterior Lights - Circuit Diagram - USA Part 2:

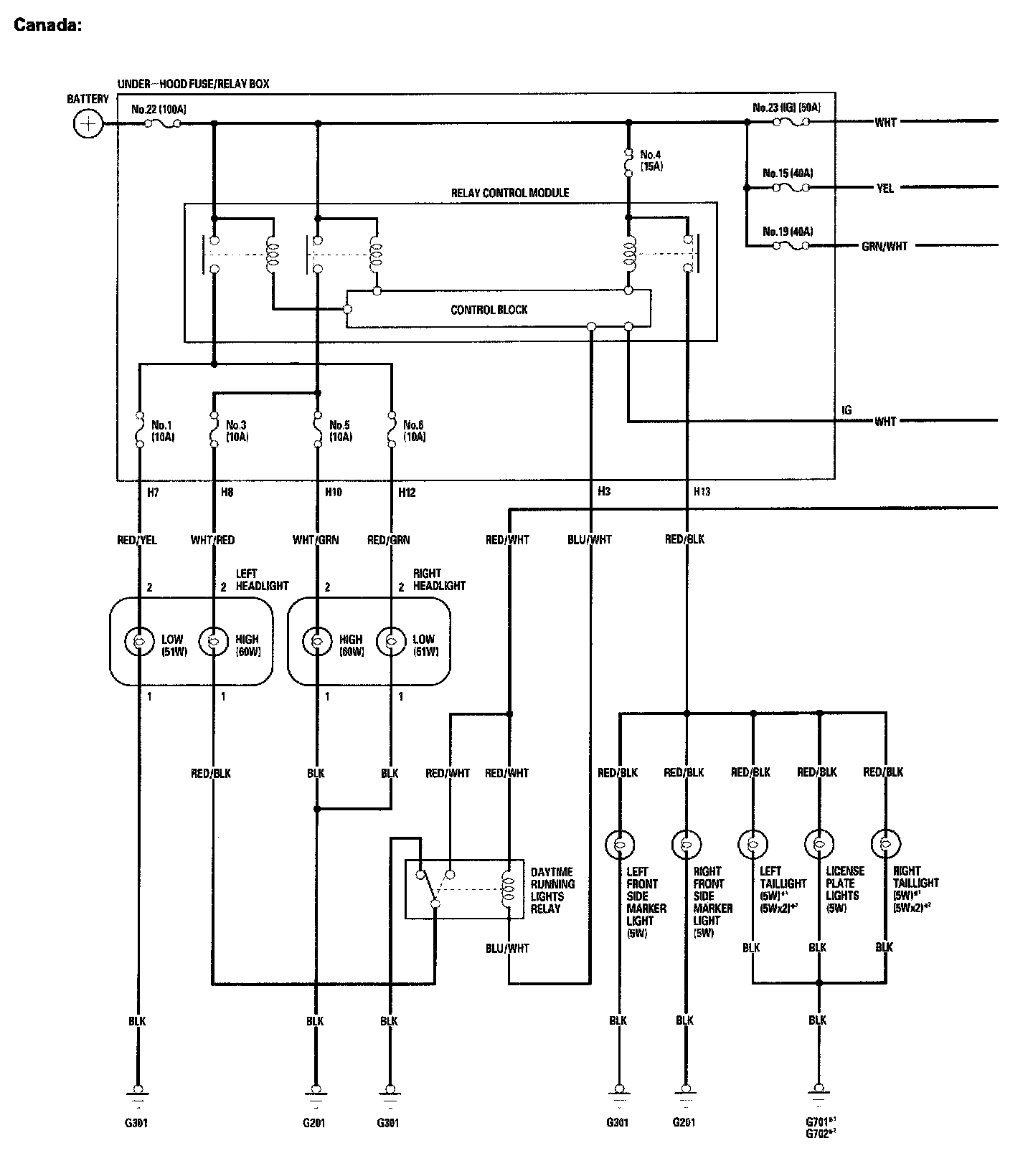

Exterior Lights - Circuit Diagram - Canada Part 1:



Exterior Lights - Circuit Diagram - Canada Part 2:
