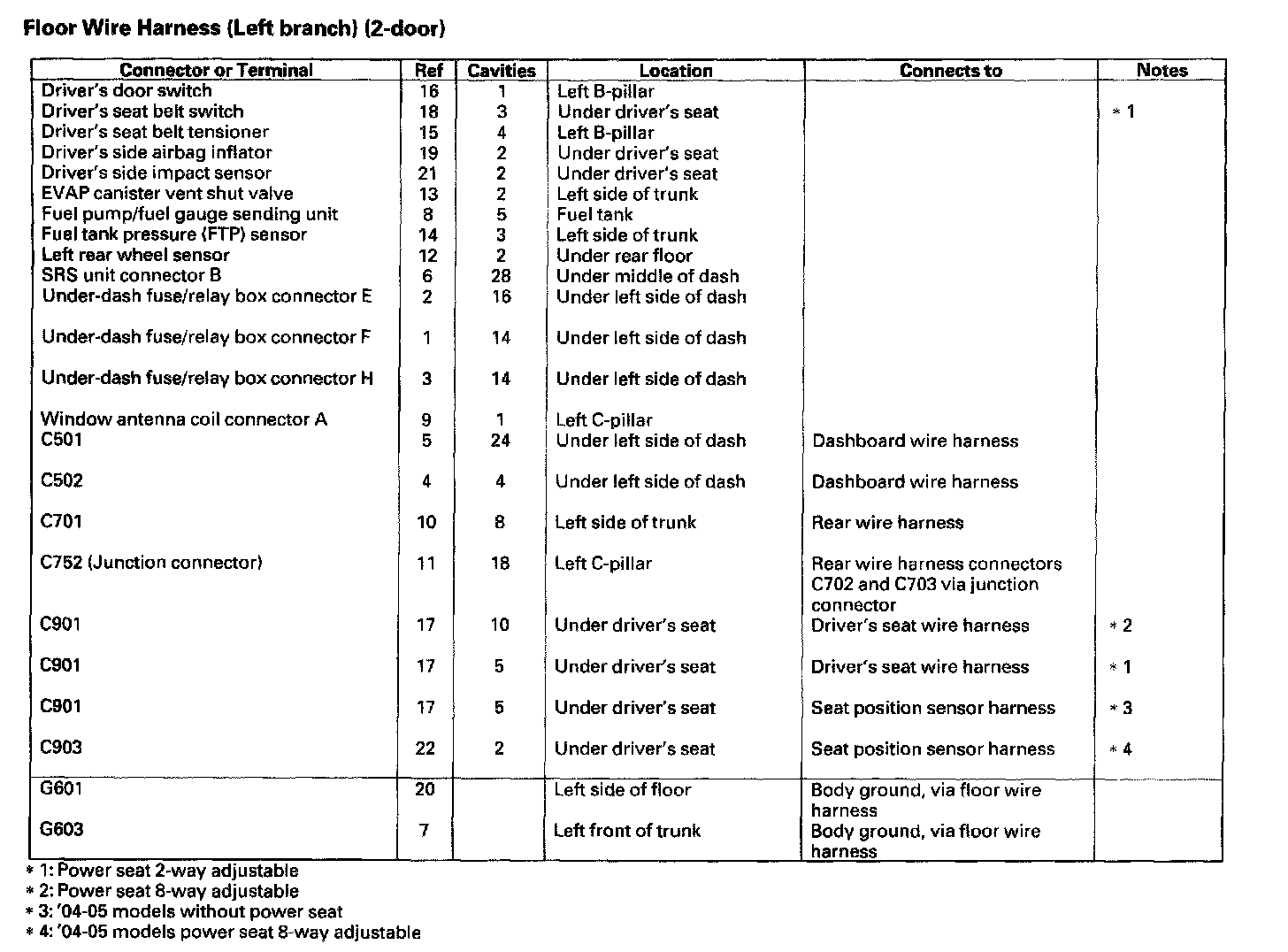

Floor Wire Harness (Left Branch) (2-Door)

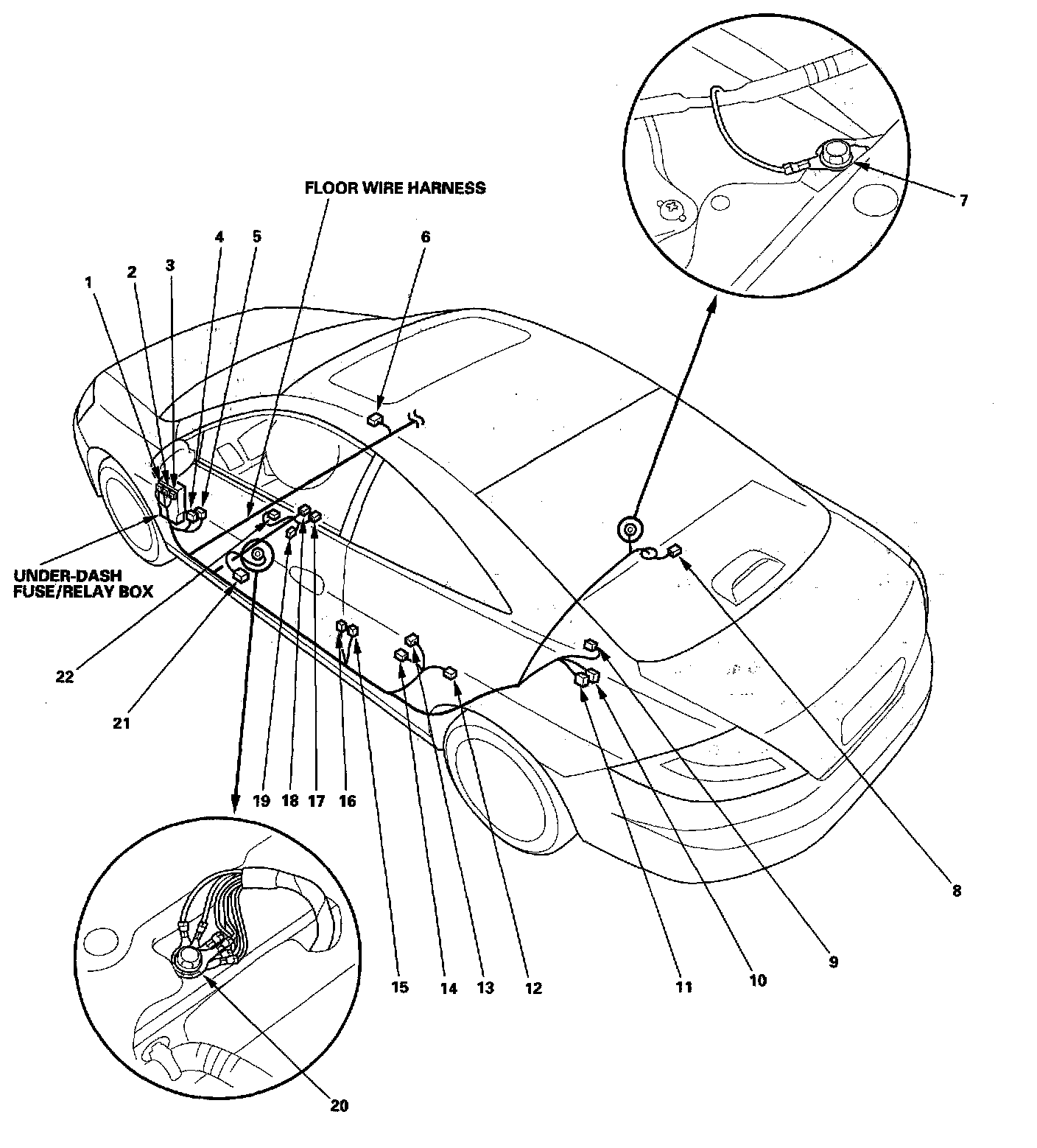

Harness Location View:



Floor Wire Harness (Left Branch) (2-Door):
