Locations
>>
Harness Locations
>>
Rear Wire Harness (2-Door)
Rear Wire Harness (2-Door)

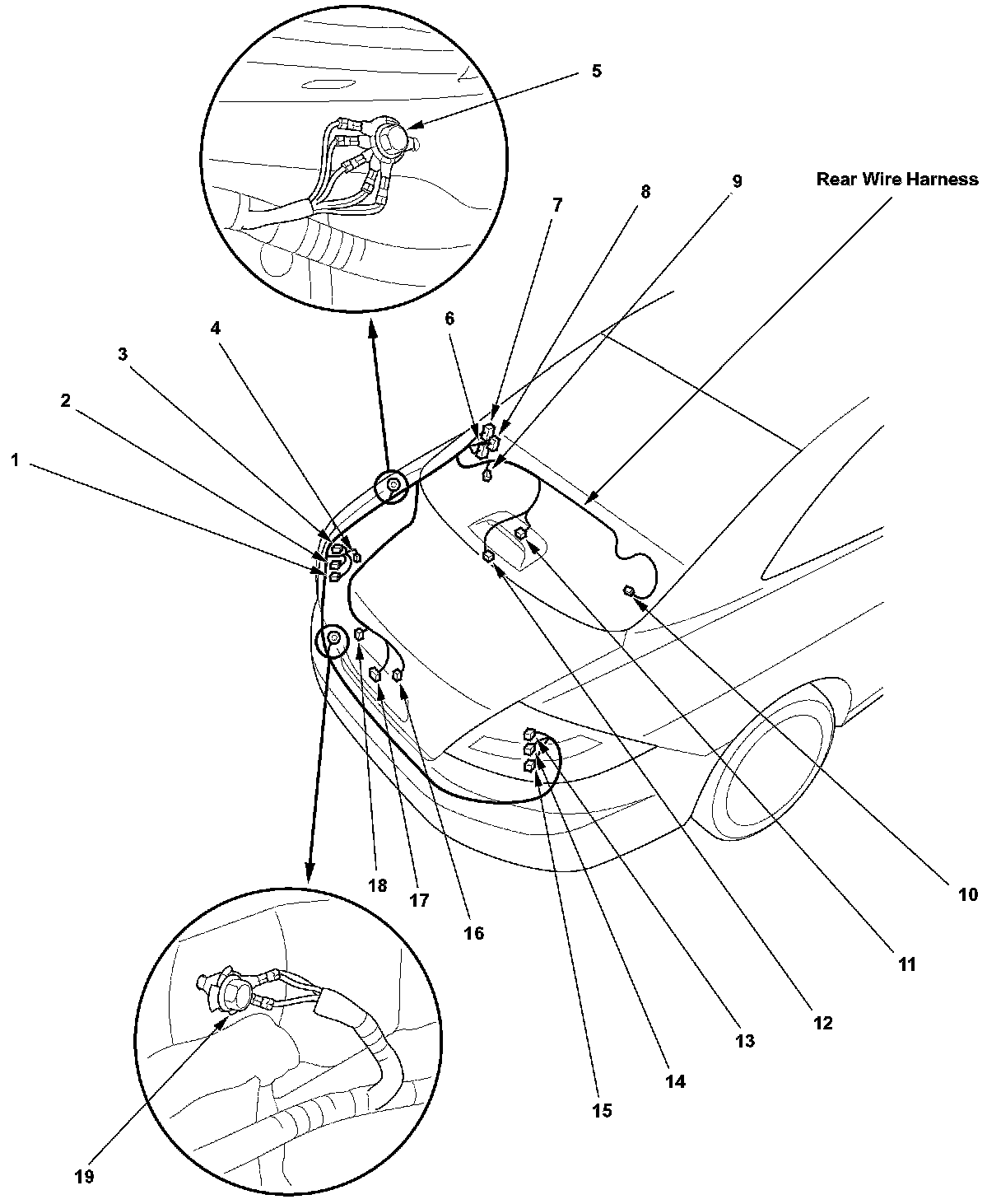

Harness Location View:
Rear Wire Harness(2 - Door):

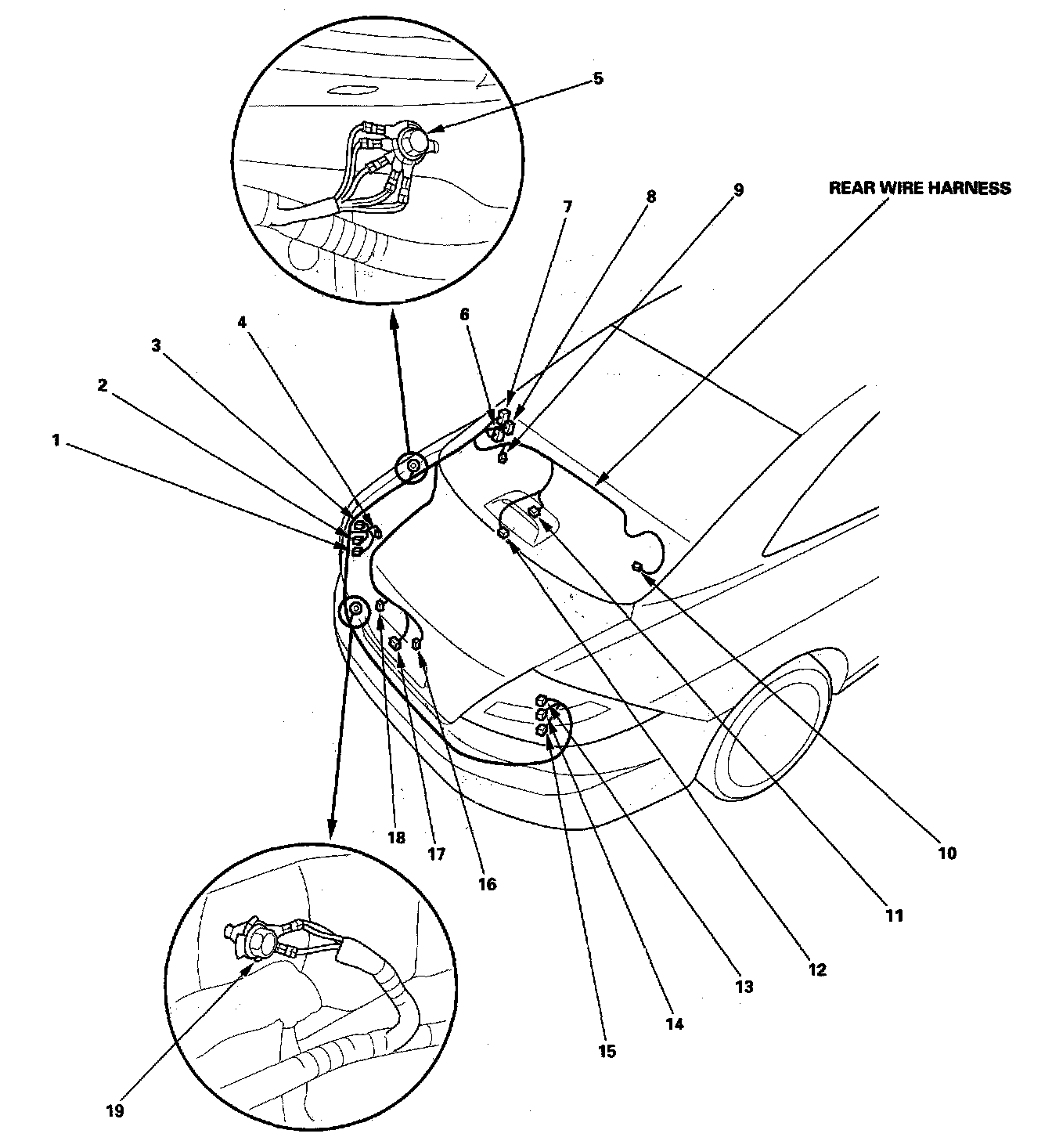

Harness Location View:

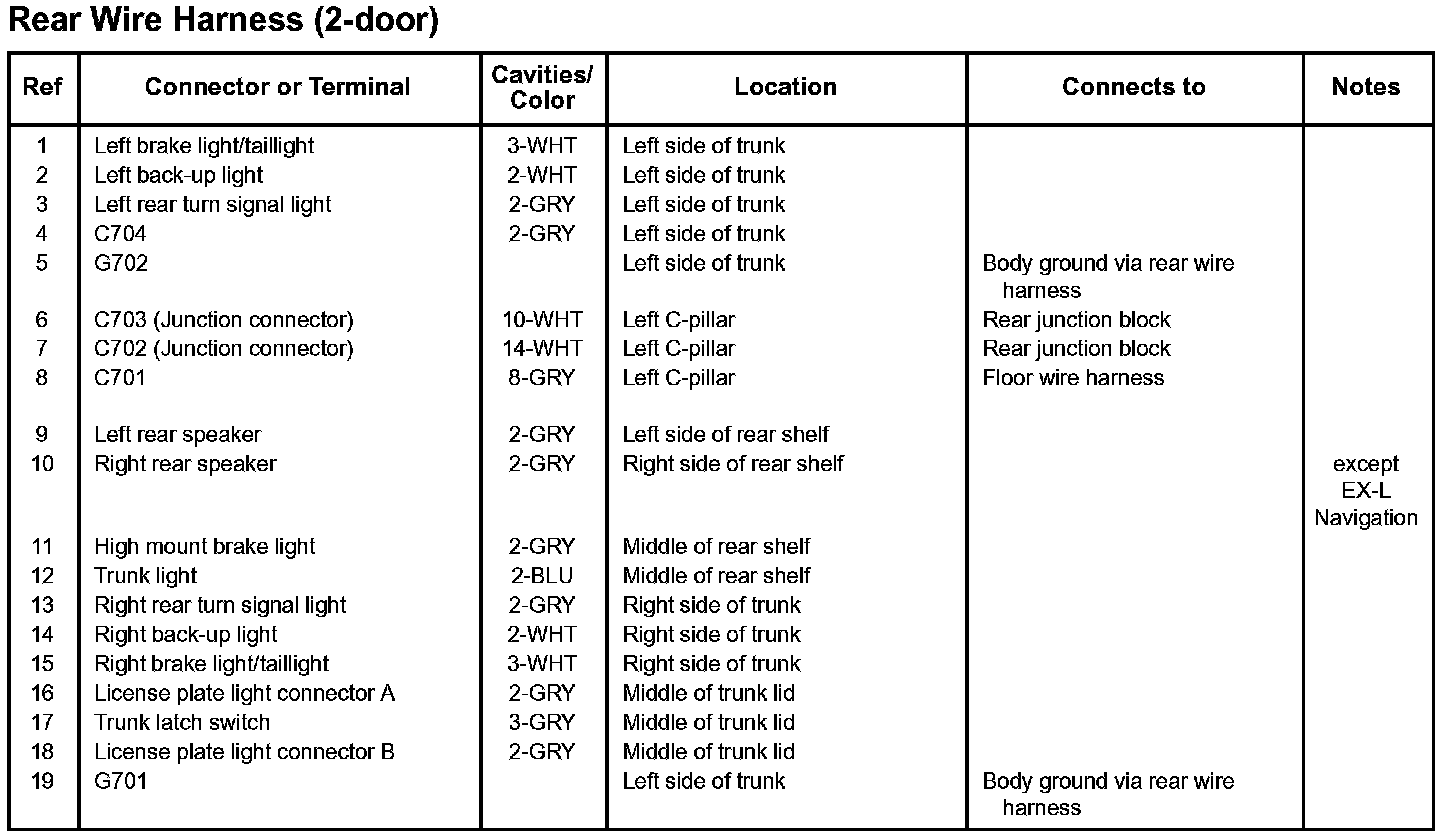

Rear Wire Harness (2-door):
