Transmission Control Systems: Locations

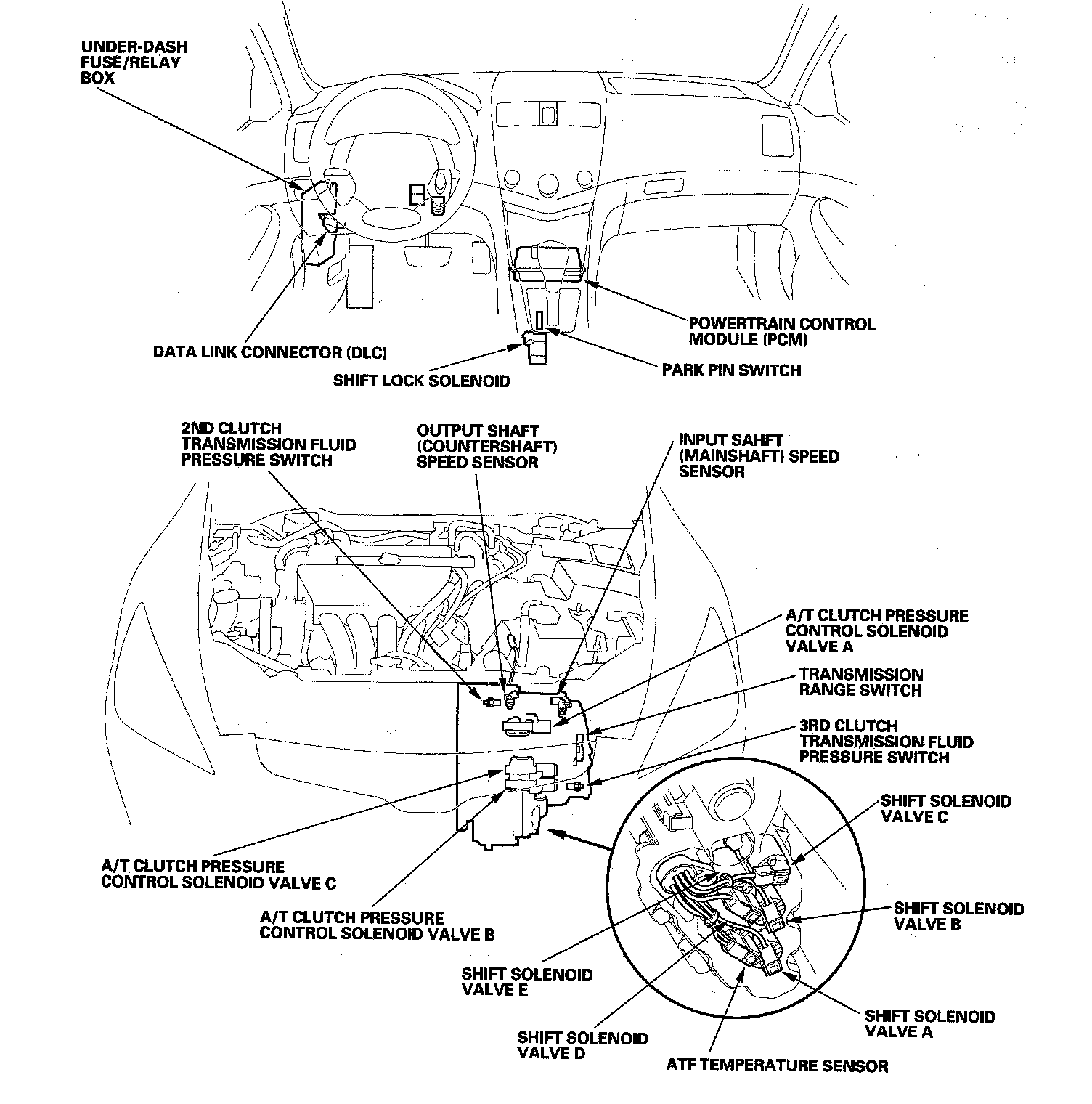

Electronic Controls Location:

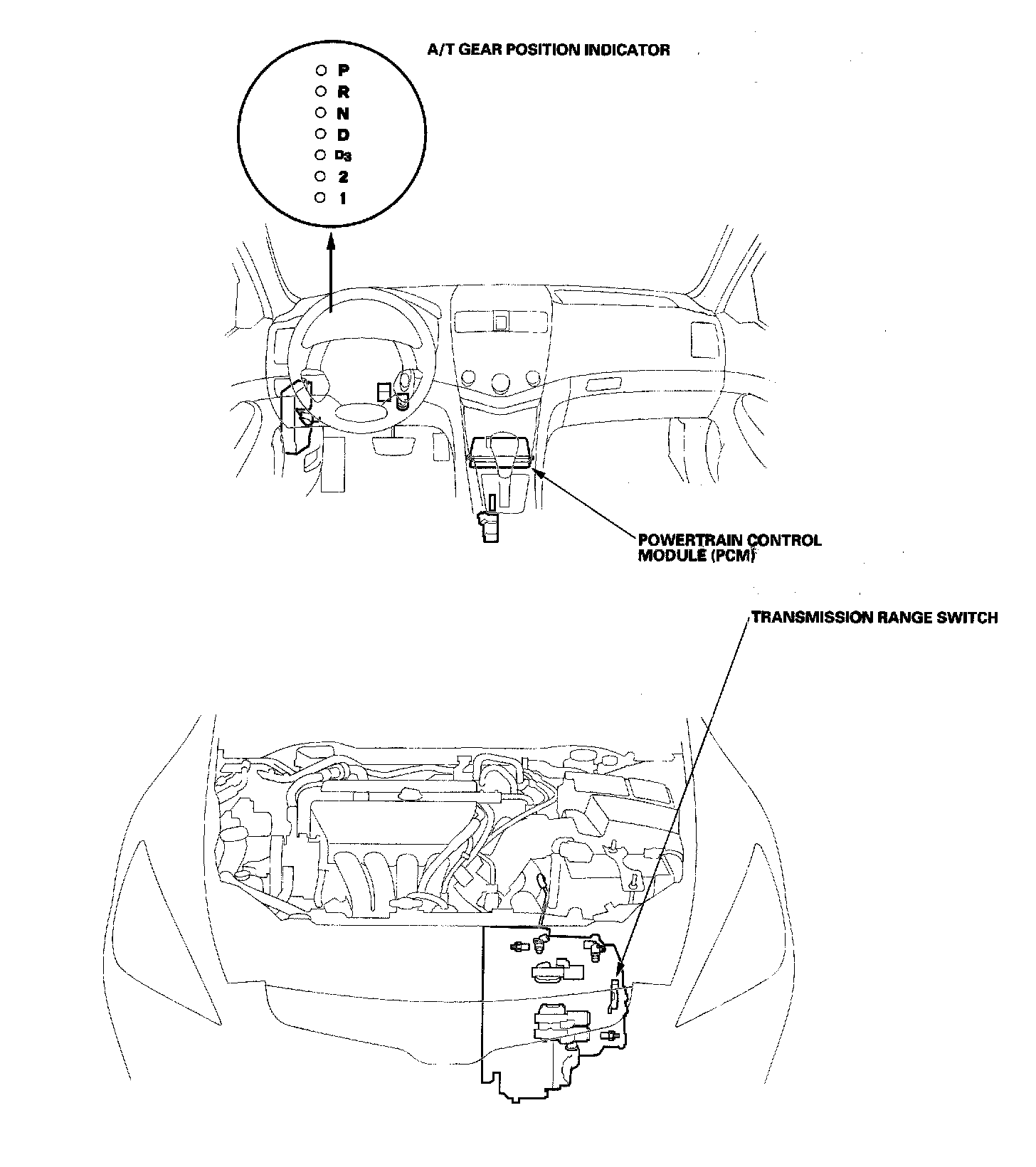

A/T Gear Position Indicator Component Location Index:
