Electrical Diagrams

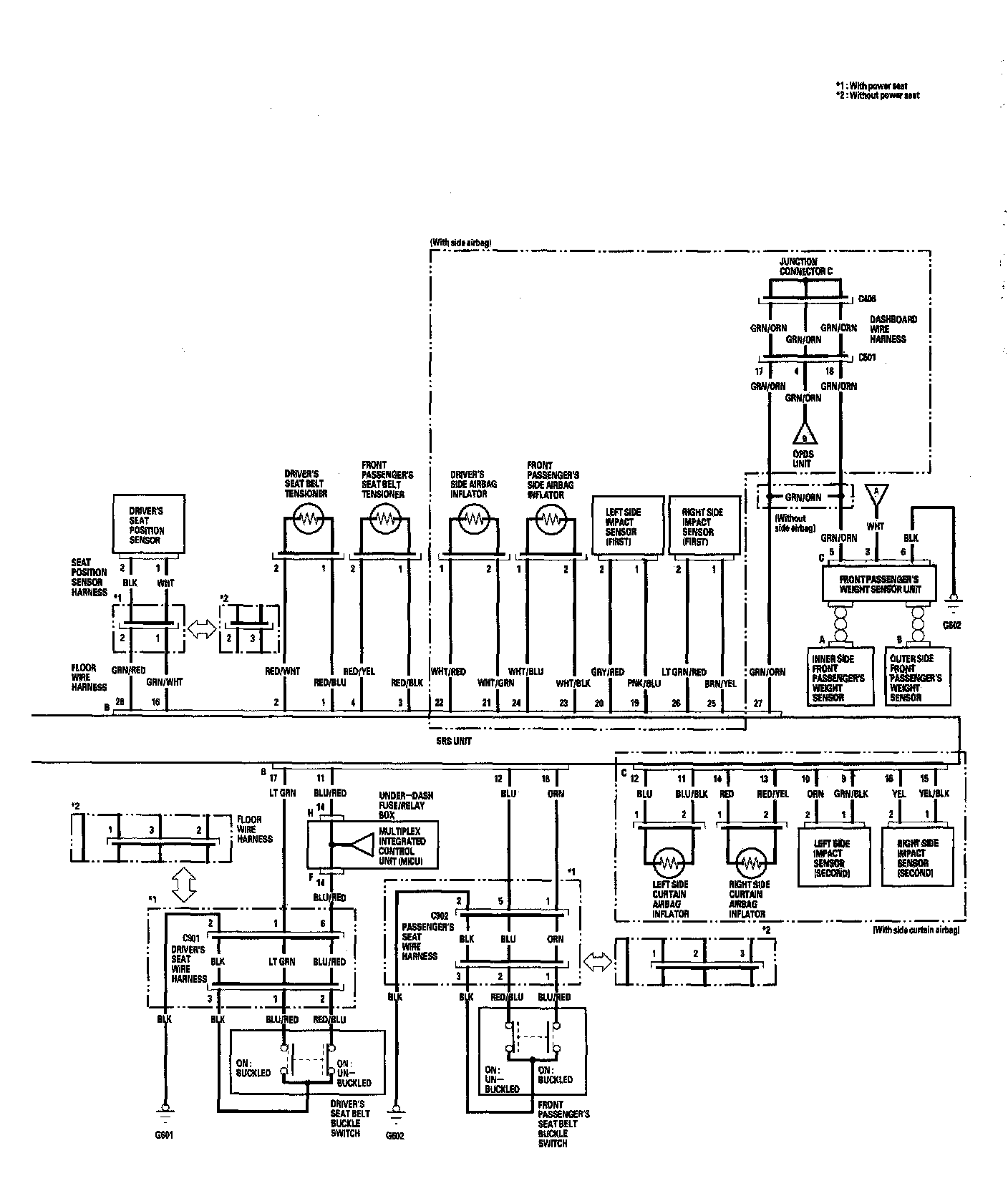

SRS Circuit Diagram, Without Side Curtain Airbags:

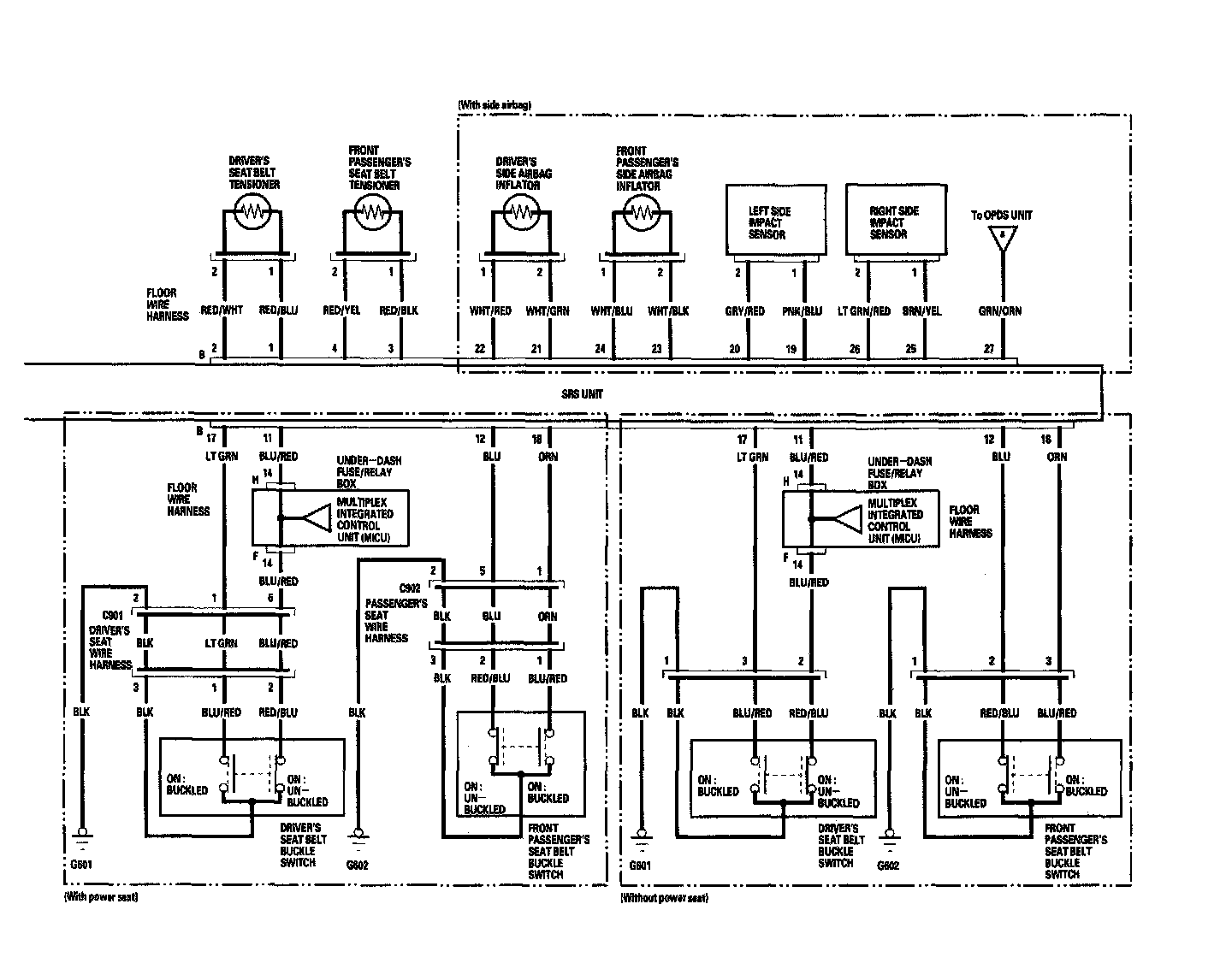

SRS Circuit Diagram, Without Side Curtain Airbags:

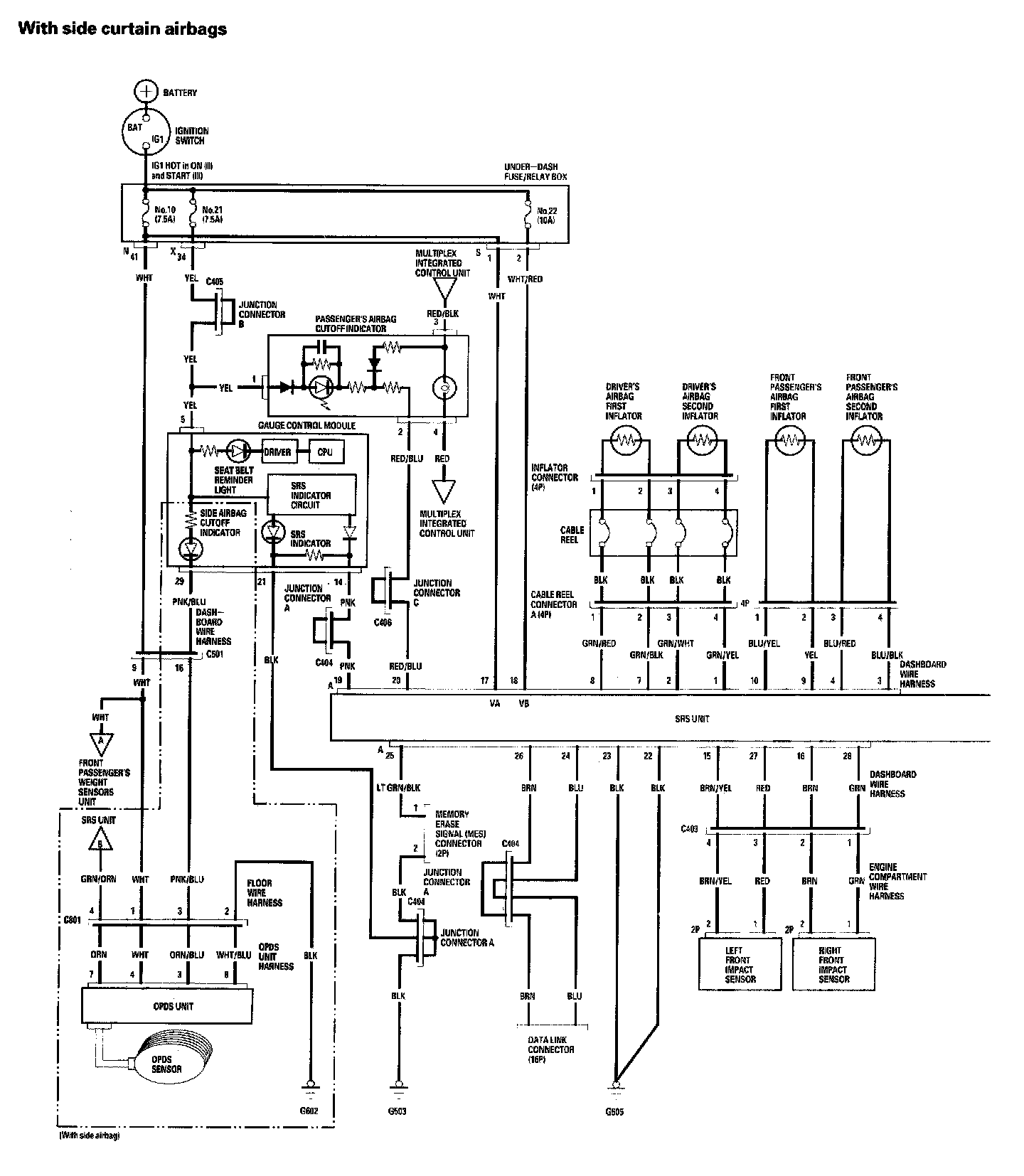

SRS Circuit Diagram, With Side Curtain Airbags:



SRS Circuit Diagram, With Side Curtain Airbags:
