A/T Controls - MIL ON/DTC P0973 Set

05-071

December 16, 2005

Applies To:
See VEHICLES AFFECTED

MIL Comes On With DTC P0973

SYMPTOM

The MIL is on with DTC P0973 (short in shift solenoid valve A circuit).

PROBABLE CAUSE

Ferrous contamination on the contact area of the solenoid causes a short.





VEHICLES AFFECTED

CORRECTIVE ACTION

Replace shift solenoid A.

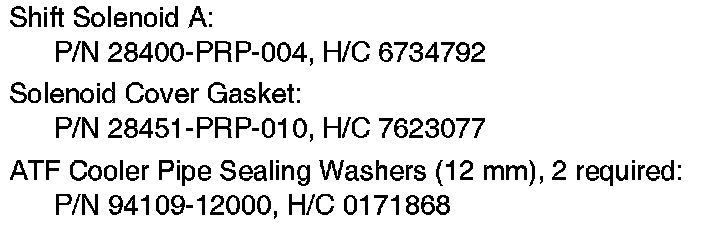

PARTS INFORMATION

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Operation Number: 2321D7

Flat Rate Time: 1.1 hours

Failed Part: P/N 28400-PRP-004
H/C 6734792

Defect Code: 08103

Symptom Code: 03203

Template ID: 05-071A

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

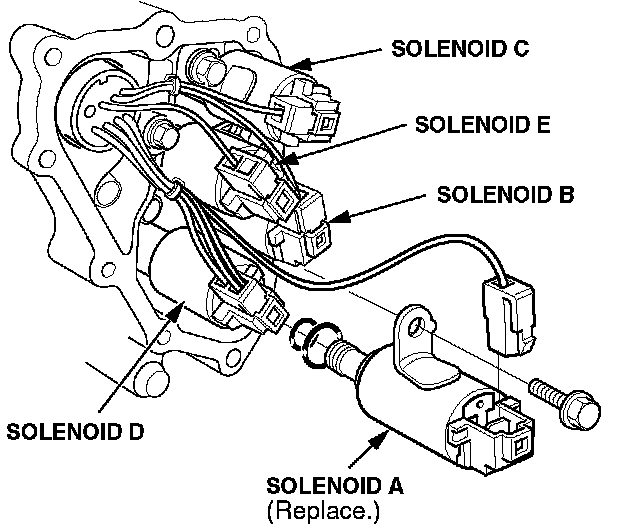

1. Replace shift solenoid A (blue wire in harness).

^ Refer to page 14-193 of the 2005-06 CR-V Service Manual, page 14-194 of the 2003-06 Accord Service Manual, or

^ Online, enter keyword Shift Solenoid Valve Replacement. For CR-V, select Shift Solenoid Valve Replacement (A/T). For Accord, select Shift Solenoid Valve Replacement (L4 Engine, A/T) from the list.





NOTE:
Replace the solenoid cover gasket and the ATF cooler pipe sealing washers during installation.

2. Clear the DTC with the HDS, then test-drive the vehicle to ensure that the DTC does not recur.

3. Inspect for any automatic transmission fluid leaks related to the repair.
