Recall - Fuse Box Replacement: Overview
05-014April 1, 2005
Applies To:
2005 Accord L4 2-Door - From VIN 1HGCM71 ...5A007928 thru 1HGCM71...5A008407
From VIN 1HGCM72..5A007883 thru 1HGCM72...5A008347
2005 Accord V6 2-Door - From VIN 1HGCM81...5A006275 thru 1HGCM81...5A006334
From VIN 1HGCM82..5A006035 thru 1HGCM82..5A006394
2005 Odyssey - From VIN 5FNRL38..5B030578 thru 5FNRL38..5B042841
Safety Recall:
Fuse Box May Cause a No-Start or Stalling Condition
BACKGROUND
A loose terminal in the driver's under-dash fuse/relay box may cause the fuel pump to lose power. If the fuel pump becomes inoperative, the engine may not start. In the worst case, if the fuel pump loses power while driving, the engine could stall without warning, and a crash could occur.
CUSTOMER NOTIFICATION
All owners of affected vehicles will be sent a notification of this campaign. An example of the customer notification is at the end of this service bulletin.
Not all vehicles within the VIN ranges are affected. To verify vehicle eligibility, check at least one of these items:
^ The customer has a notification letter.
^ The vehicle is shown on your campaign responsibility report.
^ The vehicle is shown as eligible on an iN VIN status inquiry.
In addition to the bulleted verification items, check for a punch mark above the fifth character of the engine compartment VIN. A punch mark in that location means the vehicle has already been repaired.
Most vehicles affected by this campaign are in your new vehicle inventory. According to federal law, these vehicles cannot be sold or leased until they are repaired. To see if a vehicle is affected by this campaign, do a VIN status inquiry before selling it.
CORRECTIVE ACTION
Replace the driver's under-dash fuse/relay box.
PARTS INFORMATION
Driver's Under-Dash Fuse/Relay Box (Accord):
P/N 38200-SDN-A22, H/C 7426554
Driver's Under-Dash Fuse/Relay Box (Odyssey):
P/N 38200-SHJ-A21, H/C 7708100

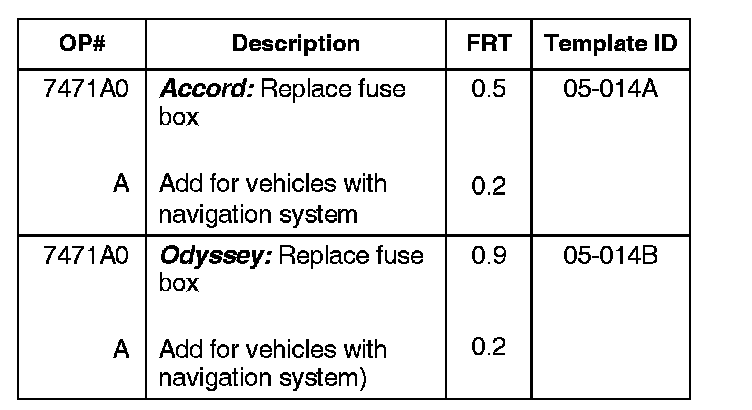

WARRANTY CLAIM INFORMATION
Failed Part: P/N 38200-SDN-A22
H/C 7426554
Defect Code: 5D500
Symptom Code: P7300
Skill Level: Repair Technician
REPAIR PROCEDURE
1. Replace the driver's under-dash fuse/relay box:
NOTE:
Do not use pliers to remove the relays.
^ Accord: Refer to page 22-73 of the 2003-05
Accord Service Manual.
^ Odyssey: Refer to page 22-90 of the 2005
Odyssey Service Manual.
^ Online, enter keyword FUSE BOX, and select
Under-dash Fuse/Relay Box Removal and Installation from the list.
2. Do these steps that were unintentionally omitted from the fuse box replacement procedure in the service manuals:
^ On customer vehicles with XM Radio, enter the XM Radio station presets.
^ On Odysseys, reset the power sliding door control unit (see page 22-437 of the service manual).
^ On Accords, reset the clock.
3. If the vehicle has a factory-installed navigation system, do the navigation system setup:
^ Accord: Refer to Navigation System Setup at
PDI in service bulletin 02-064, PDI of the Accord
Voice Recognition DVD Navigation System.
^ Odyssey: Refer to Navigation System Setup at
PDI in service bulletin 04-054, 2005 Odyssey:
PDI of the DVD Navigation System With Voice
Recognition.
4. Center-punch a completion mark above the fifth character of the engine compartment VIN.
