CKP Sensor Sub-harness
CKP Sensor Sub-harness

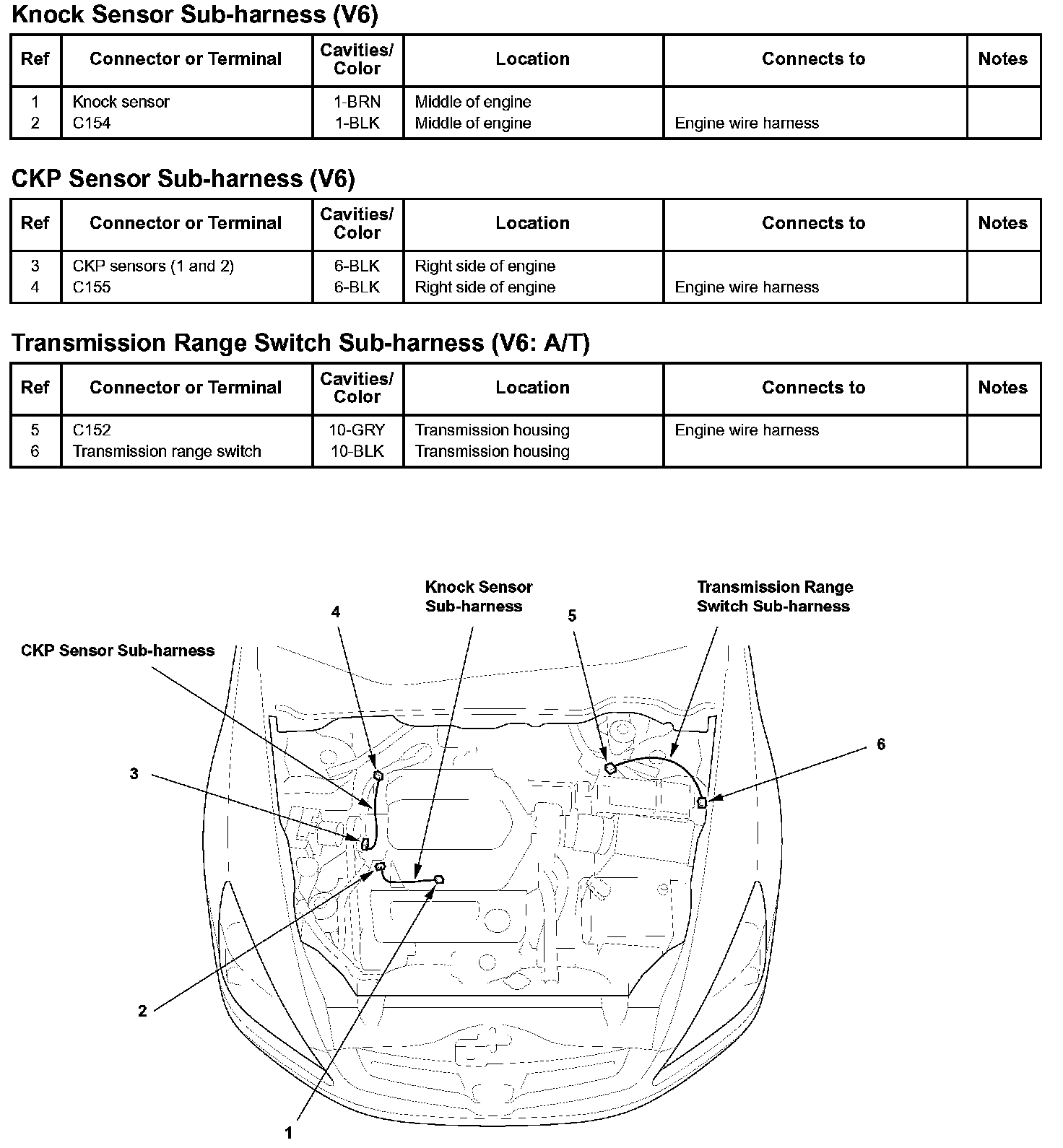

Knock Sensor Sub-harness/ CKP Sensor Sub-harness/ Transmission Range Switch Sub-harness (V6: A/T):
