Instrument Cluster / Carrier

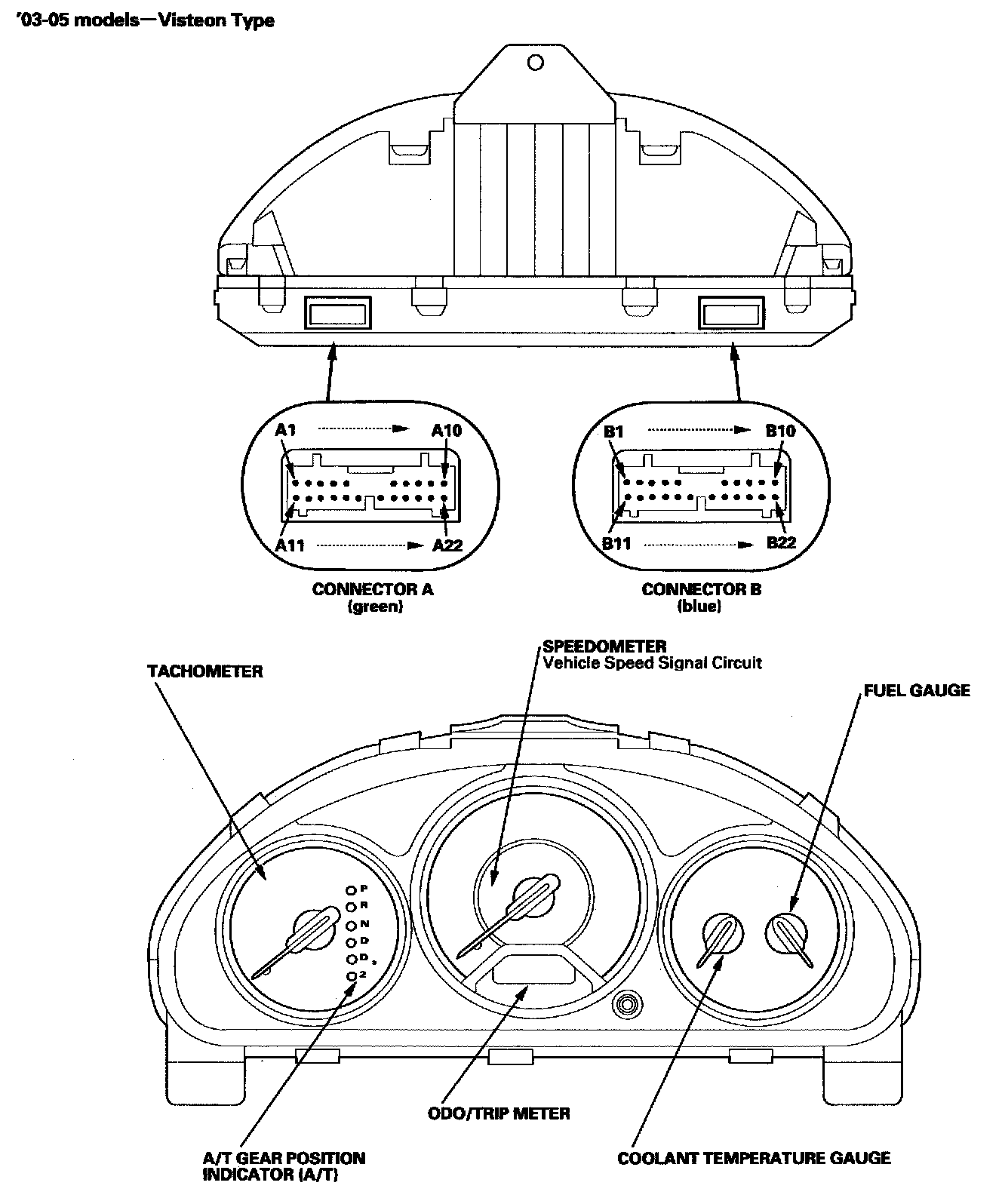

Gauges - Component Location Index:

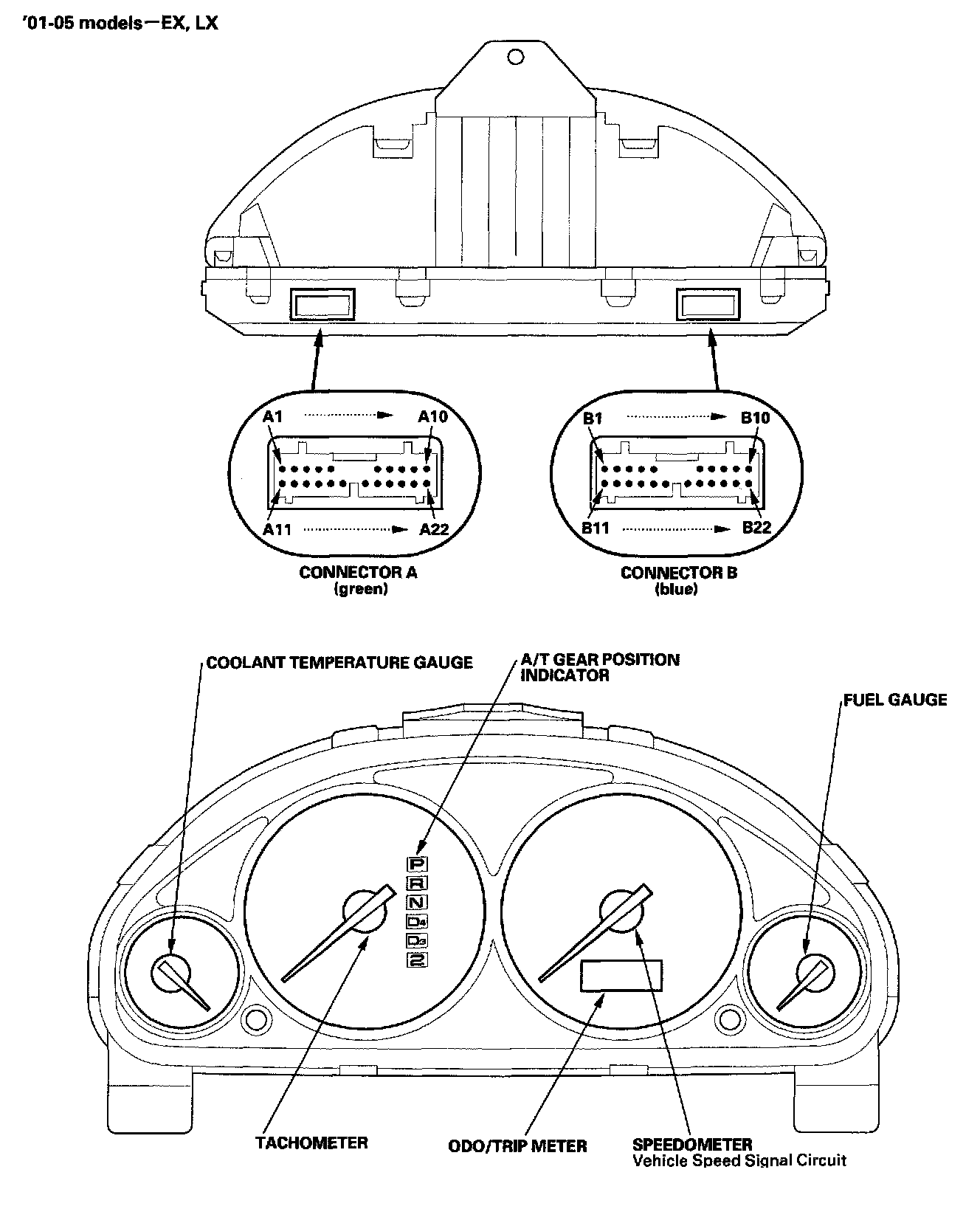

Gauges - Component Location Index:



Gauges - Component Location Index:

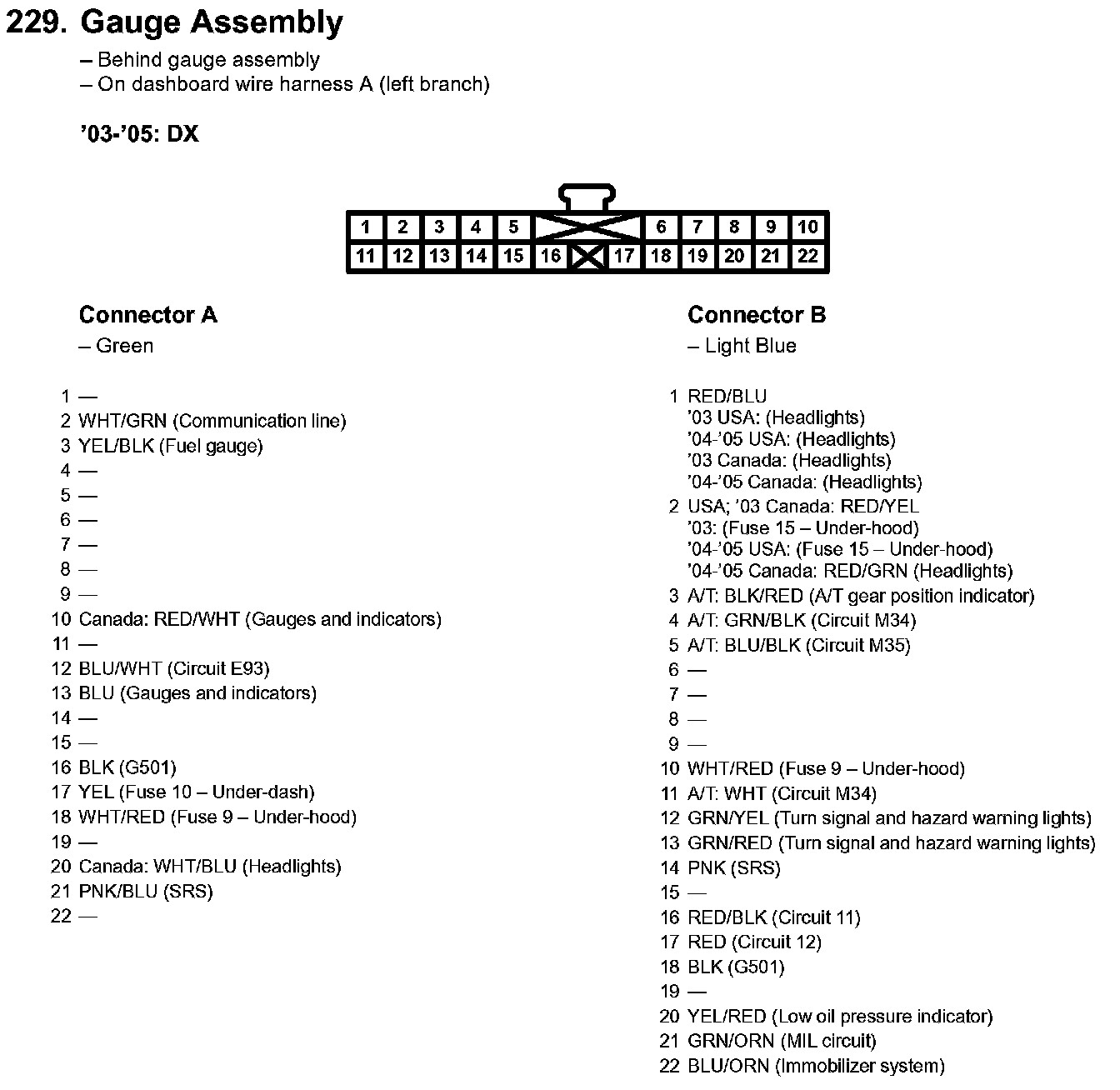

229. Gauge Assembly Part 1:



229. Guage Assembly Part 2:



229. Guage Assembly Part 3:
