Power Window Switch

167. Power Window Switch, Front Passenger's (Sedan Except DX):



168. Power Window Switch, Left Rear Or Right Rear (Sedan Except DX):

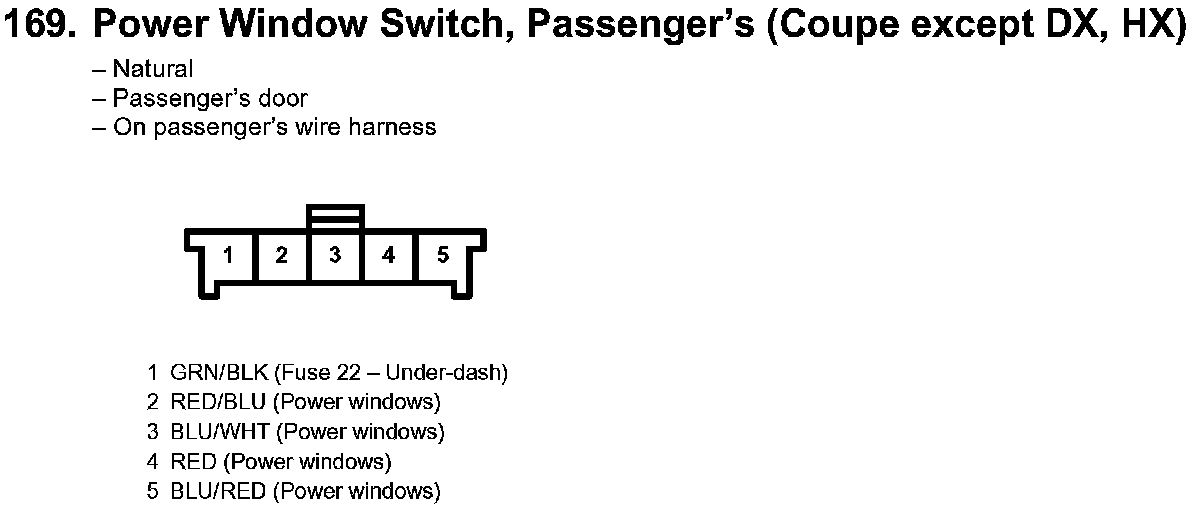

169. Power Window Switch, Passenger's (Coupe Except DX, HX):

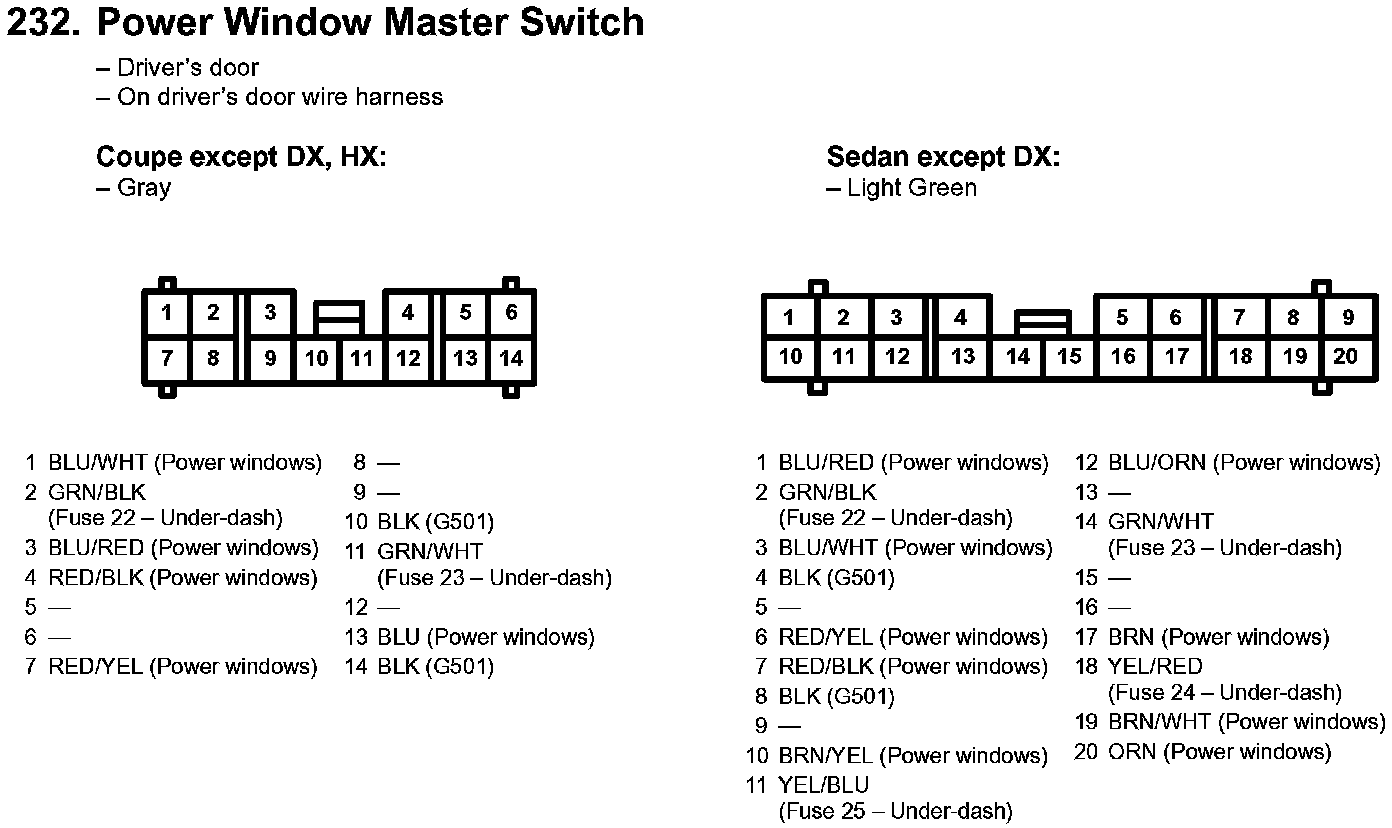

232. Power Window Master Switch:
