Electrical Diagrams

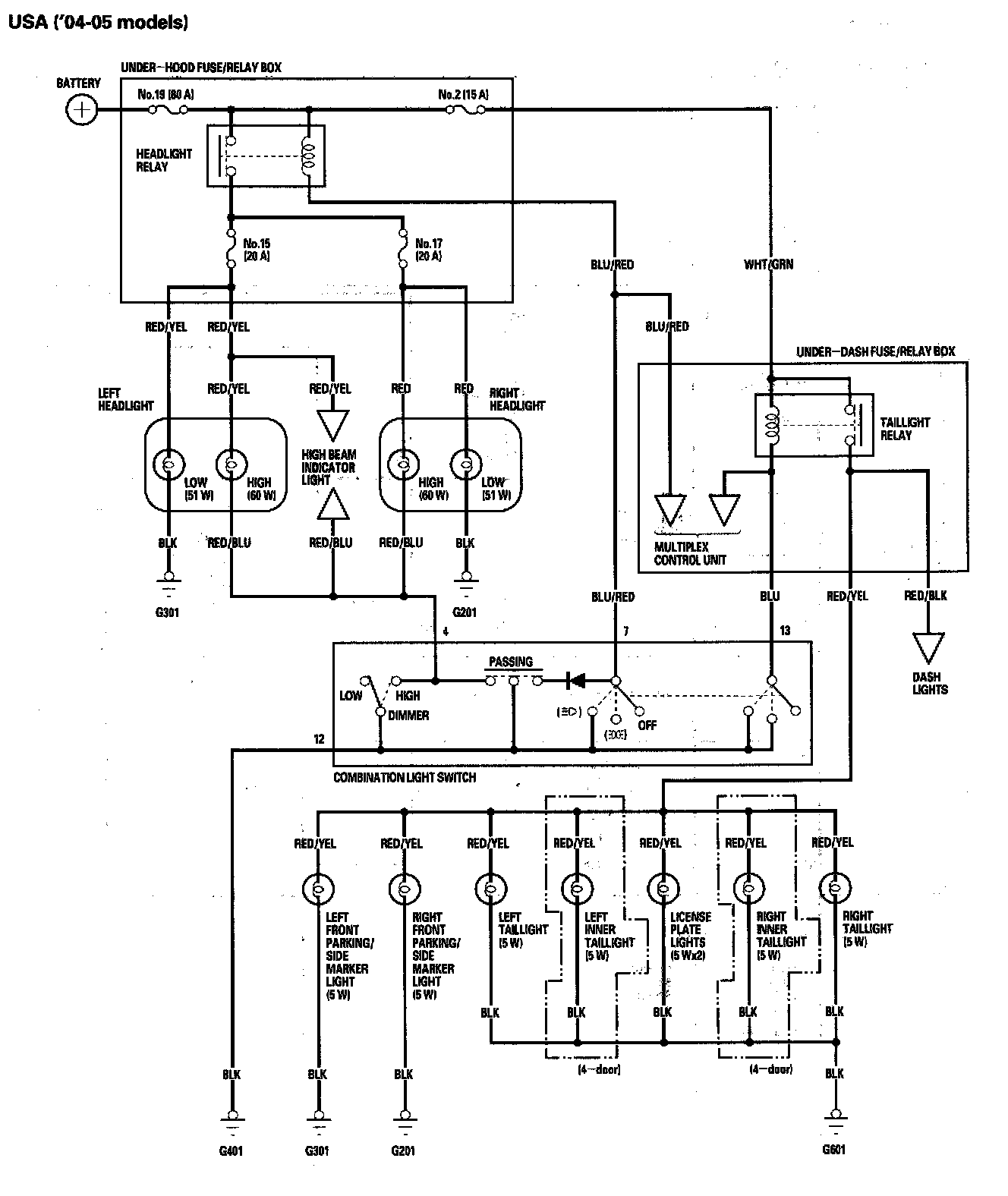

Exterior Lights - Circuit Diagram - USA ('04-05 Models):

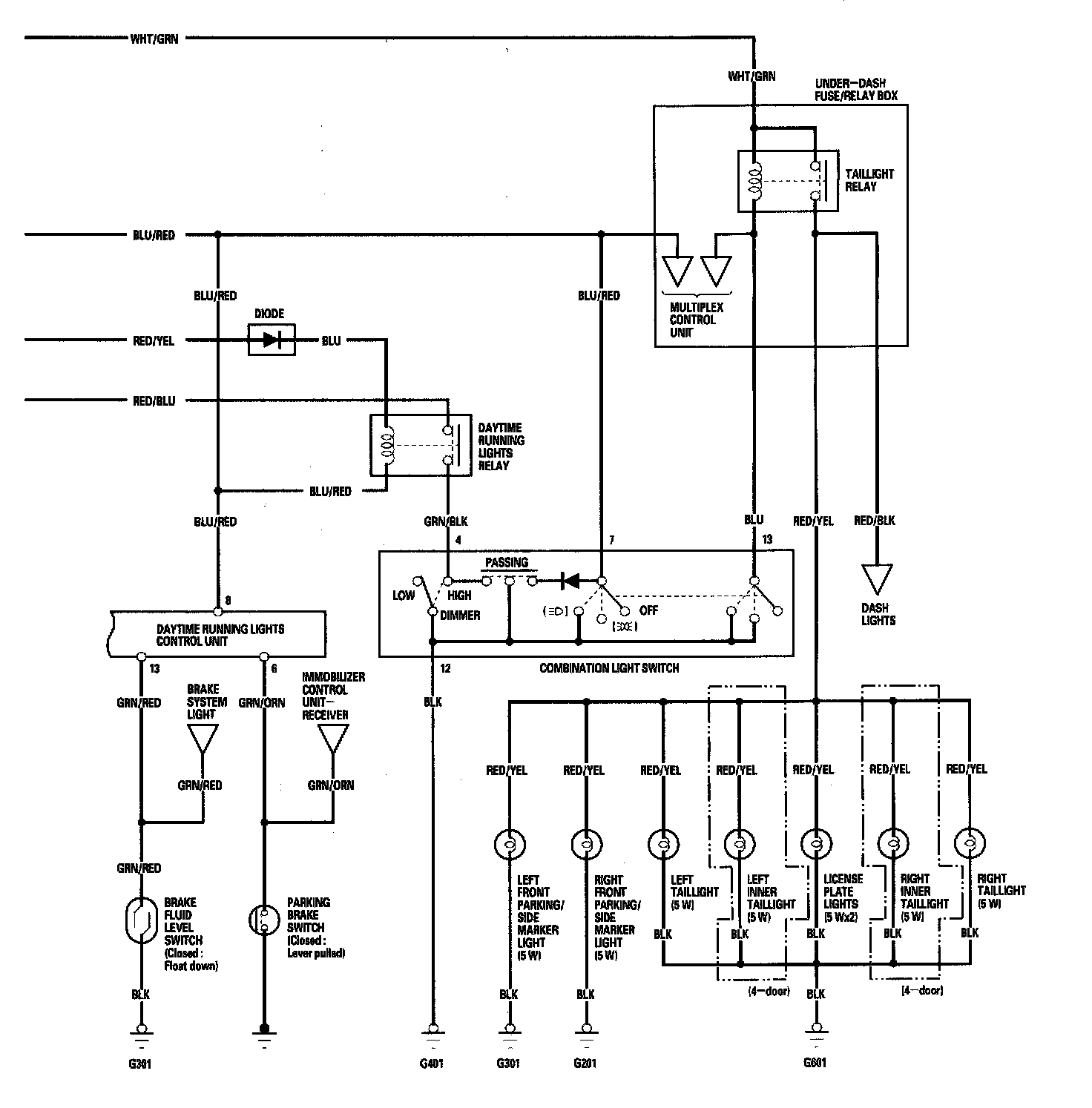

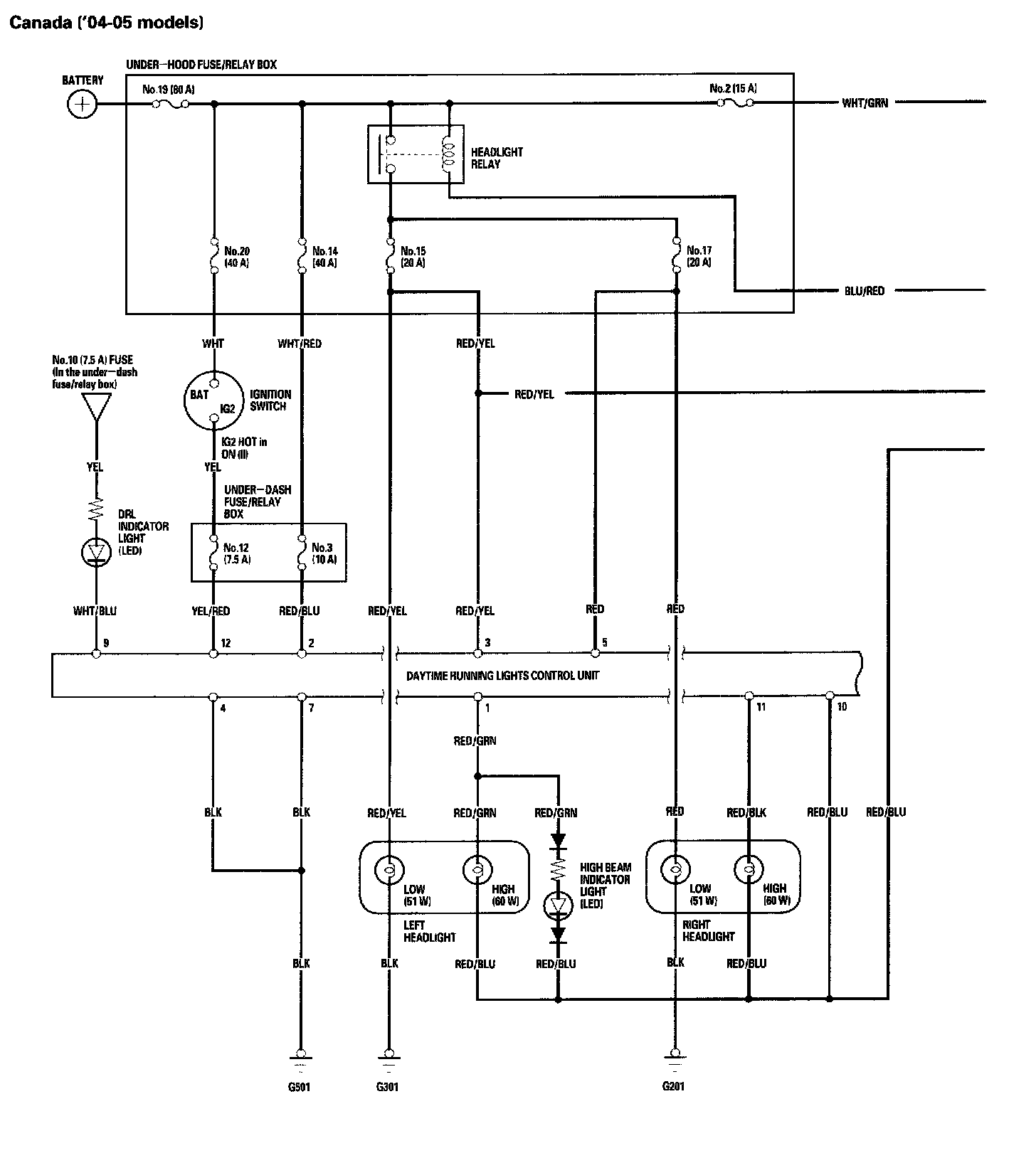

Exterior Lights - Circuit Diagram - Canada ('04-05 Models):



Exterior Lights - Circuit Diagram - Canada ('04-05 Models):
