Starting System: Locations

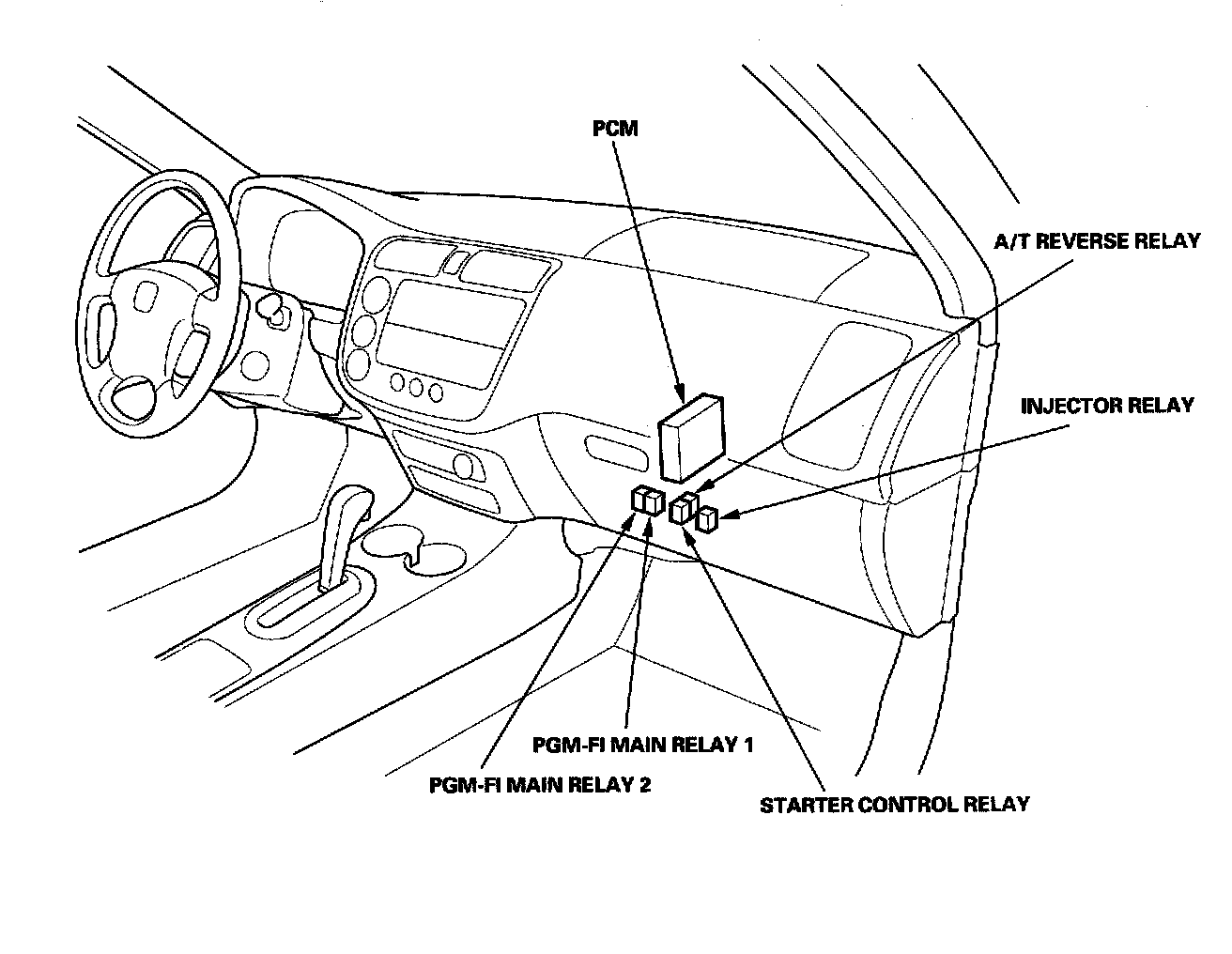

Starting System - Component Location Index:
Starting System - Component Location Index:

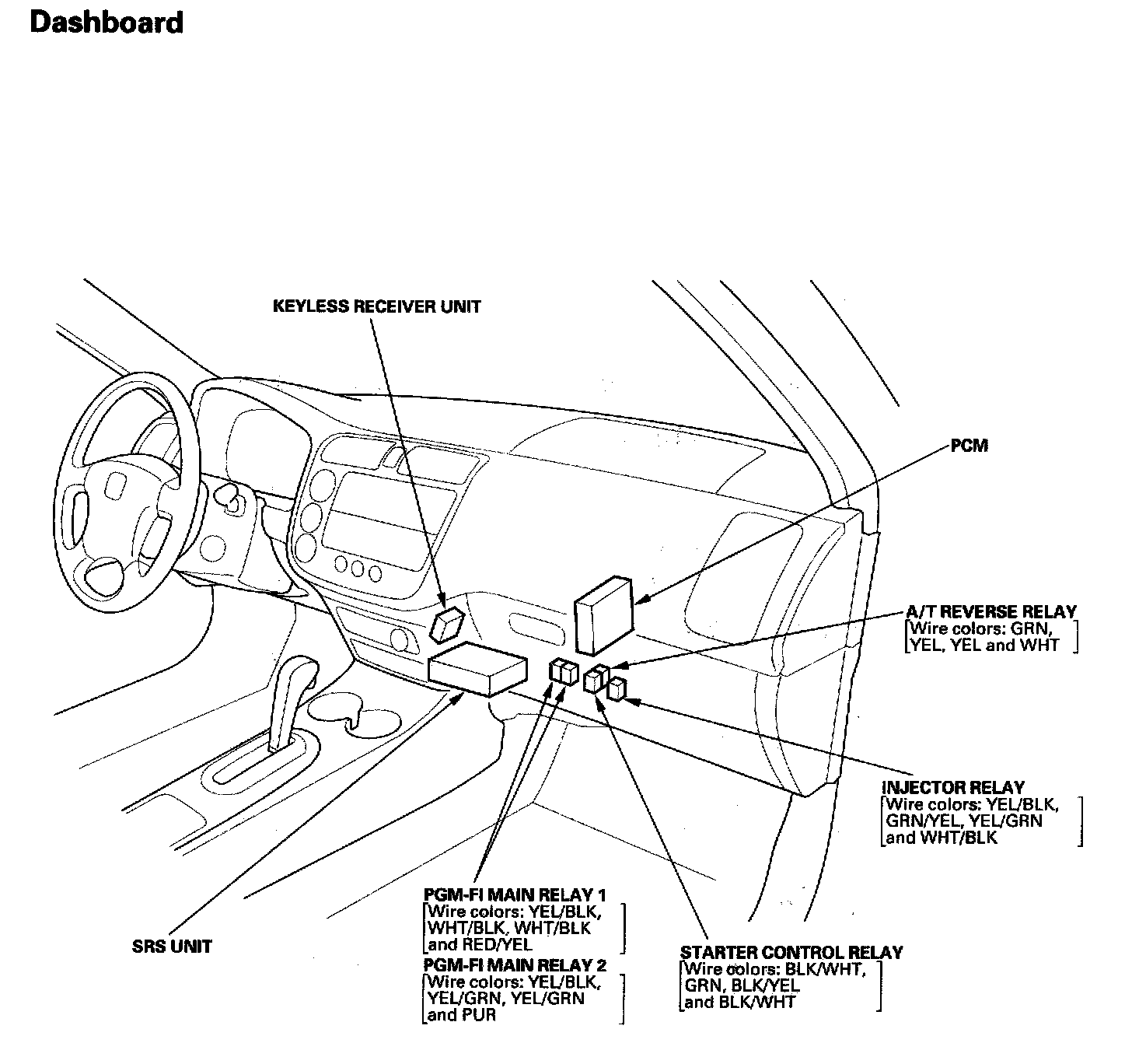

Control Unit Locations - Dashboard:

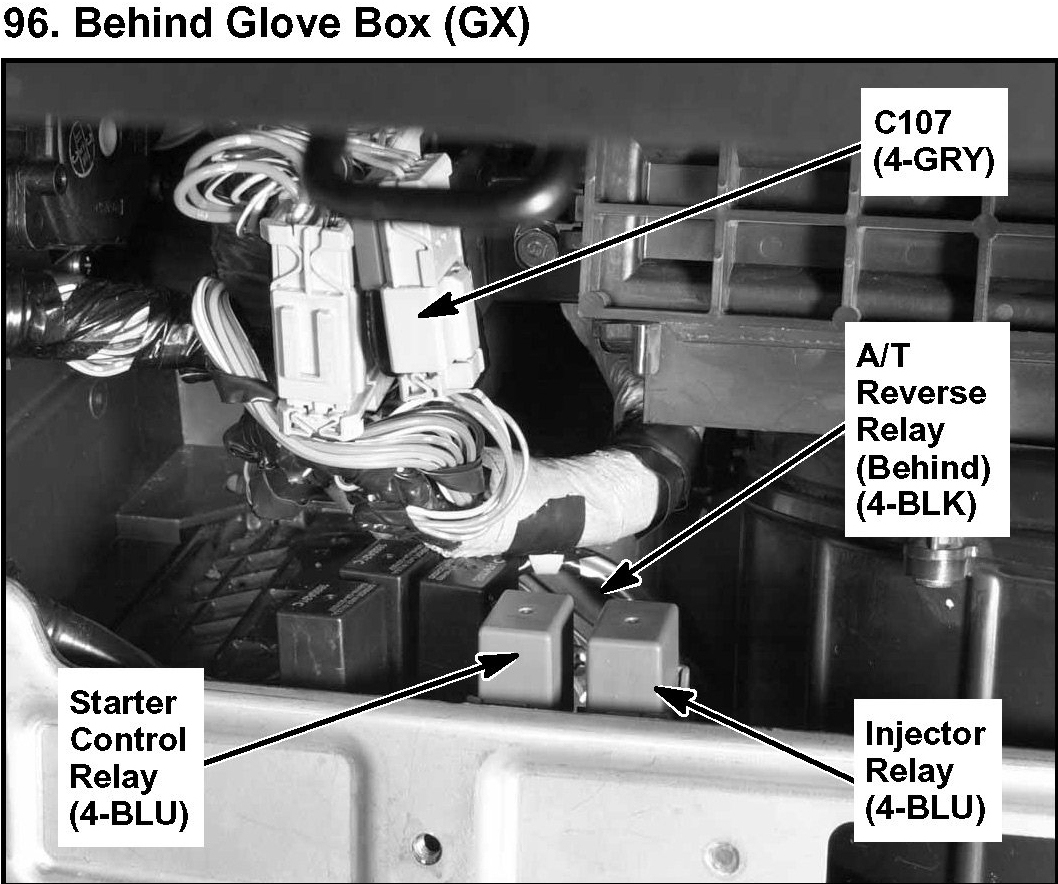

96. Behind Glove Box (GX):
