Connector Views

3. Bypass Contactor:

4. Bypass Resistor:

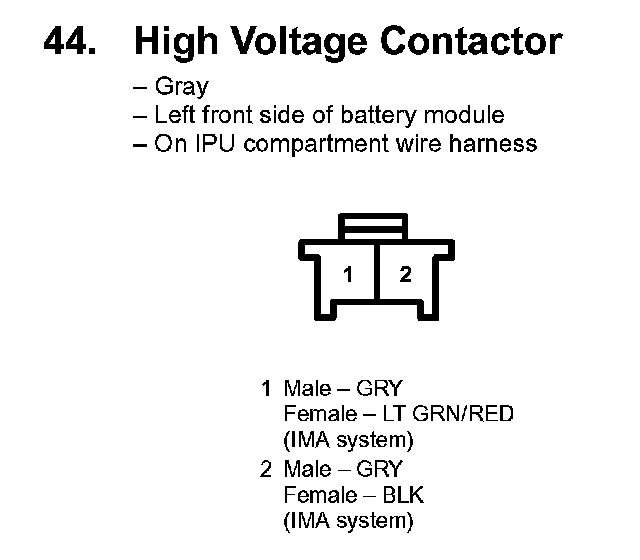

44. High Voltage Contactor:

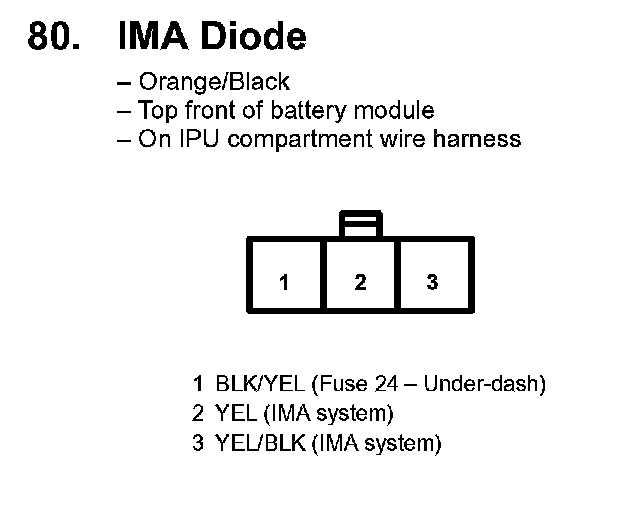

80. IMA Diode:
