Pinout Values and Diagnostic Parameters

System Descriptions

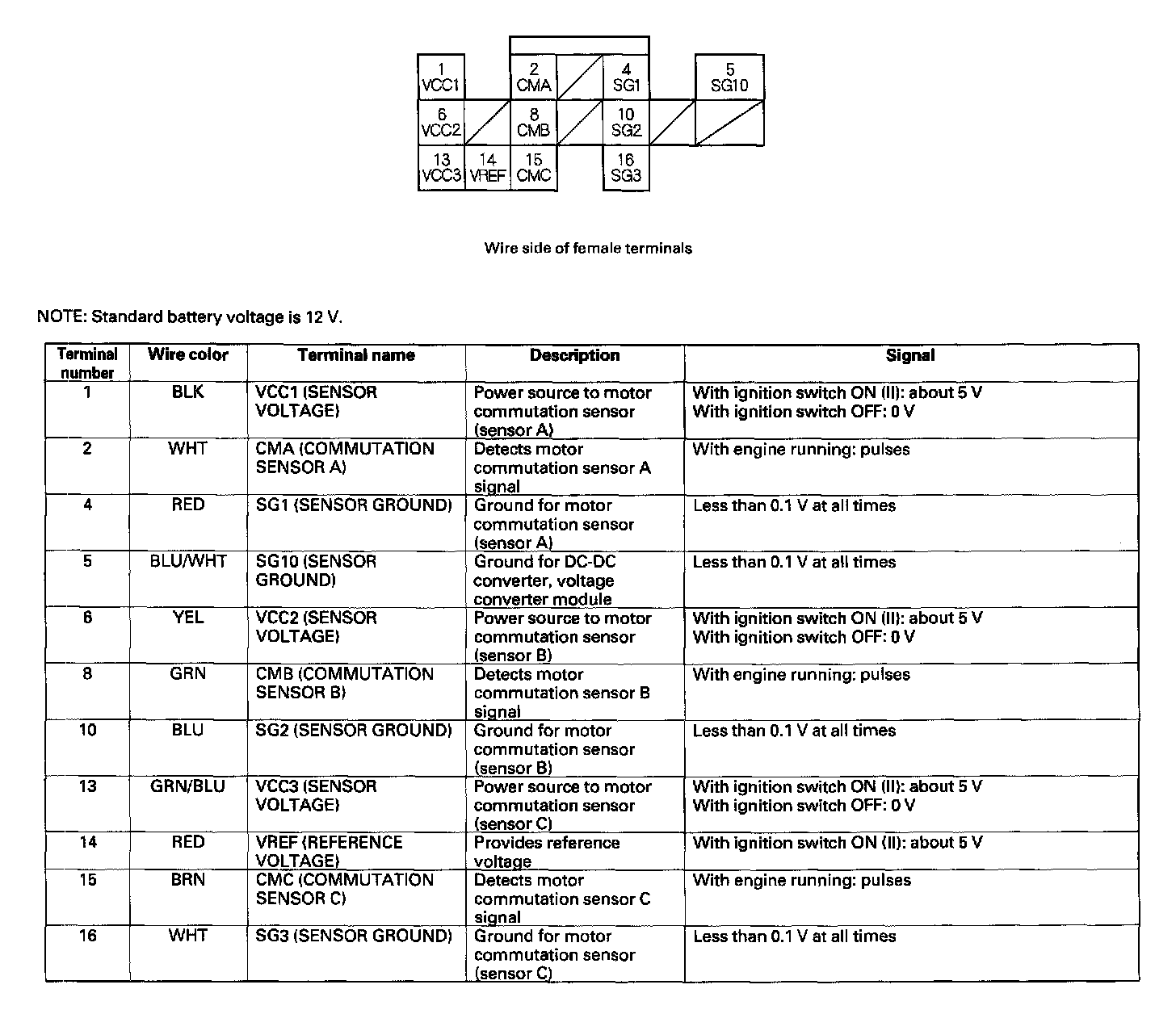

MCM Inputs and Outputs at Connector A (32P)

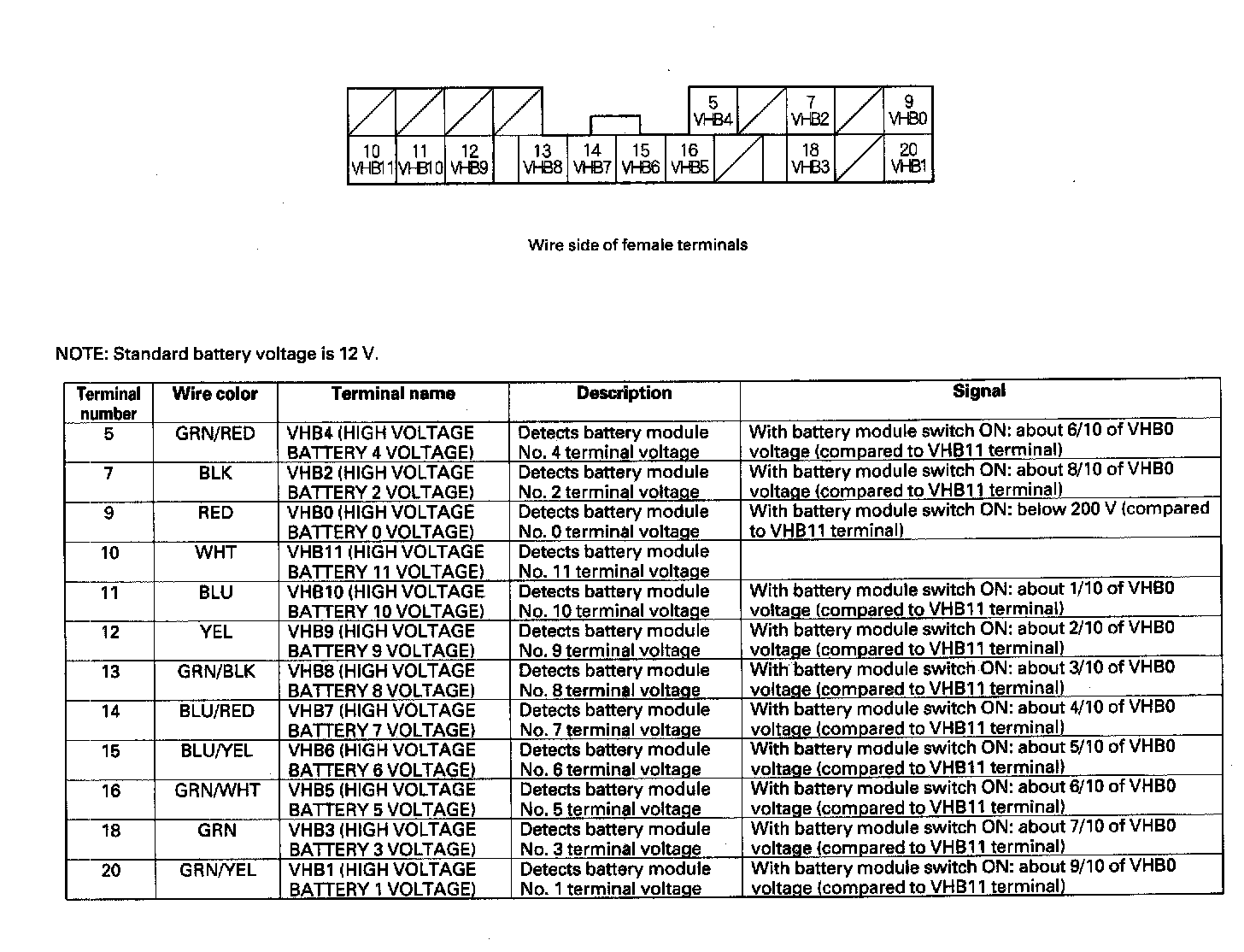

MCM Inputs and Outputs at Connector B (25P)

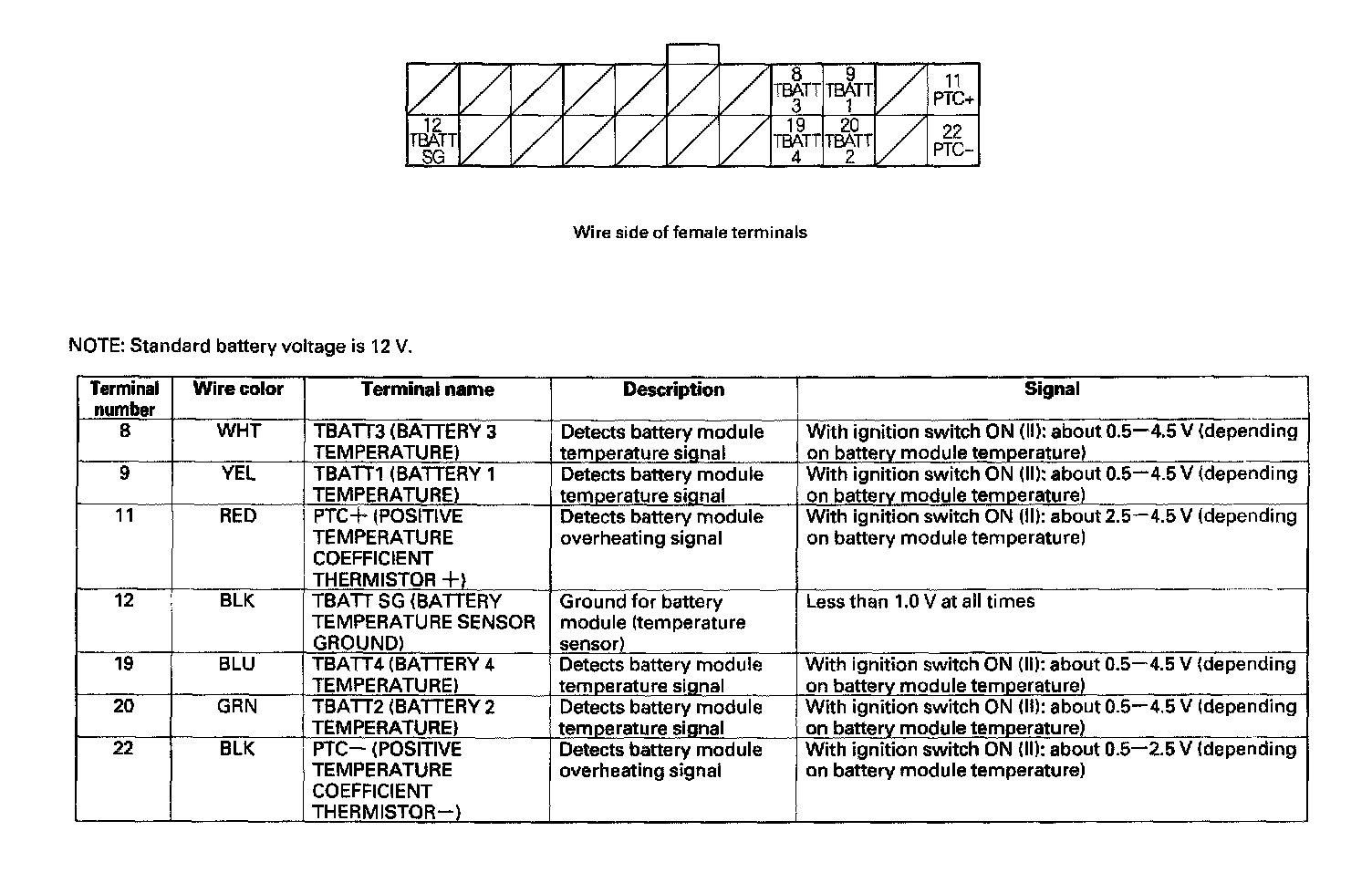

MCM Inputs and Outputs at Connector C (31P)

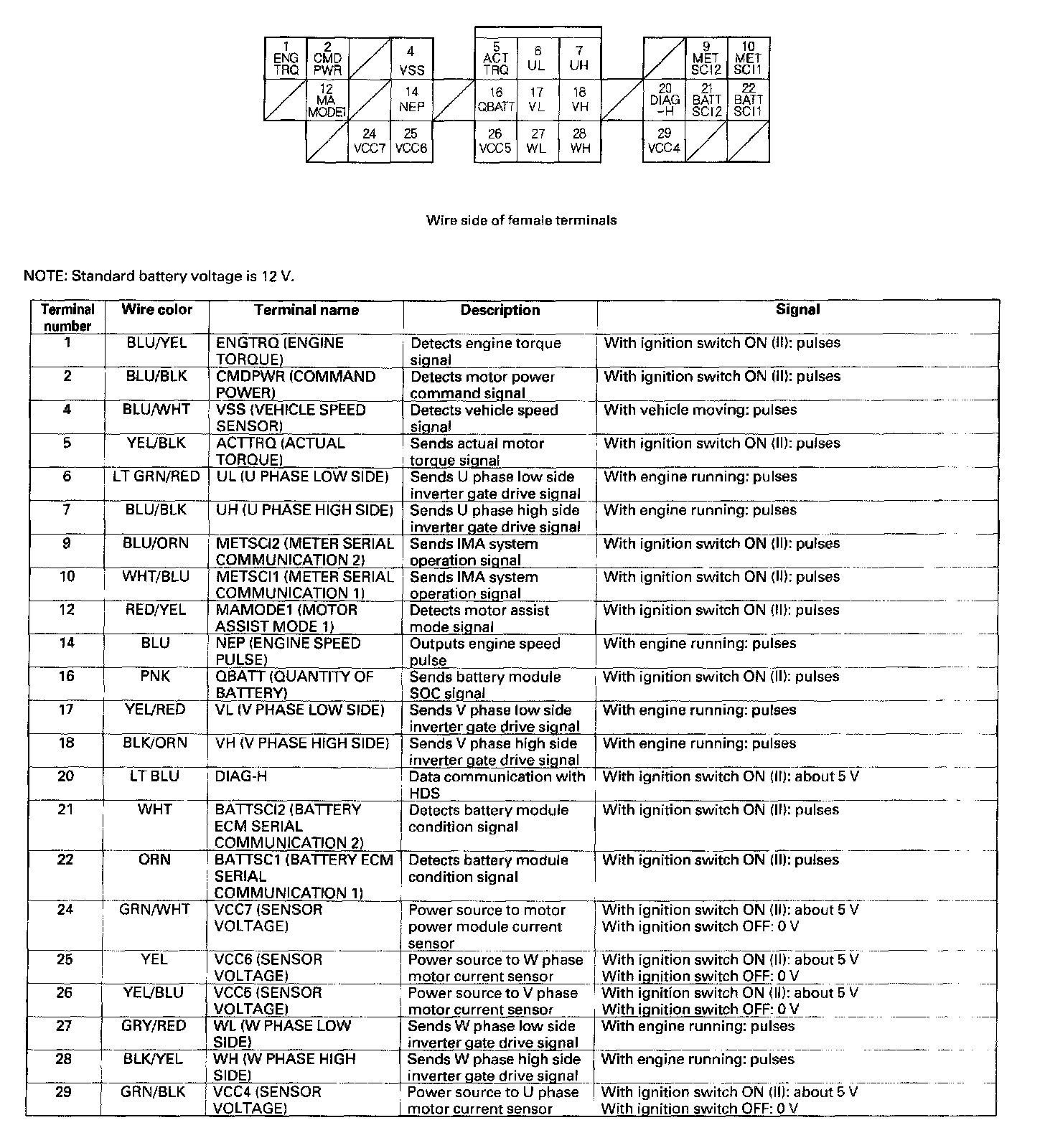

MCM Inputs and Outputs at Connector D (16P)

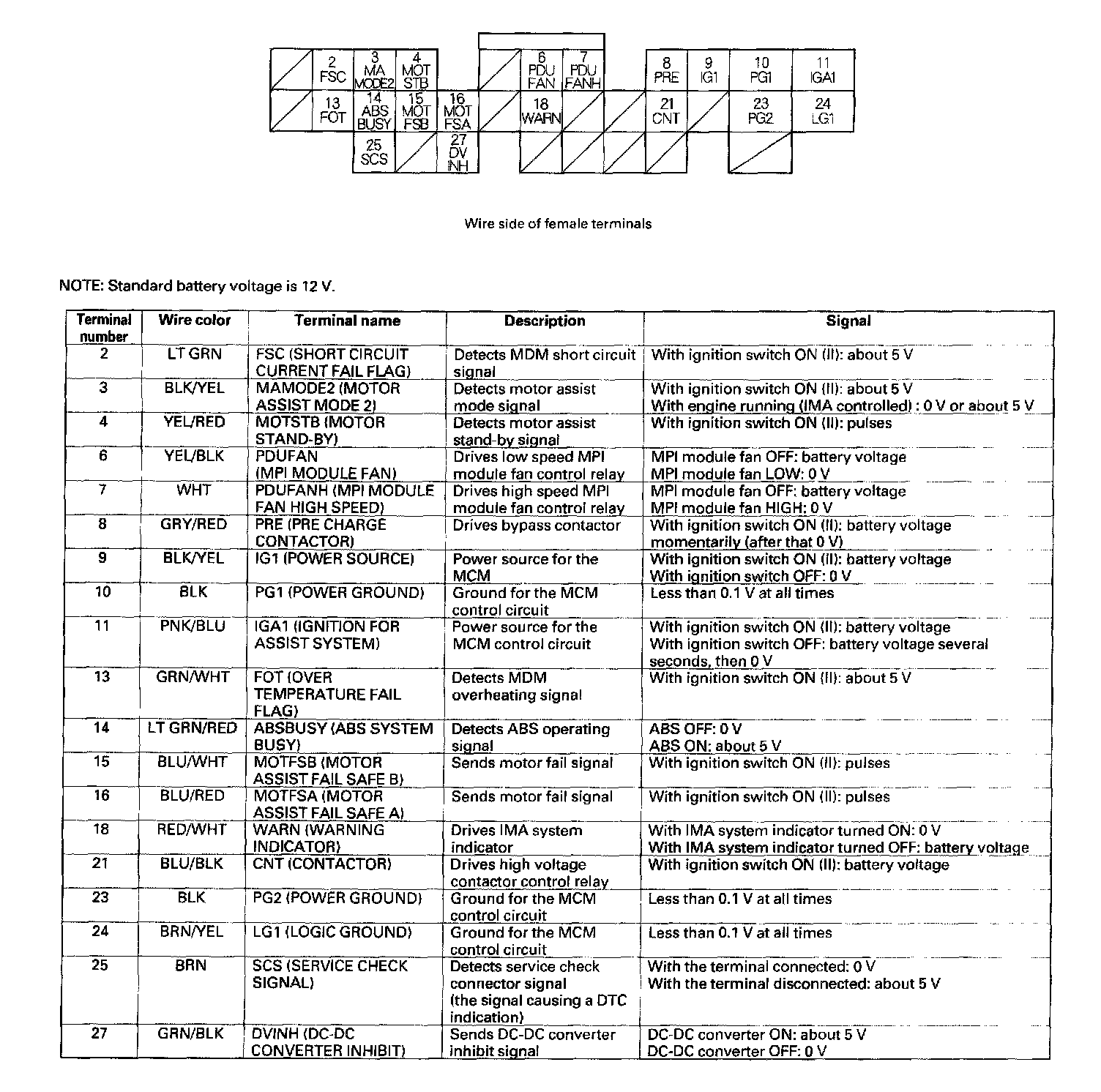

MCM Inputs and Outputs at Connector E (8P)

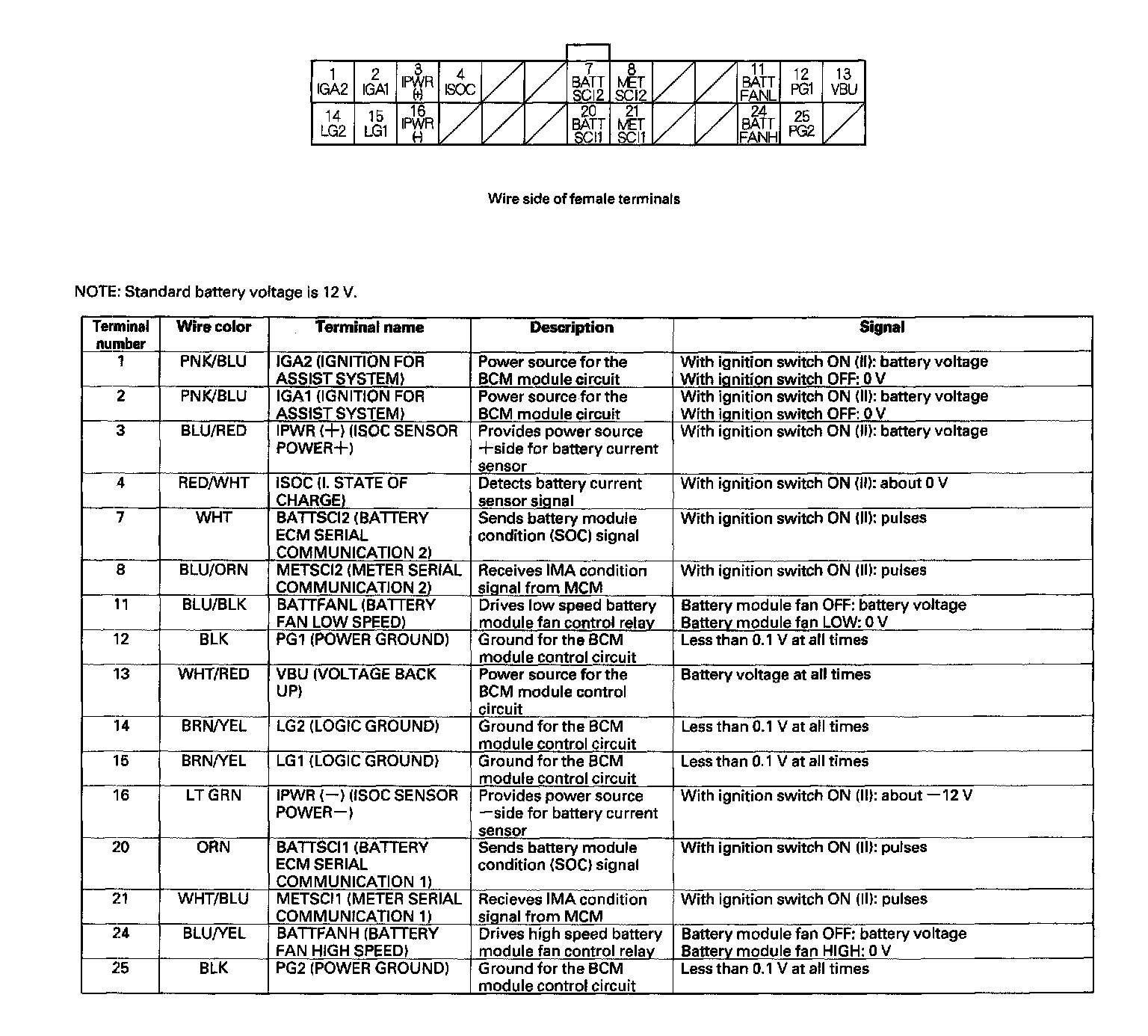

BCM Module Inputs and Outputs at Connector A (26P)

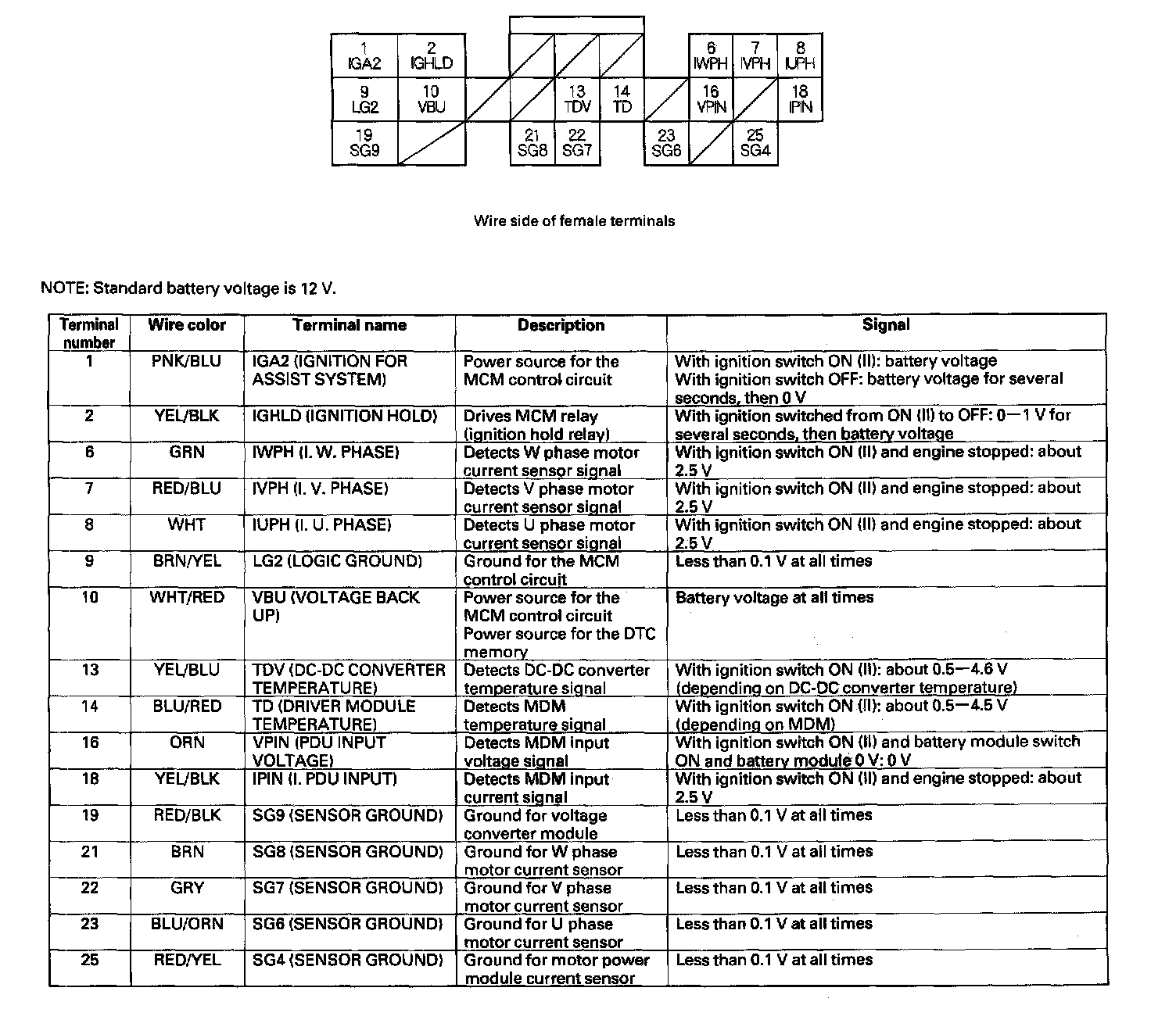

BCM Module Inputs and Outputs at Connector B (22P)

BCM Module Inputs and Outputs at Connector C (20P)
