Electrical Diagrams

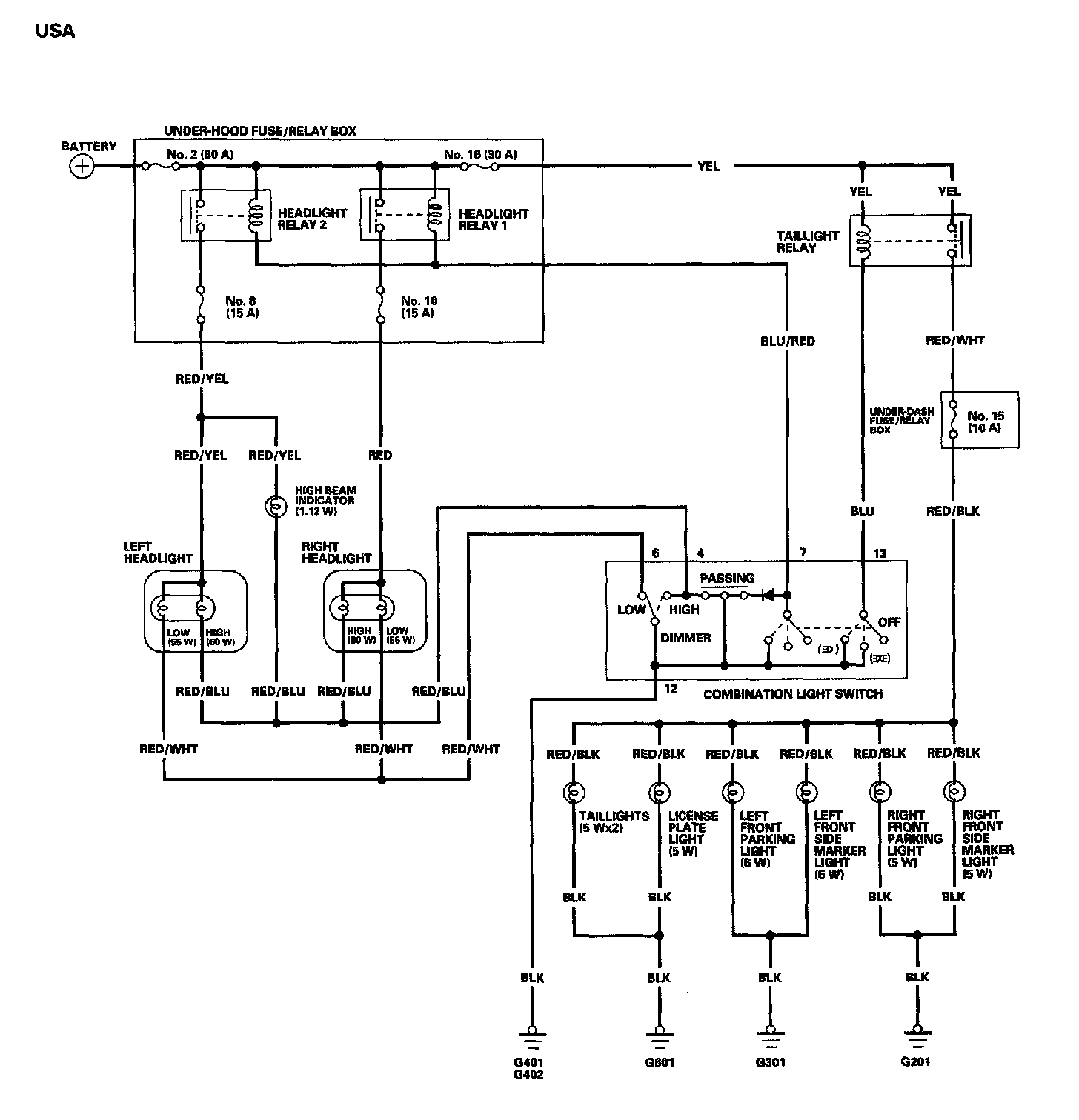

Exterior Lights - Circuit Diagram (USA):

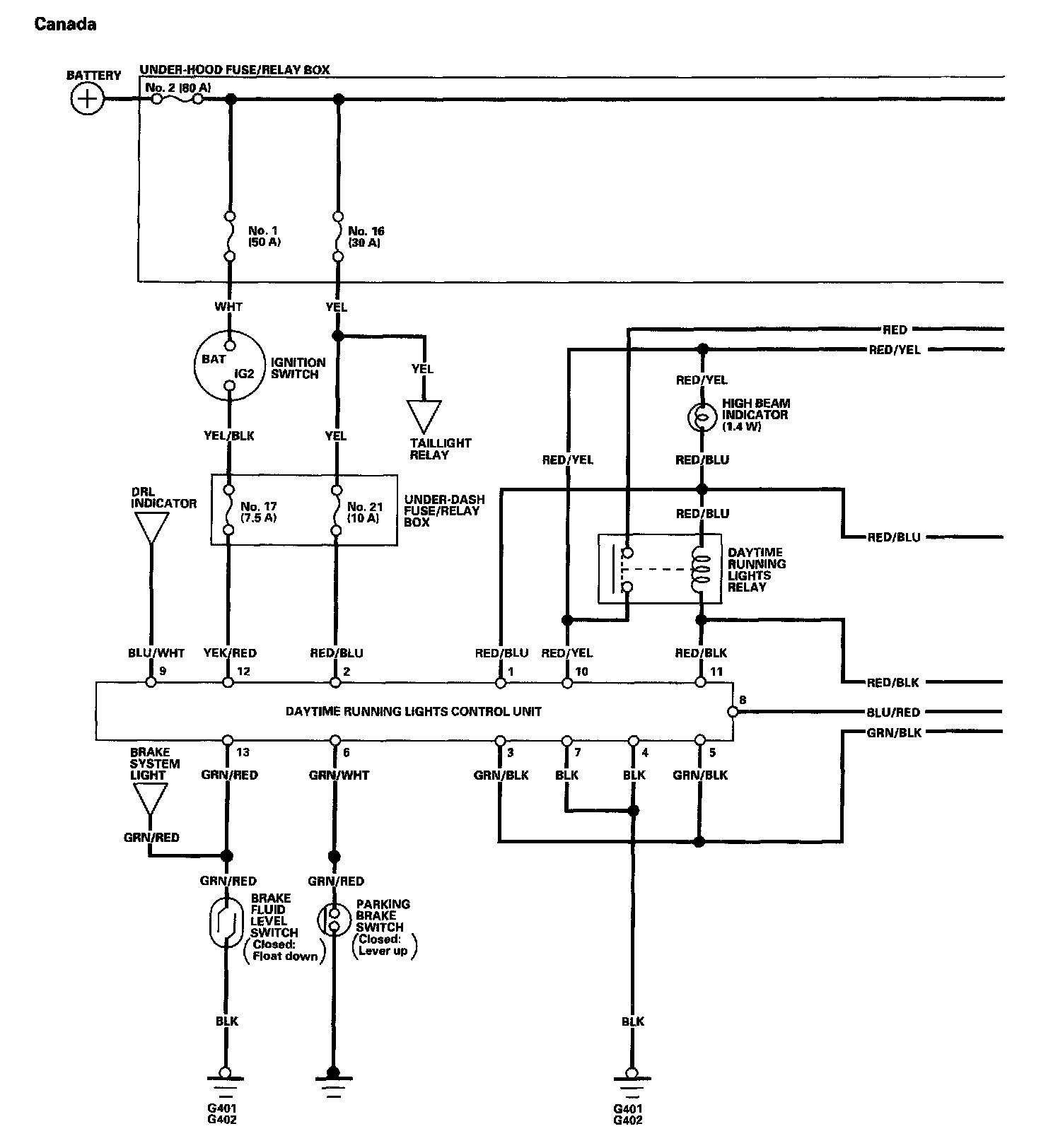

Exterior Lights - Circuit Diagram (Canada) Part 1:

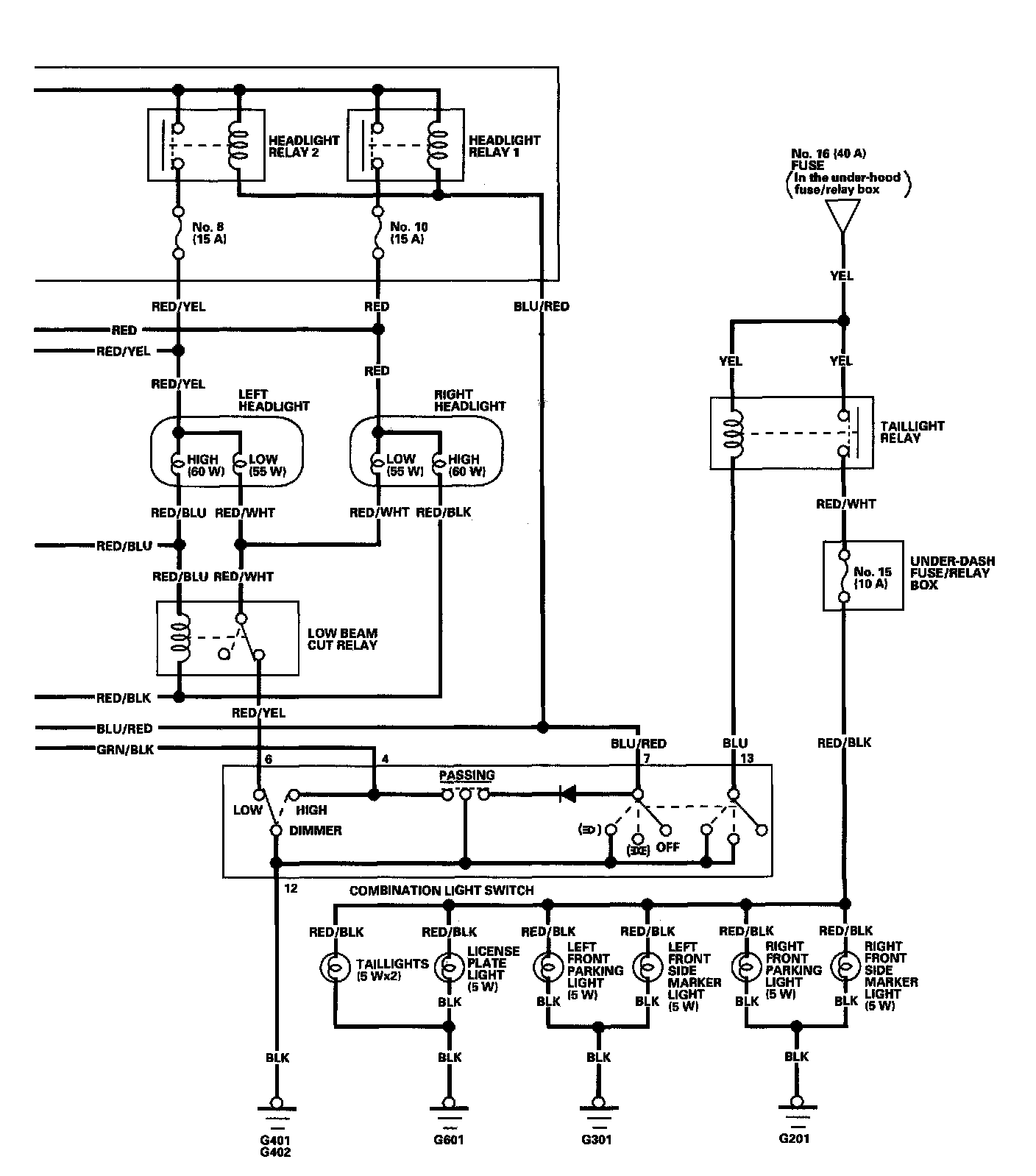

Exterior Lights - Circuit Diagram (Canada) Part 2:
