Steering: Description and Operation

System Description

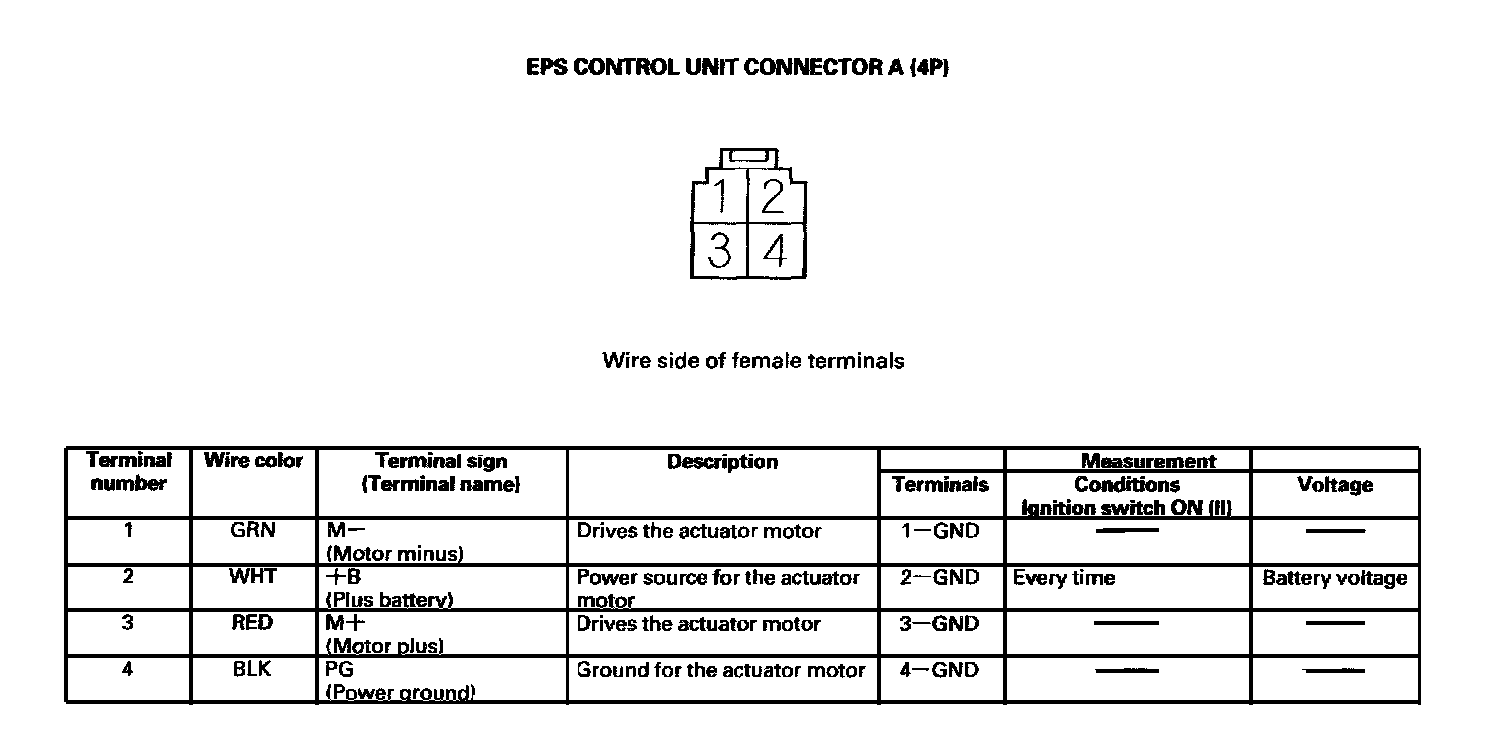

EPS Control Unit Inputs and Outputs for Connector A (2P)

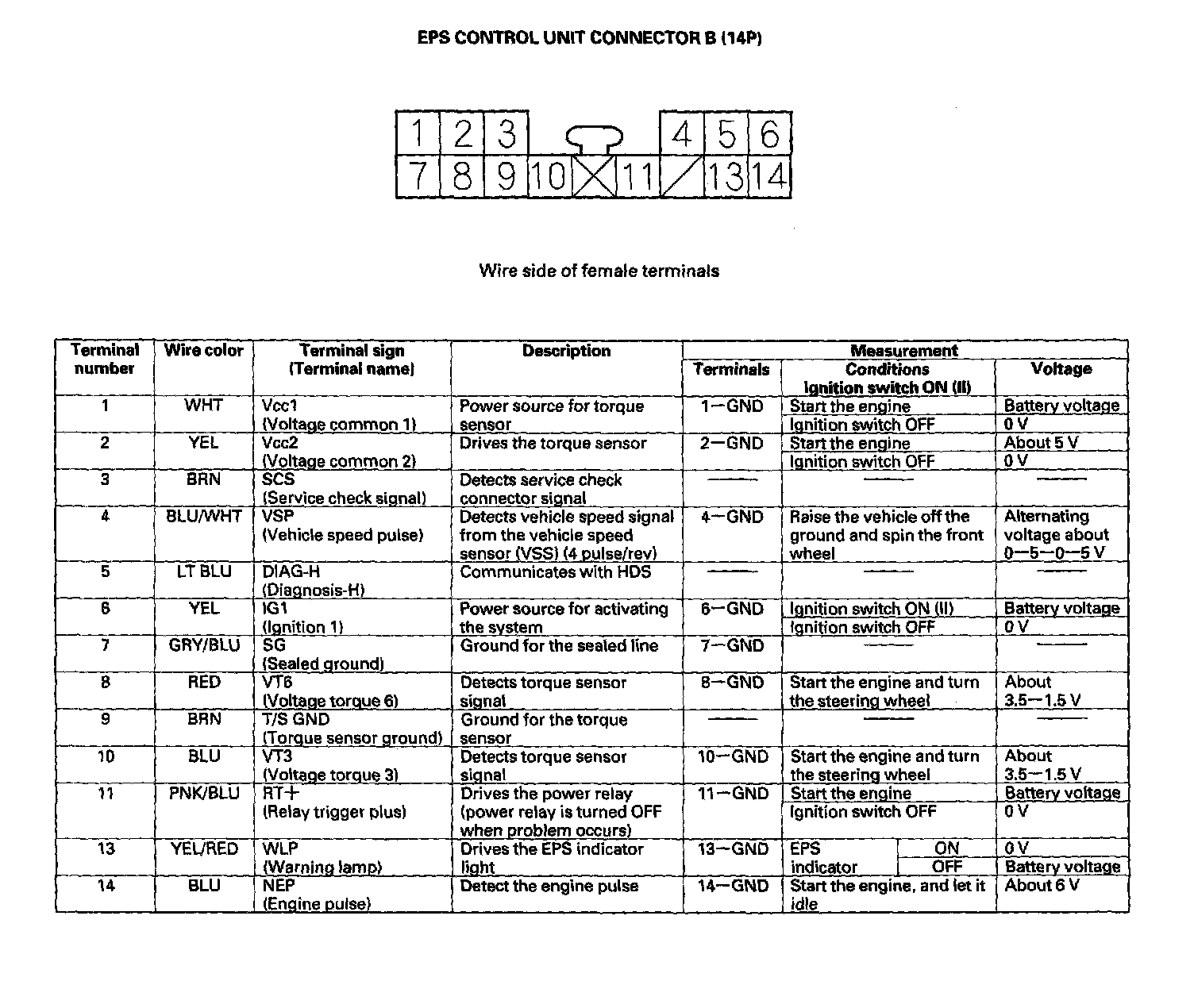

EPS Control Unit Inputs and Outputs for Connector B (14P)
