DTC P0558: Brake Booster Pressure Sensor Circuit High Voltage

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information.

1. Turn the ignition switch ON (II).
2. Check the BBP SENSOR in the DATA LIST with the HDS.

Is there about 4.9 V or more?

YES - Go to step 3.

NO - Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the brake booster pressure sensor and the PCM.

3. Turn the ignition switch OFF.
4. Disconnect the brake booster pressure sensor 3P connector.

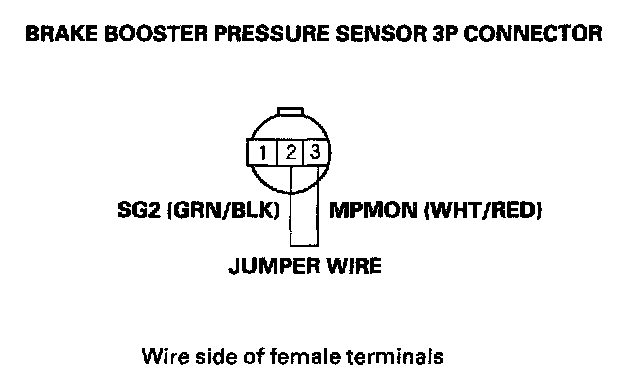

5. Connect brake booster pressure sensor 3P connector terminals No. 2 and No. 3 with a jumper wire.
6. Turn the ignition switch ON (II).
7. Check the BBP SENSOR in the DATA LIST with the HDS.

Is there about 4.9 V or more?

YES - Go to step 8.

NO - Go to step 19.

8. Remove the jumper wire from brake booster pressure sensor 3P connector.




9. Measure voltage between brake booster pressure sensor 3P connector terminals No. 1 and No. 2.

Is there about 5 V?

YES - Go to step 15.

NO - Go to step 10.

10. Turn the ignition switch OFF.
11. Jump the SCS line with the HDS.
12. Disconnect PCM connector C (22P).




13. Connect brake booster pressure sensor 3P connector terminal No. 2 to body ground with a jumper wire.




14. Check for continuity between PCM connector terminal C12 and body ground.

Is there continuity?

YES - Go to step 26,

NO - Repair open in the wire between the PCM (C12) and the brake booster pressure sensor, then go to step 21.

15. Turn the ignition switch OFF.




16. Connect PCM connector terminals C12 and D5with a jumper wire.
17. Turn the ignition switch ON (II).
18. Check the BBP SENSOR in the DATA LIST with the HDS.

Is there about 4.9 V or more?

YES - Go to step 26.

NO - Repair open in the wire between the PCM (D5) and the brake booster pressure sensor, then go to step 21.

19. Turn the ignition switch OFF.
20. Replace the brake booster pressure sensor.
21. Reconnect all connectors.
22. Turn the ignition switch ON (II).
23. Reset the PCM with the HDS.
24. Do the PCM idle learn procedure. Programming and Relearning
25. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P0558 is indicated, check for poor connections or loose terminals at the brake booster pressure sensor and the PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - Troubleshooting is complete.

26. Update the PCM if it does not have the latest software, or substitute a known-good PCM.
27. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P0558 is indicated, check for poor connections or loose terminals at the brake booster pressure sensor and the PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM.
