P0AB7

DTC P0A15: Front Engine Mount Actuator Control Circuit Low Current

DTC P0AB7: Rear Engine Mount Actuator Control Circuit Low Current

NOTE:
- Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information.
- Information marked with an asterisk (*) applies to rear active control engine mount (ACM) actuator.

1. Turn the ignition switch ON (II).
2. Clear the DTC with the HDS.
3. Start the engine, and let it idle 10 seconds.
4. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0A15 and/or P0AB7* indicated?

YES - Go to step 5.

NO - Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the engine mount control unit and the active control engine mount (ACM) actuator or the engine mount control unit and G302.

5. Turn the ignition switch OFF.
6. Disconnect the front (rear)* active control engine mount (ACM) actuator 2P connector.




7. Check the resistance between front (rear)* active control engine mount (ACM) actuator 2P connector terminals No. 1 and No. 2.

Is there about 0.75-1.15 Ohm?

YES - Go to step 8.

NO - Replace the front engine mount or rear engine mount, then go to step 13.

8. Disconnect the engine mount control unit 20P connector.

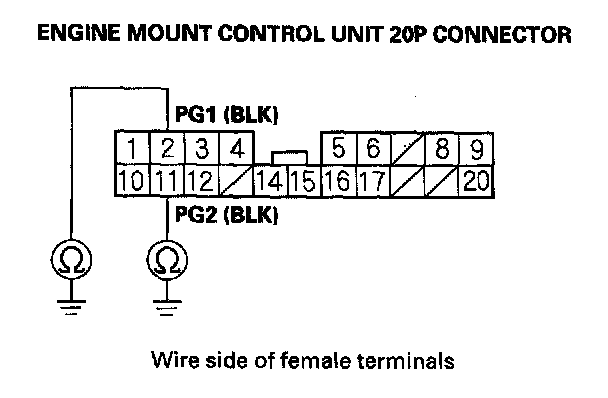

9. Check for continuity between engine mount control unit 20P connector terminals No. 2 and No. 11 and body ground.

Is there continuity?

YES - Go to step 10.

NO - Repair open in the wire between the engine mount control unit (No. 2, No. 11) and G302, then go to step 13.

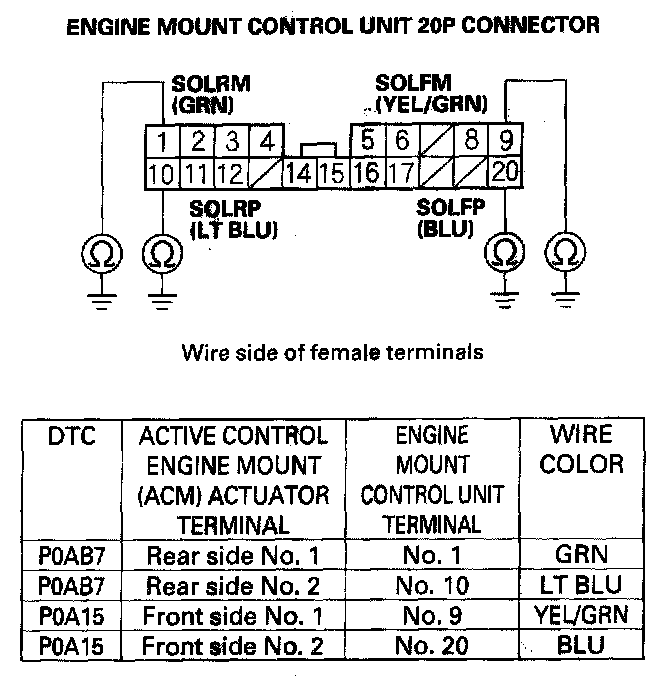

10. Check for continuity between body ground and the appropriate engine mount control unit (see table).

Is there continuity?

YES - Repair short in the wire between the engine mount control unit and the active control engine mount (ACM) actuator, then go to step 13.

NO - Go to step 11.




11. Connect the appropriate active control engine mount (ACM) actuator 2P connector terminal to body ground with a jumper wire (see table).




12. Check for continuity between body ground and the appropriate engine mount control unit20P connector terminal (see table).

Is there continuity?

YES - Replace the engine mount control unit, then go to step 13.

NO - Repair open in the wire between the engine mount control unit and the active control engine mount (ACM) actuator, then go to step 13.

13. Reconnect all connectors.
14. Turn the ignition switch ON (II).
15. Reset the PCM with the HDS.
16. Do the PCM idle learn procedure
17. Let the engine idle 10 seconds.
18. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P0A15 and/or P0AB7* are indicated, check for poor connections or loose terminals at the engine mount control unit and the active control engine mount (ACM) actuator, then go to step 1. If any other temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - Troubleshooting is complete.
