P15B0
DTC P15BO: CKP Signal MalfunctionNOTE:
- Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information.
- If DTC P0335 and/or P0339 is stored at the same time as DTC P0335, troubleshoot DTC P0335 and/or P0339 first, then recheck for DTC P15BO.
1. Turn the ignition switch ON (II).
2. Clear the DTC with the HDS.
3. Start the engine, and let it idle 10 seconds.
4. Check for Temporary DTCs or DTCs with the HDS.
Is DTC P15BO indicated?
YES - Go to step 5.
NO - Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the PCM and the engine mount control unit
5. Turn the ignition switch OFF.
6. Check for poor connections at PCM connector E (31P) and the engine mount control unit 20P connector.
Are the connections OK?
YES - Go to step 7.
NO - Repair the poor connections, then go to step 23.
7. Disconnect CKP sensor A/B 6P connector.
8. Turn the ignition switch ON (II).

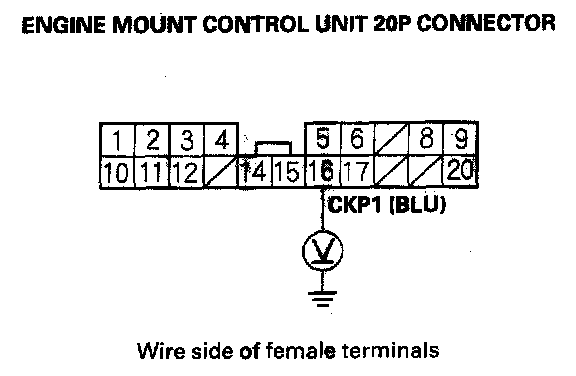

9. Measure voltage between engine mount control unit 20P connector terminal No. 16 and body ground.
Is there about 5 V?
YES - Go to step 10.
NO - Go to step 13.
10. Turn the ignition switch OFF.
11. Disconnect the engine mount control unit20P connector.

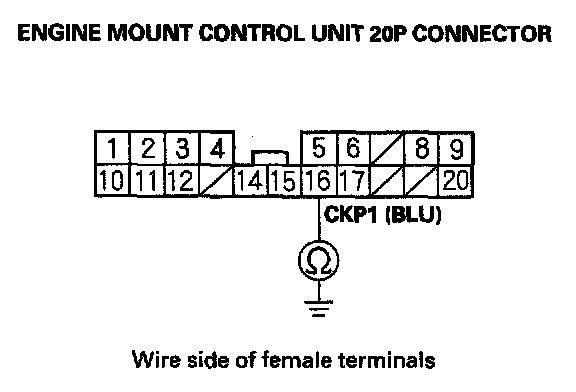

12. Check for continuity between engine mount control unit20P connector terminal No. 16 and body ground.
Is there continuity?
YES - Repair short in the wire between the PCM (E7) and the engine mount control unit (No. 16), then go to step 22.
NO - Go to step 27.
13. Turn the ignition switch OFF.

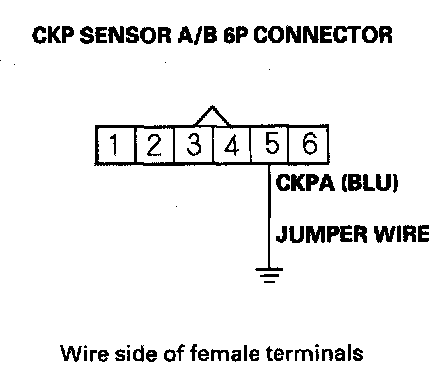

14. Connect CKP sensor A/B 6P connector terminal No. 5 to body ground with a jumper wire.
15. Turn the ignition switch ON (II).
16. Measure voltage between engine mount control unit 20P connector terminal No. 16 and body ground.
Is there about 0 V?
YES - Replace the engine mount control unit, then go to step 22.
NO - Go to step 17.
17. Turn the ignition switch OFF.
18. Disconnect the engine mount control unit 20P connector.
19. Jump the SCS line with the HDS.
20. Disconnect PCM connector E (31P).

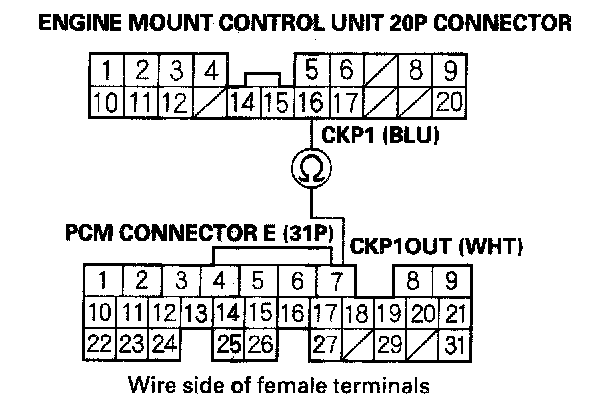

21. Check for continuity between PCM connector terminal E7 and engine mount control unit 20P connector terminal No. 16.
Is there continuity?
YES - Go to step 27.
NO-Repair open in the wire between the PCM (E7) and the engine multi control unit (No. 16), then go to step 22.
22. Reconnect all connectors.
23. Turn the ignition switch ON (II).
24. Reset the PCM with the HDS.
25. Do the PCM idle learn procedure. Programming and Relearning
26. Check for Temporary DTCs or DTCs with the HDS.
Are any Temporary DTCs or DTCs indicated?
YES - IfDTCP15BO is indicated, check for poor connections or loose terminals at the engine mount control unit and the PCM, the go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.
NO - Troubleshooting is complete.
27. Update the PCM if it does not have the latest software, or substitute a known-good PCM.
28. Check for Temporary DTCs or DTCs with the HDS.
Are any Temporary DTCs or DTCs indicated?
YES - If DTC P15BO is indicated, check for poor connections or loose terminals at the engine mount control unit and the PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.
NO - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM.
