P2648

DTC P2648; Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Circuit Low Voltage

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information.

1. Turn the ignition switch ON (II).
2. Clear the DTC with the HDS.
3. Check for DTCs in the DTCs MENU with the HDS.

Is DTC P2648 indicated?

YES - Go to step 4.

NO - Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the rocker arm oil control solenoid (VTEC solenoid valve) and the PCM.

4. Turn the ignition switch OFF.
5. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) 2P connector.

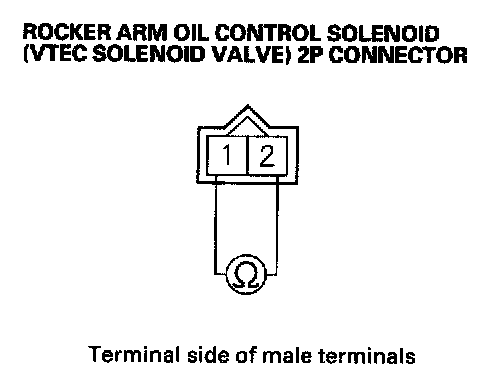

6. Measure resistance between rocker arm oil control solenoid (VTEC solenoid valve) 2P connector terminals No. 1 and No. 2.

Is there 14-30 Ohm?

YES - Go to step 7.

NO - Go to step 12.




7. Check for continuity between rocker arm oil control solenoid (VTEC solenoid valve) 2P connector terminal No. 1 and body ground.

Is there continuity?

YES - Go to step 8.

NO - Repair open in the wire between the rocker arm oil control solenoid (VTEC solenoid valve) and G101,then go to step 13.

8. Jump the SCS line with the HDS.
9. Disconnect PCM connector E (31P).




10. Connect rocker arm oil control solenoid (VTEC solenoid valve) 2P connector terminal No. 2 to body ground with a jumper wire.




11. Check for continuity between PCM connector terminal E21 and body ground.

Is there continuity?

YES - Go to step 19.

NO - Repair open in the wire between the PCM (E21) and the rocker arm oil control solenoid (VTEC solenoid valve), then go to step 13.

12. Replace the rocker arm oil control solenoid (VTEC solenoid valve).
13. Reconnect all connectors.
14. Turn the ignition switch ON (II).
15. Reset the PCM with the HDS.
16. Do the PCM idle learn procedure. Programming and Relearning
17. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P2648 is indicated, check for poor connections or loose terminals at the rocker arm oil control solenoid (VTEC solenoid valve) and the PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - Go to step 18.

18. Monitor the OBD STATUS for DTC P2648 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES - Troubleshooting is complete.

NO - If the screen indicates FAILED, check for poor connections or loose terminals at the rocker arm oil control solenoid (VTEC solenoid valve) and the PCM, then go to step 1. If the screen indicates NOT COMPLETED, go to step 16 and recheck.

19. Update the PCM if it does not have the latest software, or substitute a known-good PCM.
20. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P2648 is indicated, check for poor connections or loose terminals at the rocker arm oil control solenoid (VTEC solenoid valve) and the PCM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM.
