DVD-ROM Replacement

DVD-ROM Replacement

NOTE: When the DVD-ROM is re-inserted or replaced, a map match must be done.

1. Turn the ignition switch ON (II).

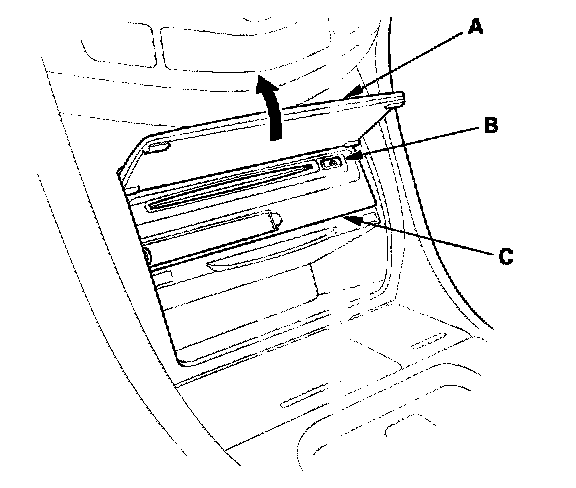

2. Open the front cover (A) center console.
3. Press the EJECT button (B) on the navigation unit (C).
4. Remove the DVD-ROM.
5. Insert the new DVD-ROM.
6. Close the front cover. Do not turn the ignition switch OFF until the data is downloaded to the navigation unit.

NOTE: After servicing, the front cover must be closed. If you start up the navigation system with the front cover open, the display will indicate "Navigation unit door is open or No DVD Disk installed. Please check system."
