XM Receiver

XM Receiver Replacement

1. Open the trunk lid.
2. Remove the rear shelf.
3. Loosen the three nuts from the XM receiver.

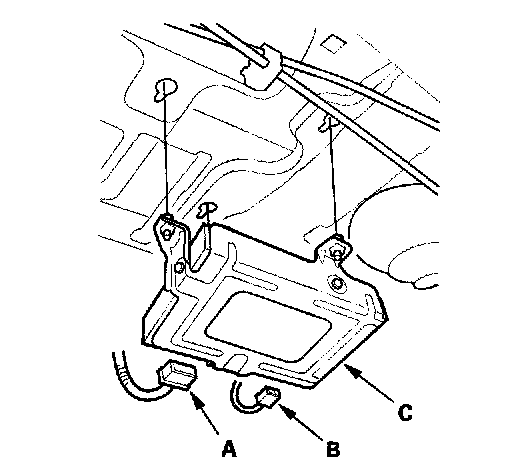

4. Disconnect the 14P connector (A) and 2P connector (B) from the XM receiver (C), and remove the receiver.
5. Install in the reverse order of removal.
