Active Noise Control Unit Removal/Installation
Active Noise Control Unit Removal/Installation1. Remove the audio-HVAC display module.

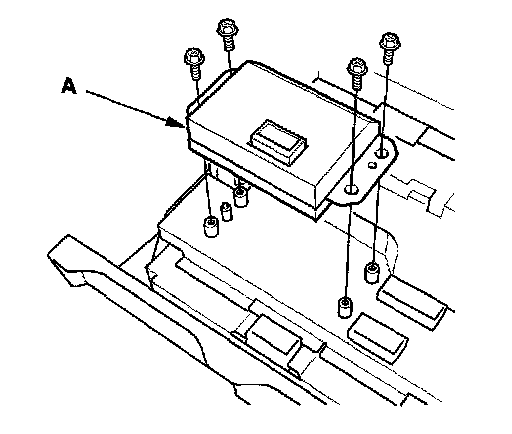

2. Remove the screws and the active noise control unit (A).
3. Install in the reverse order of removal.
1. Remove the audio-HVAC display module.
2. Remove the screws and the active noise control unit (A).
3. Install in the reverse order of removal.
