Mirror Housing Cover

Mirror Housing Cover Replacement

1. Remove the mirror holder.

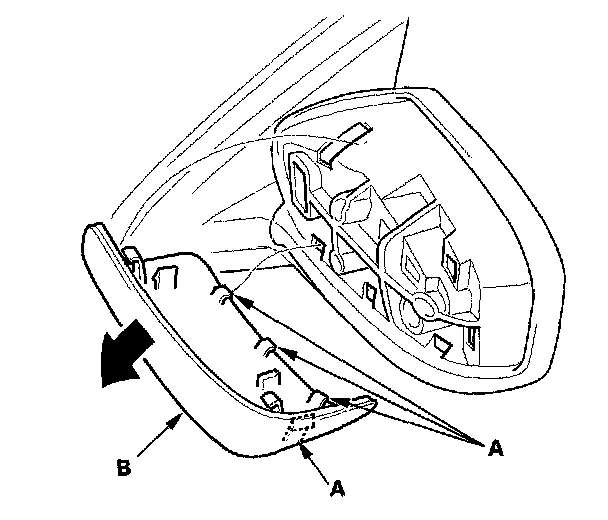

2. From the mirror holder opening, release the hooks (A) of the mirror housing cover (B).




3. Release the hooks (A), then remove the mirror housing cover (B).
4. Install the mirror housing cover in the reverse order of removal.
