Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC
212. Air Mix Control Motor, Driver's:

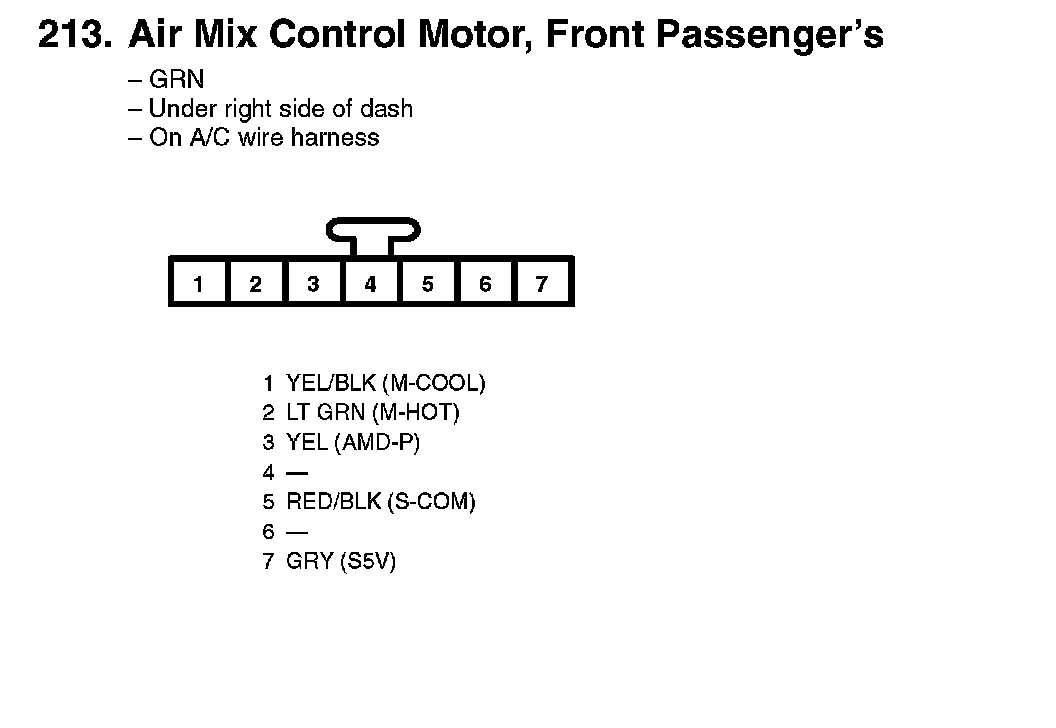

213. Air Mix Control Motor, Front Passenger's:

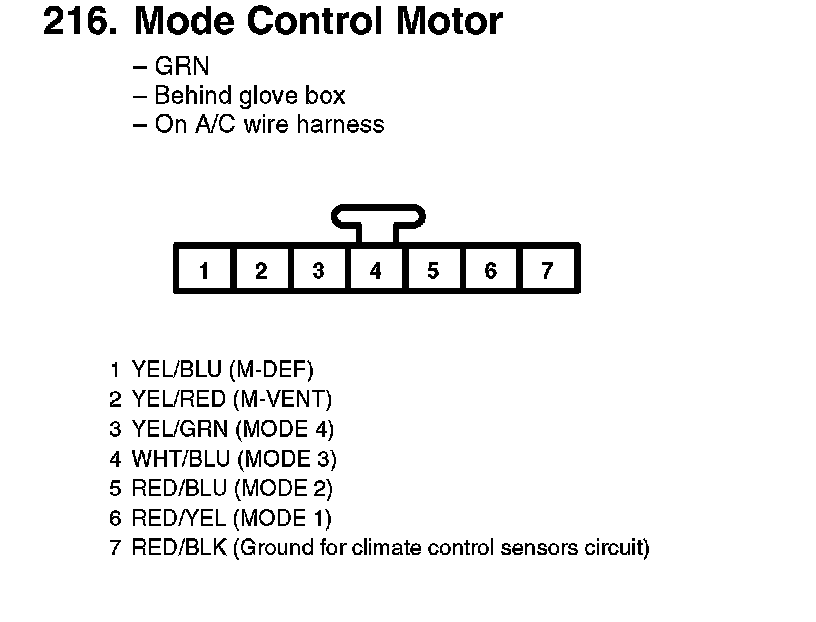

216. Mode Control Motor:

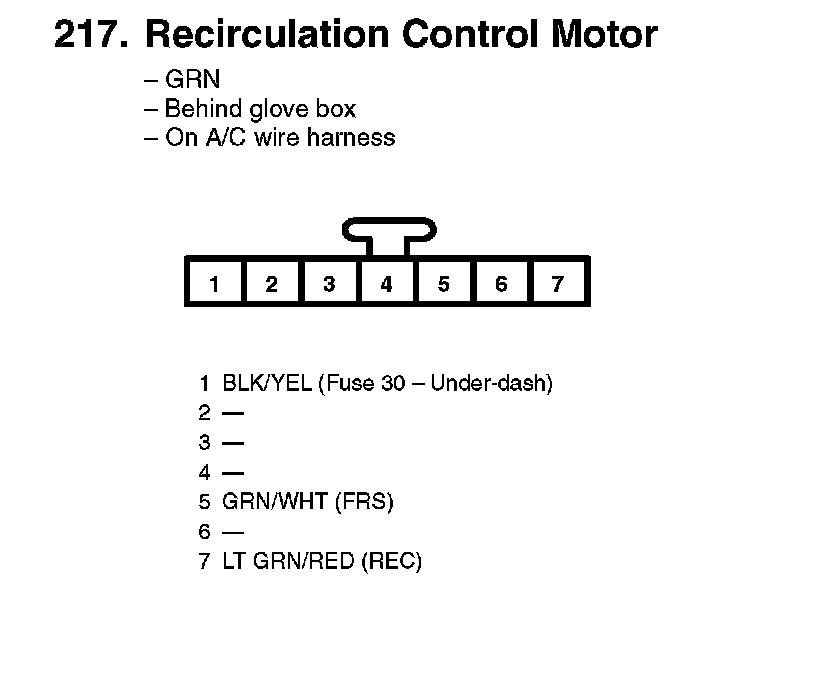

217. Recirculation Control Motor:
