System Diagram

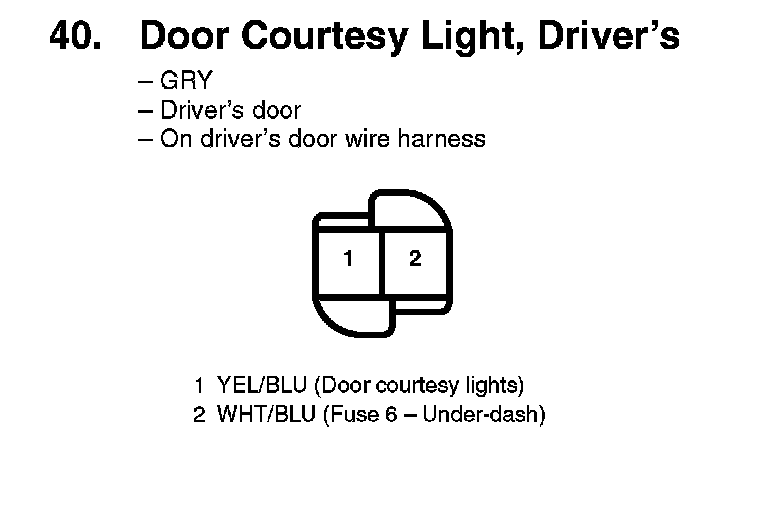

40. Door Courtesy Light, Driver's:



41. Door Courtesy Light, Front Passenger's:

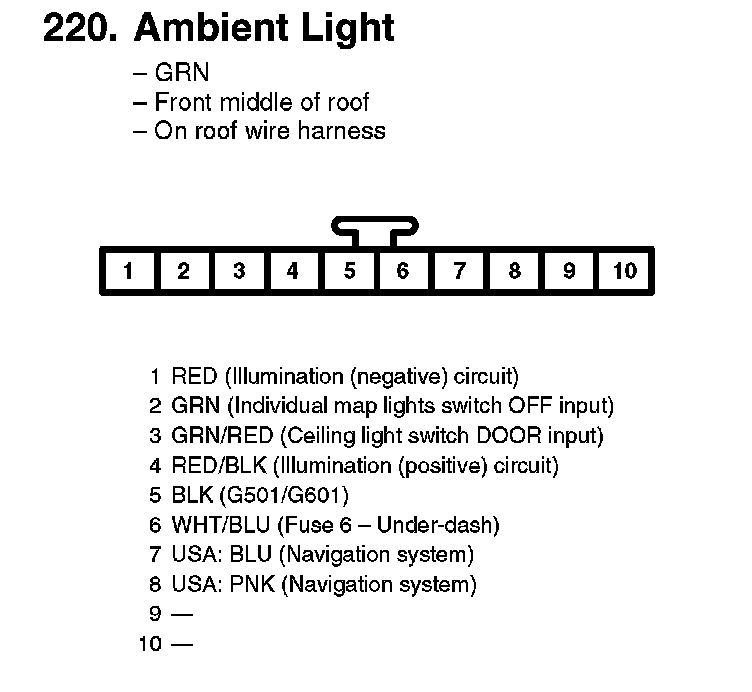

220. Ambient Light:
