Door Switch
Door Switch

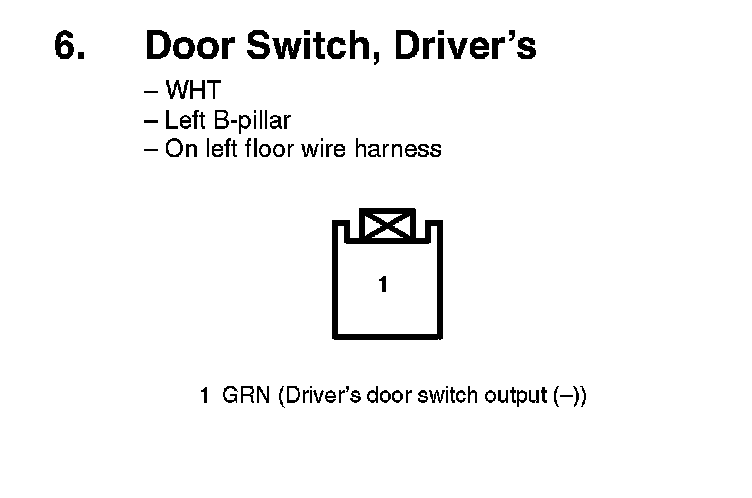

6. Door Switch, Driver's:

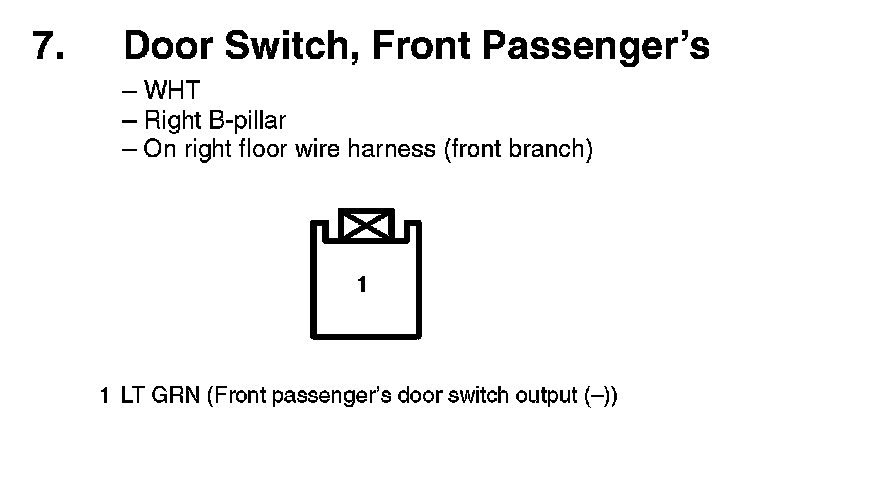

7. Door Switch, Front Passenger's:

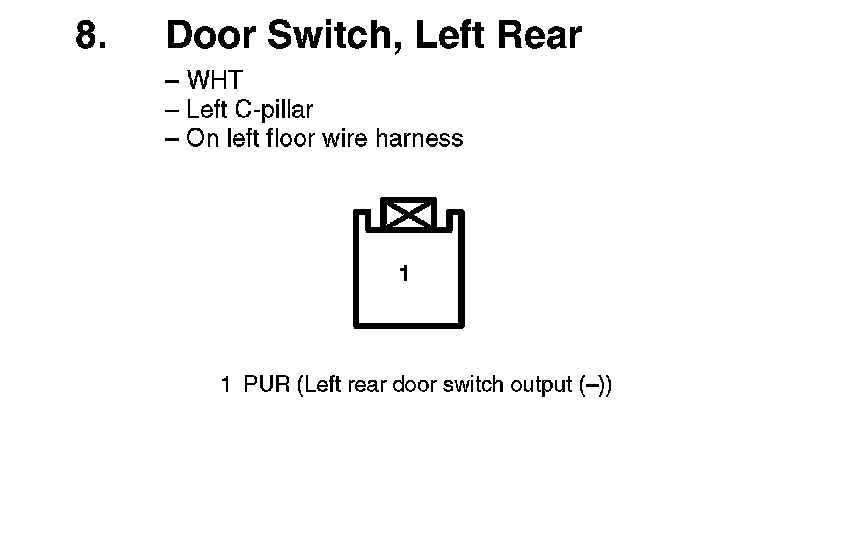

8. Door Switch, Left Rear:

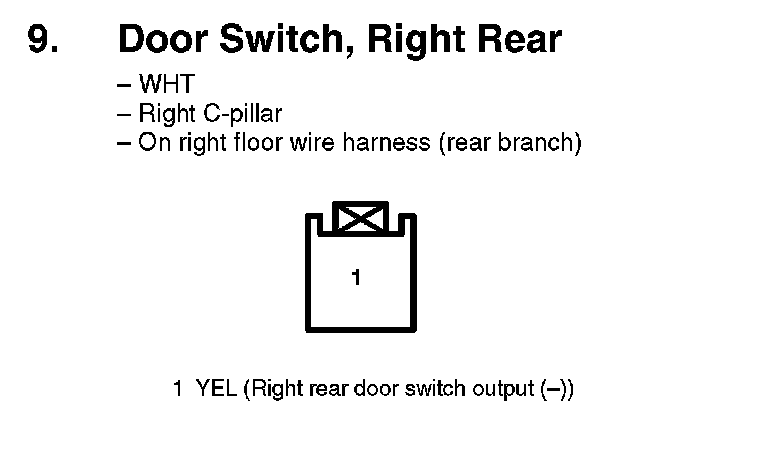

9. Door Switch, Right Rear:
