Engine Mount Control Solenoid

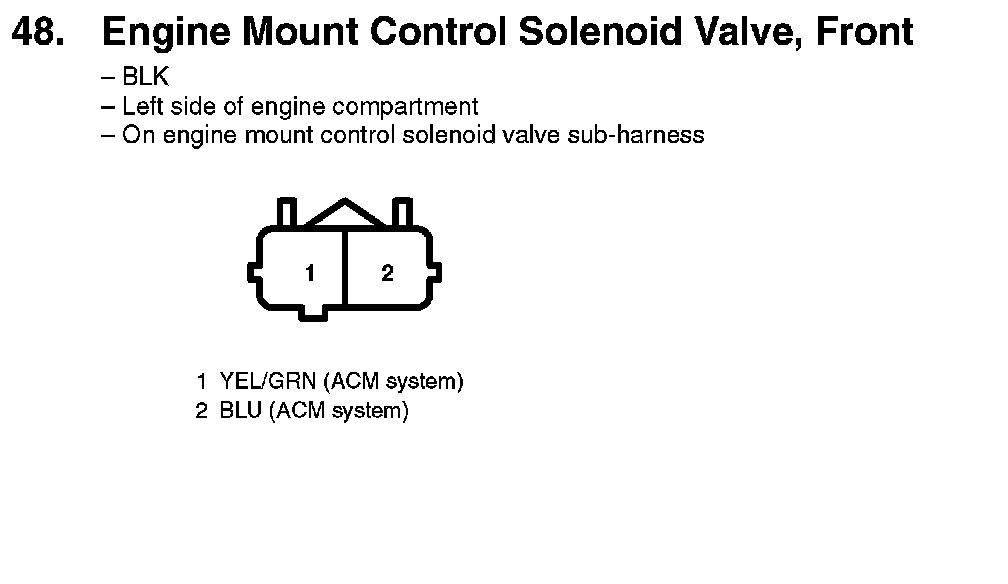

48. Engine Mount Control Solenoid Valve, Front:

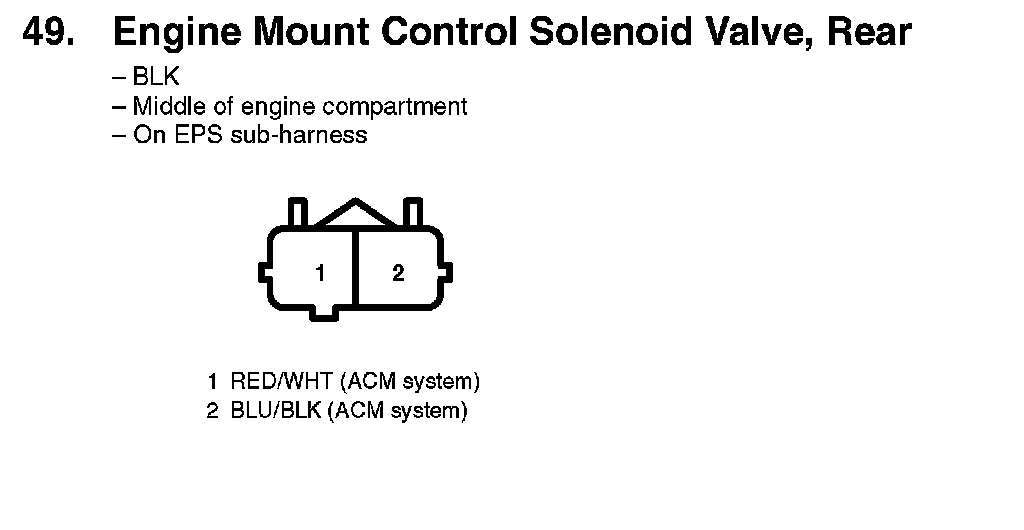

49. Engine Mount Control Solenoid Valve, Rear:
