Impact Sensor

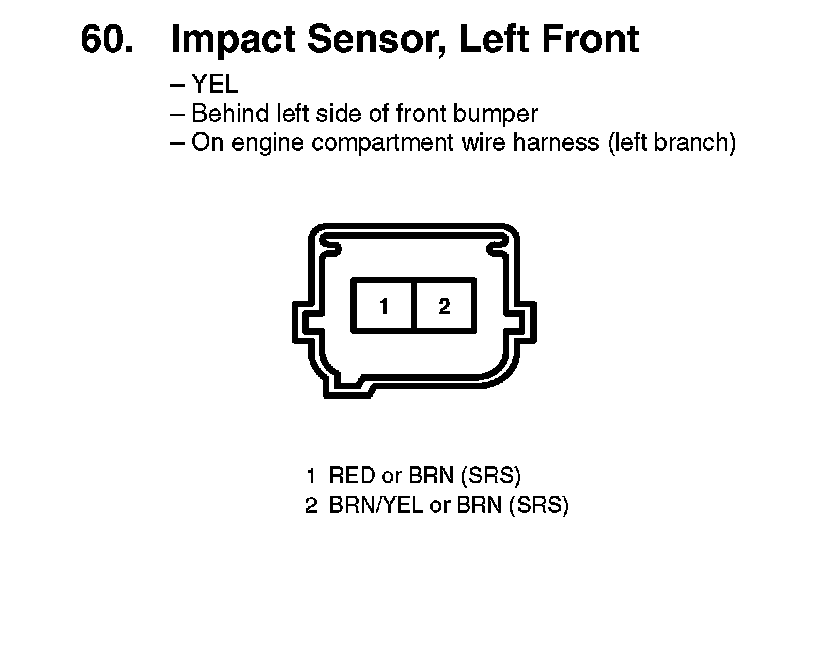

60. Impact Sensor, Left Front:

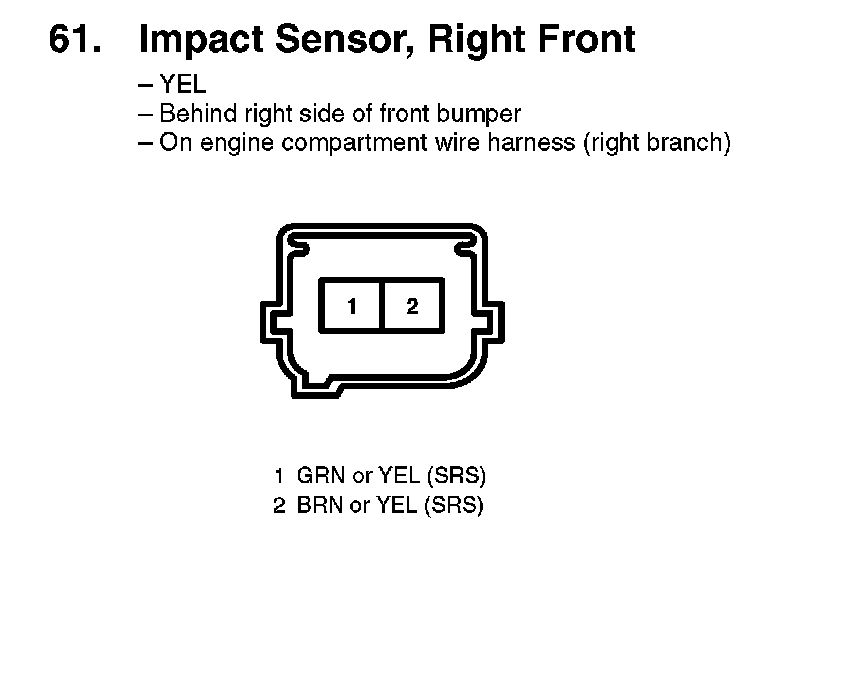

61. Impact Sensor, Right Front:



79. Side Impact Sensor (1st), Left:



80. Side Impact Sensor (1st), Right:

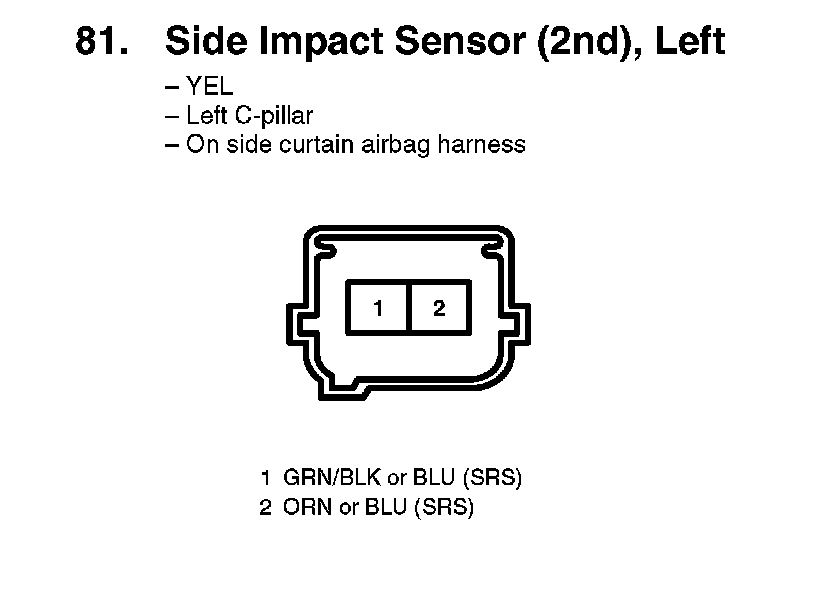

81. Side Impact Sensor (2nd), Left:



82. Side Impact Sensor (2nd), Right:
