System Diagram

238. Power Mirror, Left:

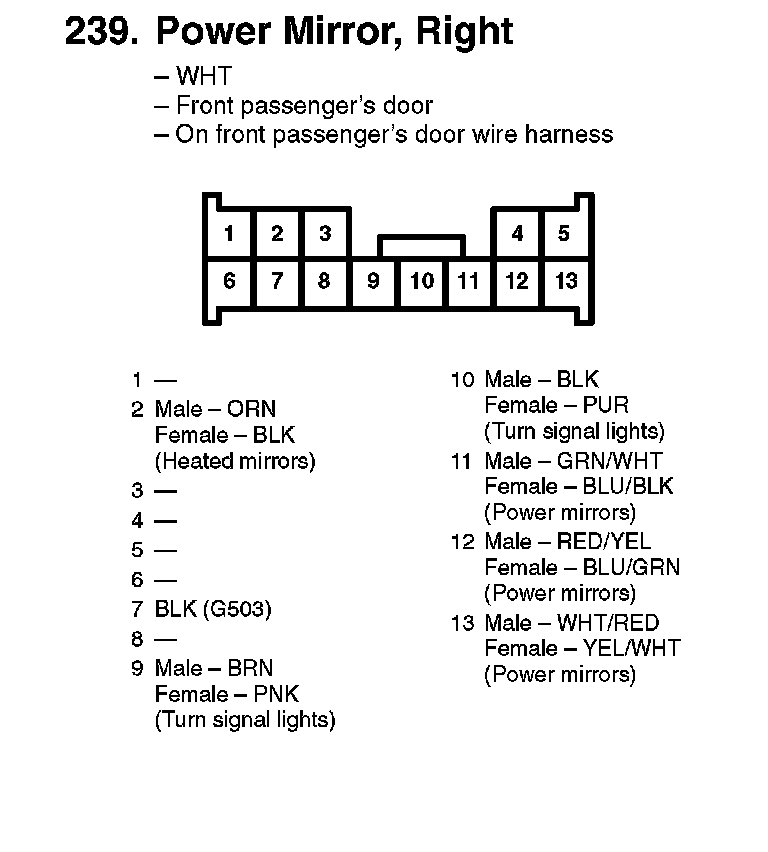

239. Power Mirror, Right:

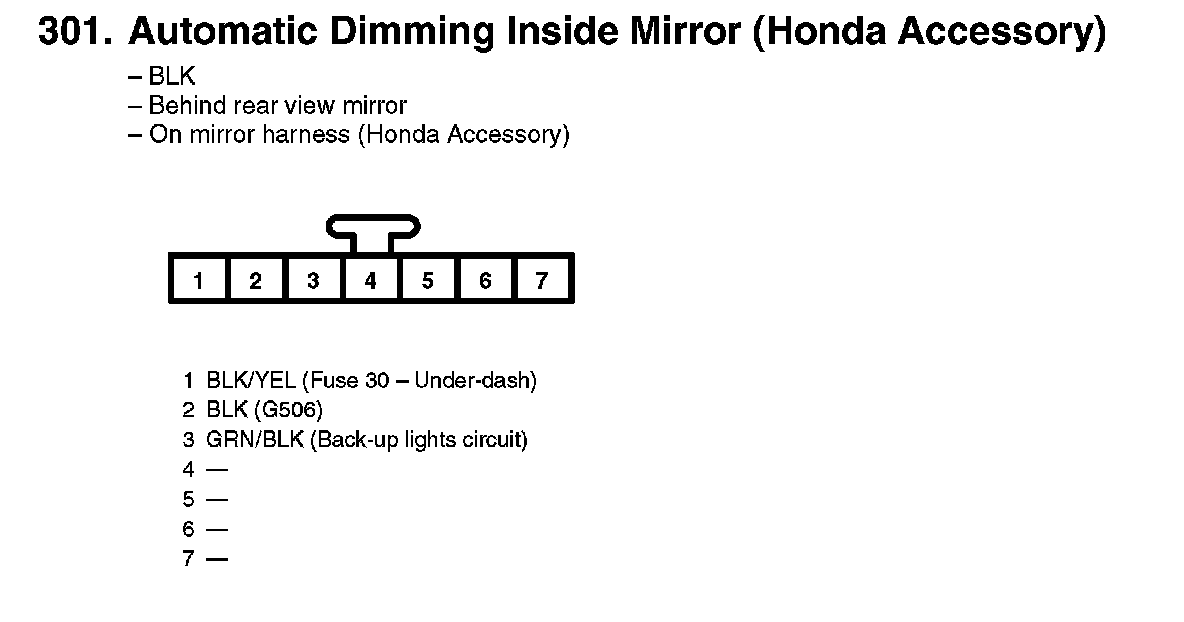

301. Automatic Dimming Inside Mirror (Honda Accessory):
