Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
Accord V6-3.0L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

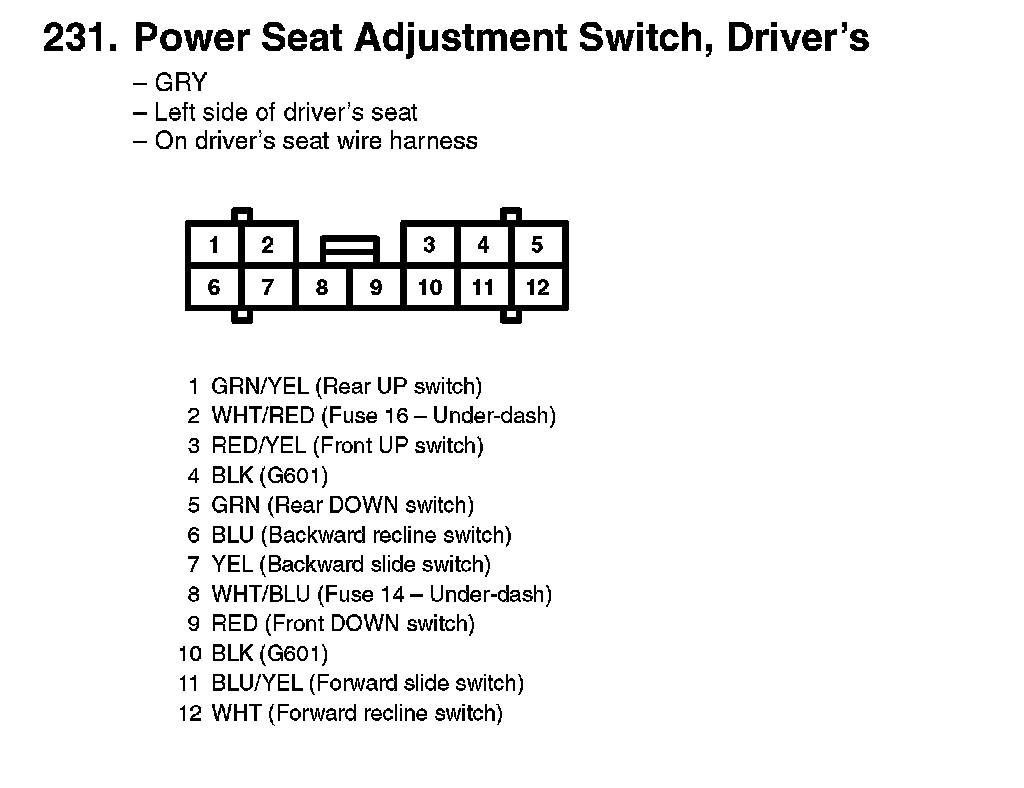

231. Power Seat Adjustment Switch, Driver's:
